Bosch CSB 550-2 combi 2-sp.impact drill-e: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CSB 550-2: 47 positions on 1 sheet

Bosch CSB 550-2 parts list (1 sheet)

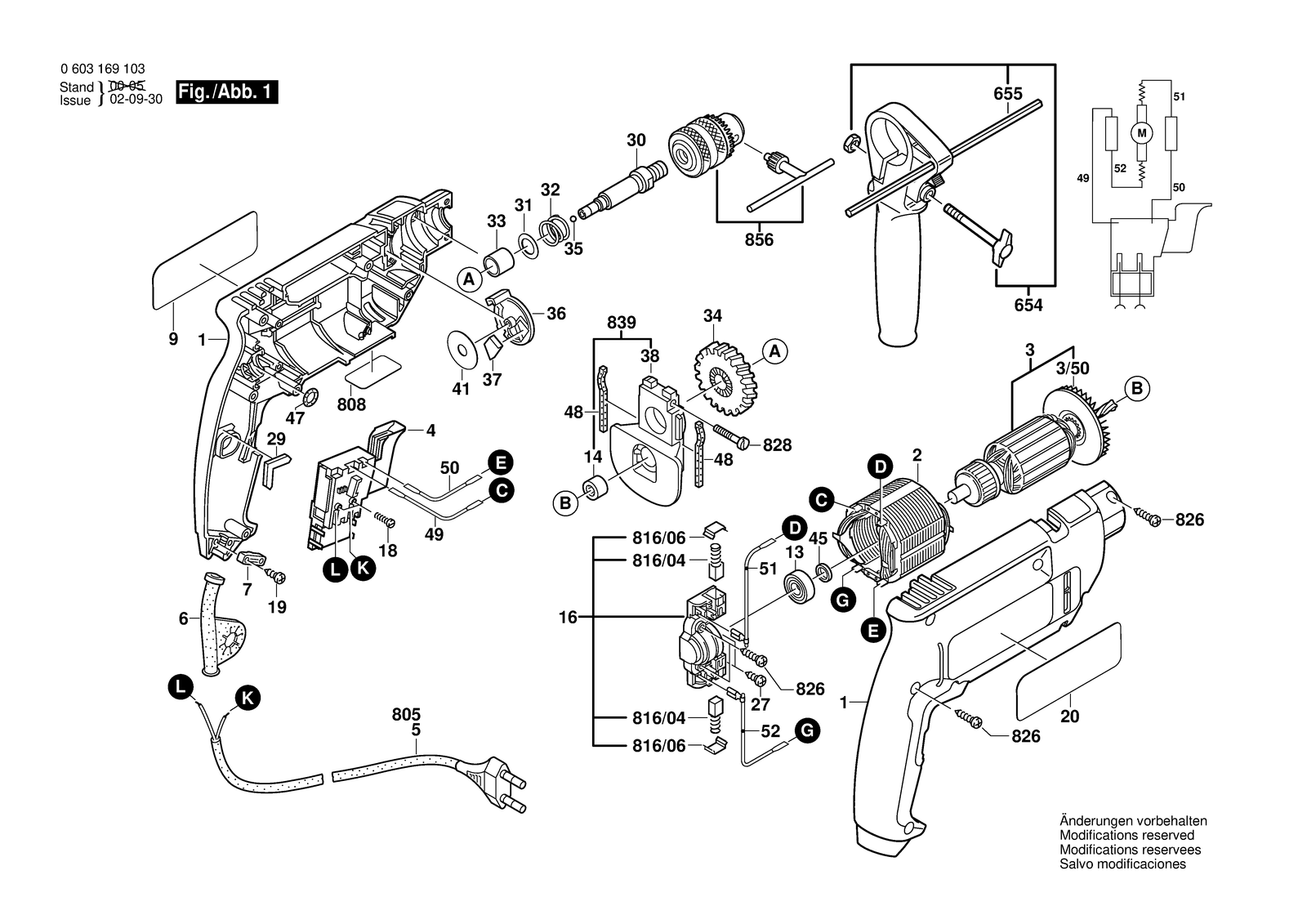

Bosch CSB 550-2 parts diagram, sheet 1
No.Part numberPart name
12605104540Housing Section Green
132600905032Ball Bearing 7X19X6
142600914019Needle bearing
162609992617Brush Plate
162609992618Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
22604220562Field 220-240V
202601118668Reference Plate Shadow Side
202601118936Reference Plate Shadow Side
272610611007Tapping Screw
292601022000Damping Plate
32604011085Armature 230V
3/502606610029Fan
302609110126Drilling Spindle
312600100692Shim 0,2 MM
322604617006Compression Spring
332600301028Sintered-Metal Bushing
342606320060Cylindrical Gear
351903230010Ball DIN 5401-5,5MM-III-ST
362601990001Indexing Disk Black
372601074003Pressure Plate
382609110369Bearing Bracket
42607200373Switch
412600100066Plain Washer
452600209012Spacer Ring
471900210000O-Ring 5,0X1,5 MM
482601005011Felt Strip
492604448136Connecting Cable White L=133 MM
51604460262Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
51614460072Power supply cord
502604448129Connecting Cable Black L=83 MM
512604448123Connecting Cable White L=73 MM
522604448130Connecting Cable White L=88 MM
62600707059Grommet Ø6,9 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
72601035001Cable Clip
808160111A3H3Nameplate
816/042604321905Carbon-Brush Set
816/062601322017Ratchet Cap
8262912401020Tapping Screw DIN 7981-3,9X19-C-Z-ST
8282910021134Socket head cap screw DIN 84-BM4X30-8.8
8392609110370Bushing
8562608571076Chuck
92609130301Manufacturer's nameplate
92609130302Manufacturer's nameplate
