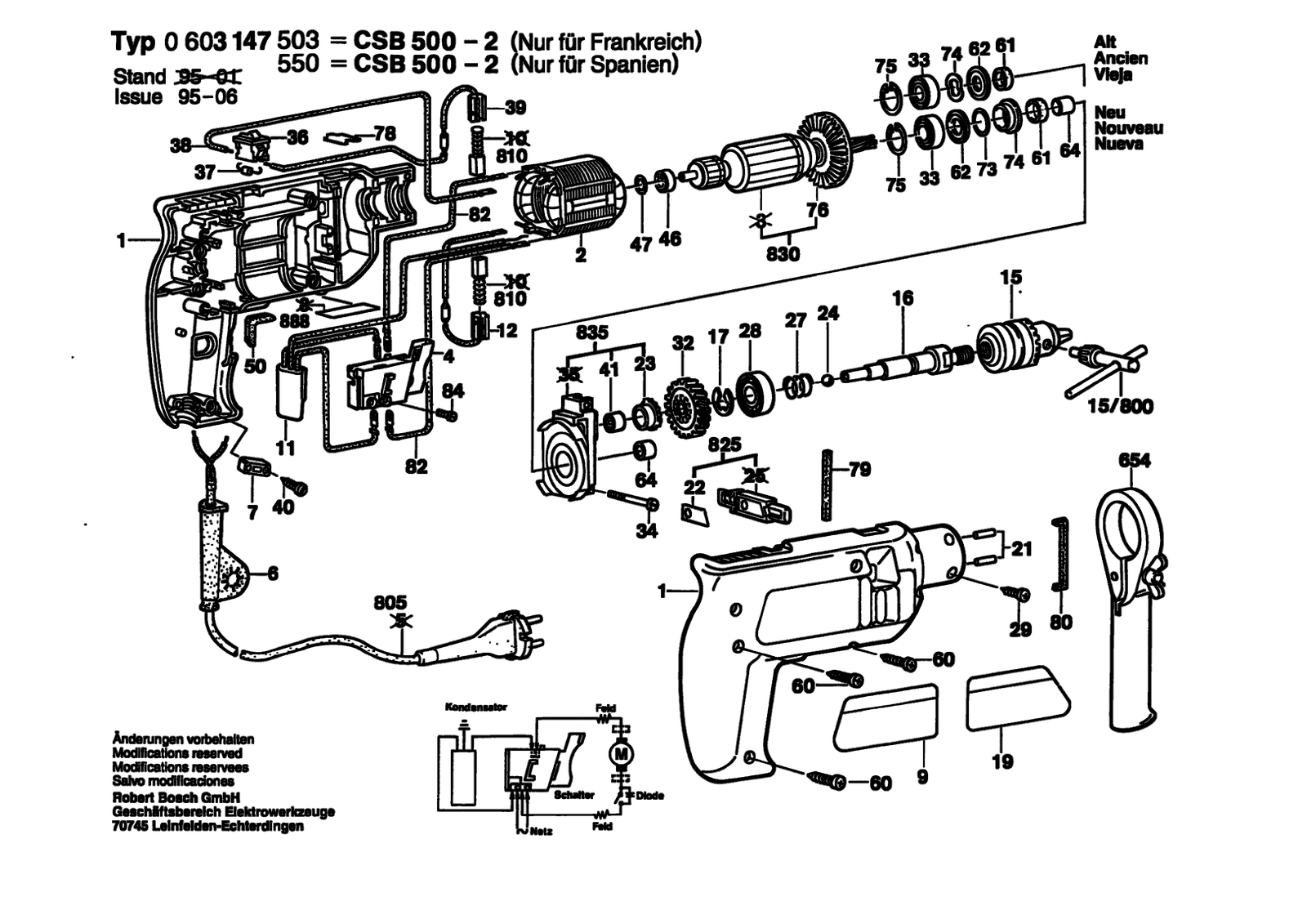

Bosch CSB 500-2 combi 1-sp.impact drill e: exploded parts diagram, 1 sheet, 102 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CSB 500-2: 102 positions on 1 sheet
Bosch CSB 500-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104993 | Housing Section Green |
| 1 | 2605104251 | Motor Housing Red |
| 11 | 2607329095 | Suppression Capacitor |
| 11 | 2607329095 | Suppression Capacitor |
| 12 | 2604465054 | Suppression Filter |
| 12 | 2604465054 | Suppression Filter |
| 15 | 1608571054 | Key Chuck Ø1-10 Mm, 1/2"-24UNF |
| 15 | 1608571054 | Key Chuck Ø1-10 Mm, 1/2"-24UNF |
| 15/800 | 2607950007 | Chuck Wrench SG2 |
| 15/800 | 2607950007 | Chuck Wrench SG2 |
| 16 | 2606135000 | Drilling Spindle 1/2"-UNF-2 |
| 16 | 2606135000 | Drilling Spindle 1/2"-UNF-2 |
| 17 | 2600118001 | Locking washer 0,6 MM |
| 17 | 2600118002 | Locking washer 0,8 MM |
| 17 | 2600118003 | Locking washer 1,0 MM |
| 17 | 2600118006 | Locking washer 0,3 MM |
| 17 | 2600118001 | Locking washer 0,6 MM |
| 17 | 2600118002 | Locking washer 0,8 MM |
| 17 | 2600118003 | Locking washer 1,0 MM |
| 17 | 2600118006 | Locking washer 0,3 MM |
| 19 | 2601110388 | Sticker Sunny Side |
| 19 | 2601110388 | Sticker Sunny Side |
| 2 | 2604220411 | Field 240V |
| 2 | 2604220411 | Field 240V |
| 21 | 1900210129 | O-Ring 28X3 MM |
| 21 | 1900210129 | O-Ring 28X3 MM |
| 22 | 2607001039 | Modification Set |
| 22 | 2607001039 | Modification Set |
| 23 | 2606490040 | Catch Disk |
| 23 | 2606490040 | Catch Disk |
| 24 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 24 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 27 | 2604617000 | Compression Spring |
| 27 | 2604617000 | Compression Spring |
| 28 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 28 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 29 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 29 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 32 | 2606320035 | Cylindrical Gear Z=40 |
| 32 | 2606320035 | Cylindrical Gear Z=40 |
| 33 | 2600905021 | Groove ball bearing 9X24X7 |
| 33 | 2600905021 | Groove ball bearing 9X24X7 |
| 34 | 2910021134 | Socket head cap screw DIN 84-BM4X30-8.8 |
| 34 | 2910021134 | Socket head cap screw DIN 84-BM4X30-8.8 |
| 36 | 2607200039 | Change-Over Switch |
| 36 | 2607200039 | Change-Over Switch |
| 37 | 2607320007 | Silicon Diode |
| 37 | 2607320007 | Silicon Diode |
| 38 | 2604448002 | Connecting Cable |
| 38 | 2604448002 | Connecting Cable |
| 39 | 2604465069 | Suppressor Box |
| 39 | 2604465069 | Suppressor Box |
| 4 | 2607200084 | Switch |
| 4 | 2607200084 | Switch |
| 40 | 2603490022 | Screw 4X16 |
| 40 | 2603490022 | Screw 4X16 |
| 41 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 41 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 46 | 2600420900 | Bushing |
| 46 | 2600420900 | Bushing |
| 47 | 1900210012 | O-Ring 15X2 MM |
| 47 | 1900210012 | O-Ring 15X2 MM |
| 50 | 2601022000 | Damping Plate |
| 50 | 2601022000 | Damping Plate |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 60 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 60 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 61 | 2600108009 | Felt Washer |
| 61 | 2600108009 | Felt Washer |
| 62 | 2600500002 | Cupped Washer |
| 62 | 2600500002 | Cupped Washer |
| 64 | 2600400011 | Clamp Bushing |
| 64 | 2600400011 | Clamp Bushing |
| 654 | 2602025032 | Auxiliary Handle Black Ø43 MM |
| 654 | 2602025032 | Auxiliary Handle Black Ø43 MM |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 73 | 1900210017 | O-Ring 18X3 MM |
| 73 | 1900210017 | O-Ring 18X3 MM |
| 74 | 2600220014 | Backup ring |
| 74 | 2600220014 | Backup ring |
| 75 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 75 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 76 | 2606610047 | Component |
| 76 | 2606610047 | Component |
| 79 | 2601005006 | Felt Strip 51 MM |
| 79 | 2601005006 | Felt Strip 51 MM |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 810 | 2604321905 | Carbon-Brush Set |
| 810 | 2604321905 | Carbon-Brush Set |
| 82 | 2604448000 | Connecting Cable White L=154 MM |
| 82 | 2604448000 | Connecting Cable White L=154 MM |
| 830 | 2604010907 | Armature 230V |
| 830 | 2604010907 | Armature 230V |
| 835 | 2605807913 | Bearing Bracket |
| 835 | 2605807913 | Bearing Bracket |
| 84 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 84 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 9 | 2601110449 | Sticker |
| 9 | 2601110449 | Sticker |
