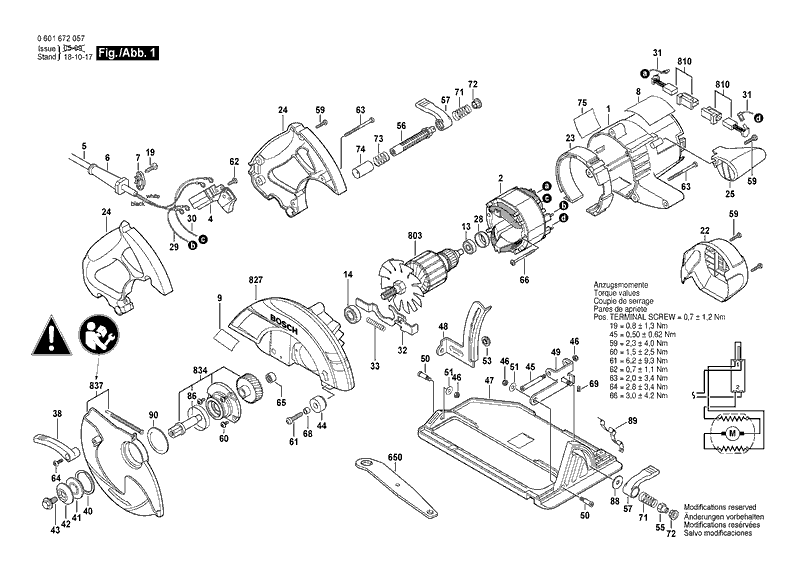

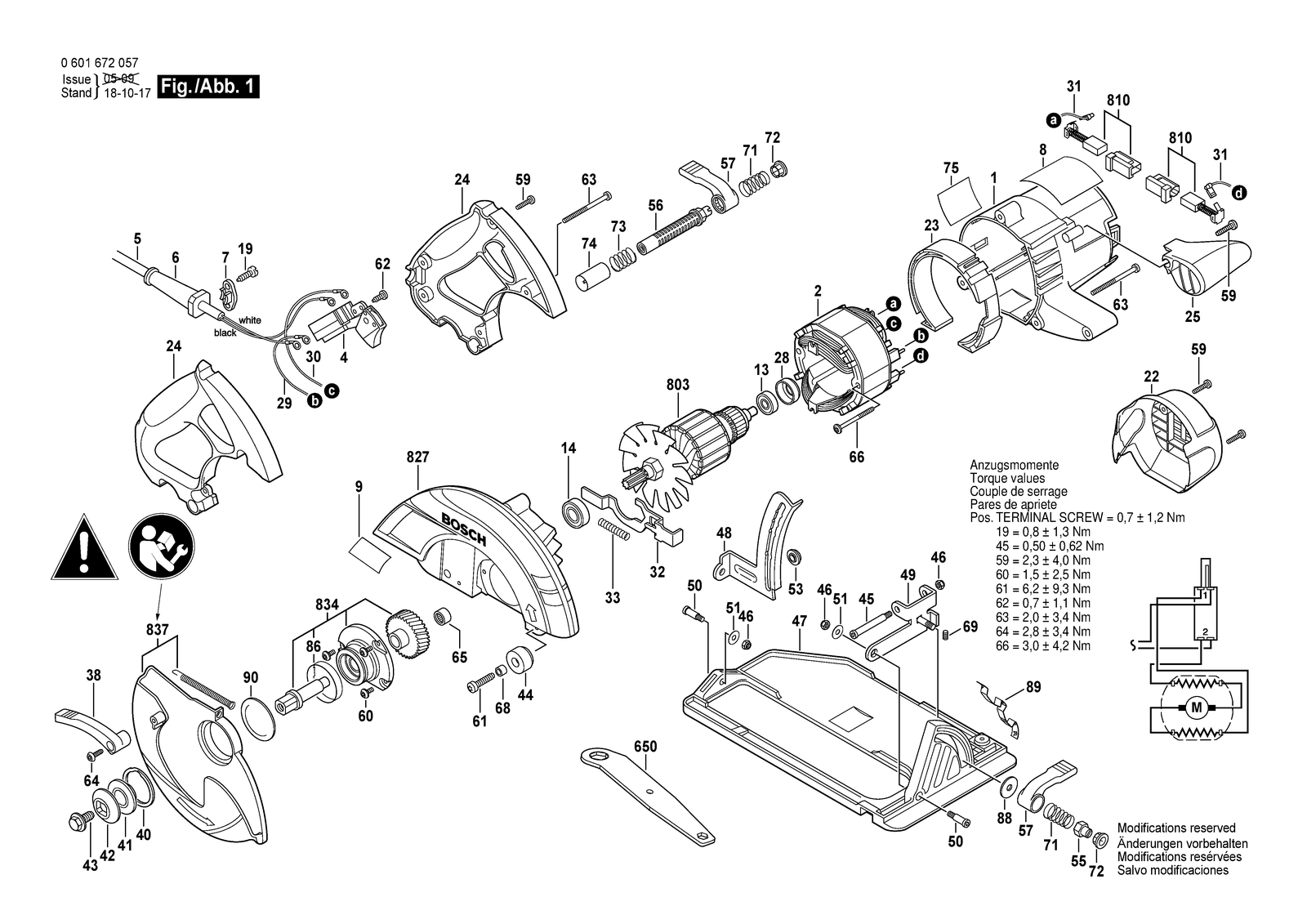

Bosch CS10 un-hd port. circular saw: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CS10: 63 positions on 1 sheet
Bosch CS10 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610917049 | Motor Housing Blue |
| 13 | 2610017348 | Groove ball bearing |
| 14 | 2610350311 | Groove ball bearing |
| 19 | 1619X00504 | Screw |
| 2 | 1619P01570 | Field 120V |
| 22 | 2610917052 | Sealing cap Black |
| 23 | 2610924448 | Baffle |
| 24 | 2610917061 | Handle |
| 25 | 2610924143 | Auxiliary Handle Black |
| 28 | 1619P01127 | Rubber Ring |
| 29 | 2610038934 | Cable |
| 30 | 2610038935 | Cable |
| 31 | 2610918148 | Cable |
| 32 | 2610937399 | Locking Bolt |
| 33 | 1619P01642 | Compression Spring |
| 38 | 2610917405 | Lever |
| 4 | 2610919466 | Switch |
| 40 | 2610921144 | Retaining snap ring |
| 41 | 2610919164 | Clamping-Flange |
| 42 | 1619X00934 | Washer |
| 43 | 1619X00935 | Hex Screw |
| 44 | 2610918151 | Bumper |
| 45 | 2610917400 | Shoulder Screw |
| 46 | 2610904165 | Self-locking nut |
| 47 | 2610917059 | Base Plate |
| 48 | 2610917189 | Support bracket |
| 49 | 2610924350 | Hinge |
| 5 | 2610920507 | Power supply cord |
| 50 | 2610917399 | Shoulder Screw |
| 51 | 2610917048 | Washer |
| 53 | 2610919165 | Special Washer |
| 55 | 2610917206 | Nut |
| 56 | 2610917191 | Rod |
| 57 | 2610924368 | Lever |
| 59 | 1619P01505 | Screw |
| 6 | 1619X08308 | Grommet |
| 60 | 1619X07057 | Contact Screw |
| 61 | 2610920385 | Screw |
| 62 | 2610346204 | Dummy |
| 63 | 2610925864 | Screw |
| 64 | 1619X06749 | Screw |
| 65 | 2610020639 | Needle-Roller Bearing |
| 650 | 2610916002 | Adjusting Wrench |
| 66 | 1619P01508 | Screw |
| 68 | 2610918985 | Spacer Tube |
| 69 | 2610911889 | Set screw |
| 7 | 2610993191 | Cable Clip |
| 71 | 1619X01792 | Spring Black |
| 72 | 1619P17212 | Cover |
| 73 | 2610919467 | Spring |
| 74 | 2610919327 | Cover Sleeve |
| 75 | 2610919562 | Warning Label |
| 8 | 2610935242 | Nameplate |
| 803 | 2610920045 | Dummy 110V |
| 810 | 1619X01695 | Carbon-Brush Set |
| 827 | 2610934339 | Upper guard |
| 834 | 2610920048 | Gear |
| 837 | 1619P14442 | Lower guard |
| 86 | 2610920799 | Cover Sleeve |
| 88 | 1619X00942 | Washer |
| 89 | 2610921770 | Stop Spring |
| 9 | 2610918142 | Manufacturer's nameplate |
| 90 | 1619X01766 | Wear Plate |
