Bosch CRS180

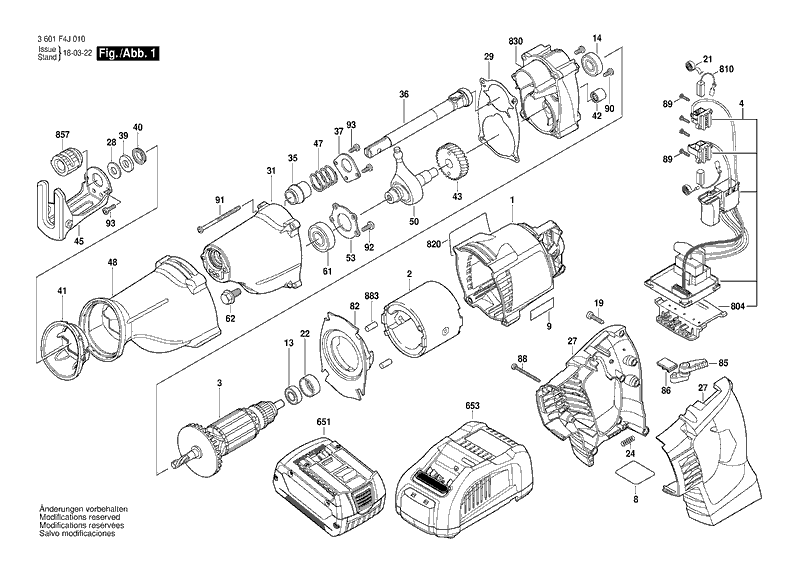

Bosch CRS180 cordl reciprocating saw: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CRS180: 51 positions on 1 sheet
Bosch CRS180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610943009 | Motor Housing Blue |
| 13 | 1619P01511 | Ball Bearing |
| 14 | 1900905173 | Groove ball bearing 6000-2RS DIN 625 |
| 19 | 2610315386 | Screw ST3,9X19 |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 21 | 1619P14306 | Spiral Spring |
| 22 | 1619P01127 | Rubber Ring |
| 24 | 2604690055 | Compression Spring |
| 27 | 2610956663 | Set Of Handles Blue |
| 28 | 2610908804 | Protective Washer |
| 29 | 2610934995 | Mat seal |
| 3 | 2610957808 | Armature 18V |
| 31 | 2610935103 | Front Housing |
| 35 | 2610934999 | Sintered-Metal Bushing |
| 36 | 2610944393 | Spindle Assembly |
| 37 | 2610935431 | Spring Retaining Plate |
| 39 | 2610030004 | Felt Washer SP 14,0 |
| 4 | 1607233336 | Electronics Module |
| 40 | 2610995815 | Shaft Seal |
| 41 | 2610935004 | Plastic Collar |
| 42 | 2610908698 | Bearing Shell |
| 43 | 2610942118 | Conversion Gear |
| 45 | 2610935005 | Supporting foot |
| 47 | 2610937437 | Compression Spring |
| 48 | 2610935008 | Insulating Sleeve |
| 50 | 2610938887 | Wobble Plate |
| 53 | 2610935010 | Retaining Plate |
| 61 | 1900905162 | Groove ball bearing 15X32X9 |
| 62 | 2610918051 | Trunnion |
| 651 | 1607A350BM | Battery Pack BAT612 18V 2.0AH LI Scm |
| 651 | 1607A350MB | Battery Pack |
| 651 | 2607336819 | Battery Pack Usa BAT620 18V 4,0AH |
| 653 | 2607225927 | Charger Usa BC 1880 CV 13,3-18V/120V |
| 653 | 2607226287 | Charger US GAL 18V-20 120V / 2A |
| 8 | 2610956937 | Nameplate |
| 804 | 1609280478 | Contact retainer |
| 810 | 2610943623 | Carbon-Brush Set |
| 82 | 2610935014 | Baffle |
| 820 | 2610003217 | Warning Label |
| 830 | 2610945335 | Bearing Plate |
| 85 | 2610956664 | Selector Switch |
| 857 | 2610920684 | Toolholder |
| 86 | 2610956683 | Sliding Plate |
| 88 | 1619P01446 | Screw |
| 883 | 3602391503 | Rubber Buffer |
| 89 | 1619P06252 | Torx Oval-Head Screw |
| 9 | 2610013769 | Manufacturer's nameplate Lithium-Ion |
| 90 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 91 | 1619P01932 | Screw Black |
| 92 | 1619P01447 | Screw |
| 93 | 1619P01931 | Screw Black |
