All parts of Makita CL106FD: 22 positions on 1 sheet

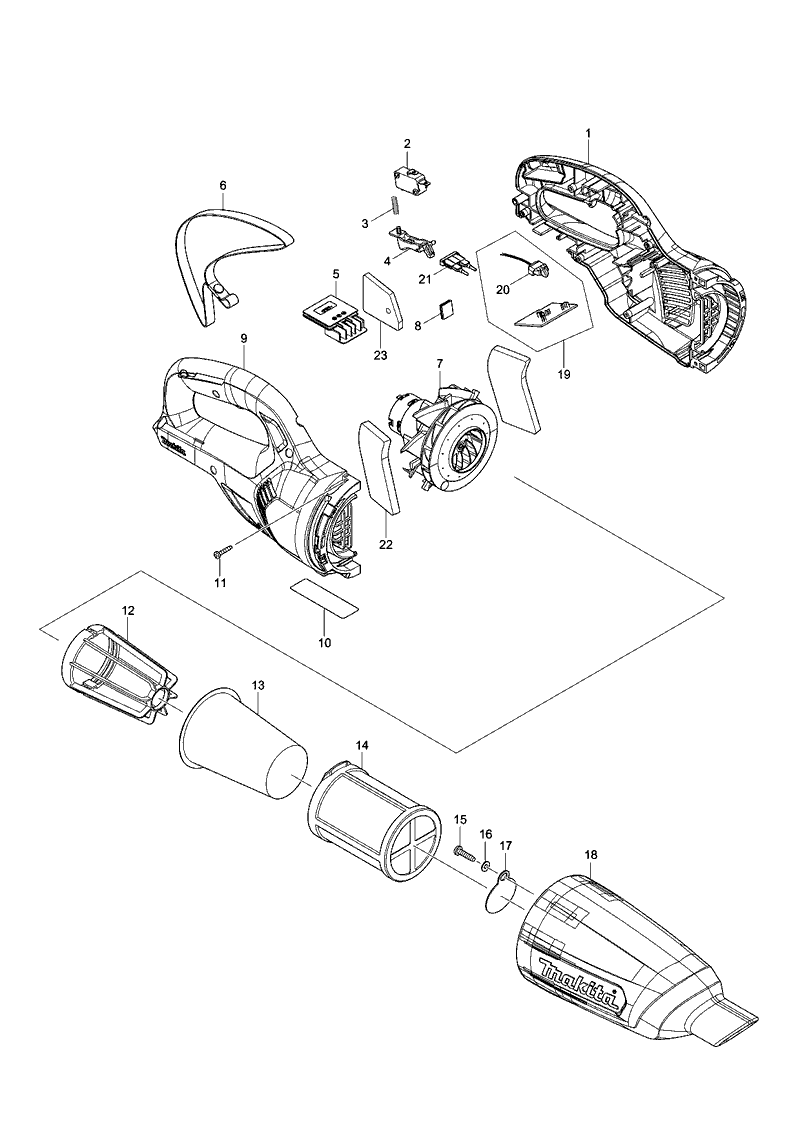

Sheet 1: Makita CL106FD parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183E86-0 | Makita 183E86-0 HOUSING SET, CL106FD (WHITE) |
| 2 | 650744-8 | Makita 650744-8 SWITCH |
| 3 | 231473-8 | Makita 231473-8 COMPRESSION SPRING 4, MNH352 |
| 4 | 455743-3 | Makita 455743-3 SWITCH LEVER, CL106FD |
| 5 | 644813-5 | Makita 644813-5 Terminal |
| 6 | ||
| 7 | 123849-2 | Makita 123849-2 MOTOR ASSEMBLY CL106FD |
| 8 | 424248-4 | Makita 424248-4 SPONGE, CL140FD |
| 9 | 183E86-0 | Makita 183E86-0 HOUSING SET, CL106FD (WHITE) |
| 10 | 852S17-1 | |
| 11 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 12 | 410237-5 | Makita 410237-5 Stay CL140FD |
| 13 | 443060-3 | Makita 443060-3 Filter for BCL140 BCL180 LC012 |
| 14 | 451208-3 | Makita 451208-3 Pre Filter for BCL140 BCL180 DCL180ZB, CL106FDZW |
| 15 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 16 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 17 | 424208-6 | Makita 424208-6 VALVE, CL140FD |
| 18 | 457145-9 | Makita 457145-9 CAPSULE, CL106FD (WHITE) |
| 20 | 620601-4 | Makita 620601-4 LED CIRCUIT |
| 21 | 632H63-2 | Makita 632H63-2 FUSE UNIT CL106FD |
| 22 | 424913-5 | Makita 424913-5 SPONGE SHEET, CL106FD |
| 23 | 422150-5 | Makita 422150-5 SPONGE SHEET 38-43 CL106FD |
