Makita CL102D
Makita CL102D: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita CL102D: 26 positions on 1 sheet

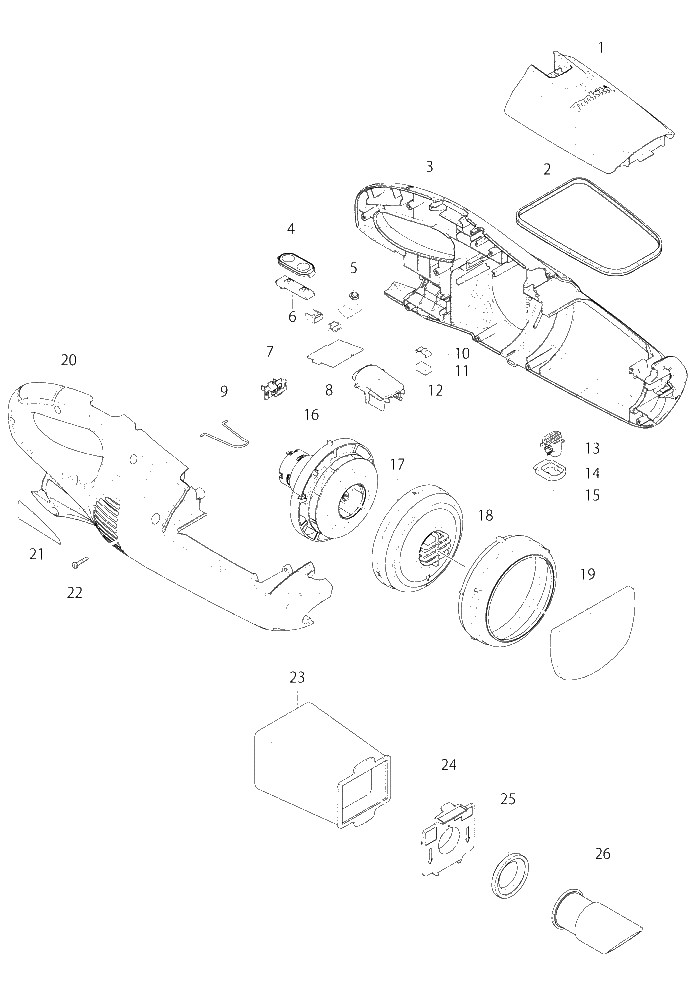

Sheet 1: Makita CL102D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 452360-0 | |
| 2 | 424093-7 | Makita 424093-7 SEAL, 4075D |
| 3 | 187000-8 | |
| 4 | 140463-9 | Makita 140463-9 SWITCH PLATE COMPLETE, CL141FD |
| 5 | 450522-4 | Makita 450522-4 LENS, 4075D |
| 6 | 631973-2 | Makita 631973-2 SWITCH UNIT, CL141FD |
| 7 | 643817-4 | Makita 643817-4 TERMINAL, DF010D |
| 8 | 638864-8 | |
| 9 | 324885-3 | Makita 324885-3 HANGER, 4075D |
| 10 | 232264-0 | Makita 232264-0 LEAF SPRING |
| 11 | 424367-6 | Makita 424367-6 RUBBER |
| 12 | 452364-2 | |
| 13 | 452362-6 | |
| 14 | 452352-9 | |
| 15 | 233344-5 | Makita 233344-5 COMPRESSION SPRING 4, HR2450 |
| 16 | 125862-6 | |
| 17 | 416030-5 | Makita 416030-5 Fan Cover for 4075D |
| 18 | 424320-2 | Makita 424320-2 RUBBER RING, CL140FD |
| 19 | 424804-0 | Makita 424804-0 SPONGE SHEET 76-110 |
| 20 | 187000-8 | |
| 21 | 868815-9 | |
| 22 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 23 | 166084-9 | Makita 166084-9 Dust Bag for DCL282 DCL182 CL107 4072DW |
| 24 | 141088-2 | Makita 141088-2 VALVE STAY COMPLETE, 4076D |
| 25 | 424094-5 | Makita 424094-5 PACKING, 4075D |
| 26 | 450521-6 | Makita 450521-6 INLET, 4075D |
