Makita CL100D: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita CL100D: 18 positions on 1 sheet

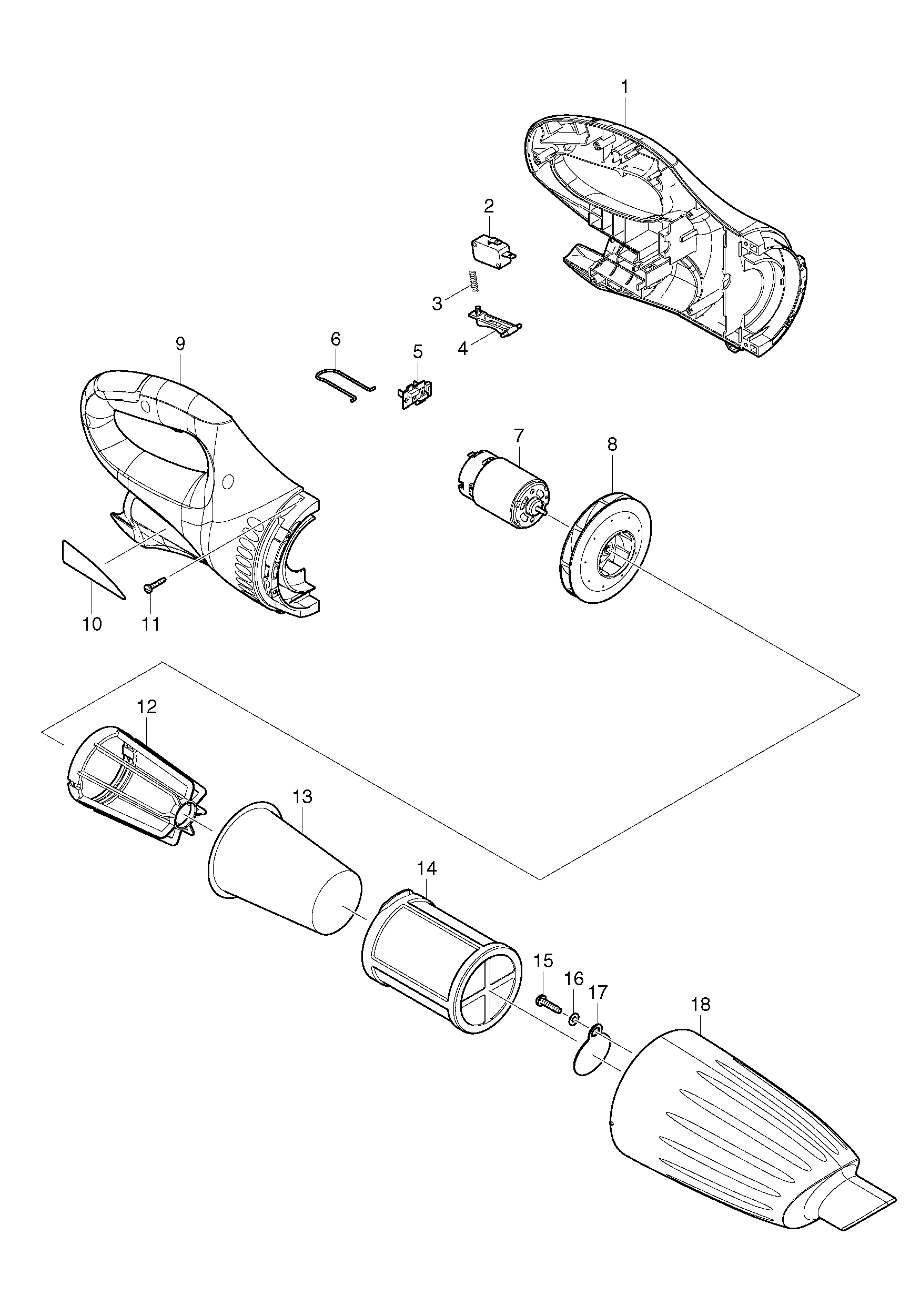

Sheet 1: Makita CL100D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 188688-7 | Makita 188688-7 HOUSING SET, CL100D |
| 2 | 651944-3 | Makita 651944-3 SWITCH DMC-1115-13 |
| 3 | 231473-8 | Makita 231473-8 COMPRESSION SPRING 4, MNH352 |
| 4 | 451210-6 | Makita 451210-6 SWITCH LEVER, CL070D |
| 5 | 643817-4 | Makita 643817-4 TERMINAL, DF010D |
| 6 | 324885-3 | Makita 324885-3 HANGER, 4075D |
| 7 | 629865-7 | Makita 629865-7 Motor for CL100D 10.8V Cordless Vacuum Cleaner |
| 8 | 240102-2 | Makita 240102-2 82 Fan |
| 9 | 188688-7 | Makita 188688-7 HOUSING SET, CL100D |
| 10 | 866700-0 | Makita 866700-0 NAME PLATE, CL100D |
| 11 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 12 | 410237-5 | Makita 410237-5 Stay CL140FD |
| 13 | 443060-3 | Makita 443060-3 Filter for BCL140 BCL180 LC012 |
| 14 | 451208-3 | Makita 451208-3 Pre Filter for BCL140 BCL180 DCL180ZB, CL106FDZW |
| 15 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 16 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 17 | 424208-6 | Makita 424208-6 VALVE, CL140FD |
| 18 | 451207-5 | Makita 451207-5 CAPSULE, CL070D |
