Makita CL003G
Makita CL003G: exploded parts diagram, 1 sheet, 37 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita CL003G: 37 positions on 1 sheet

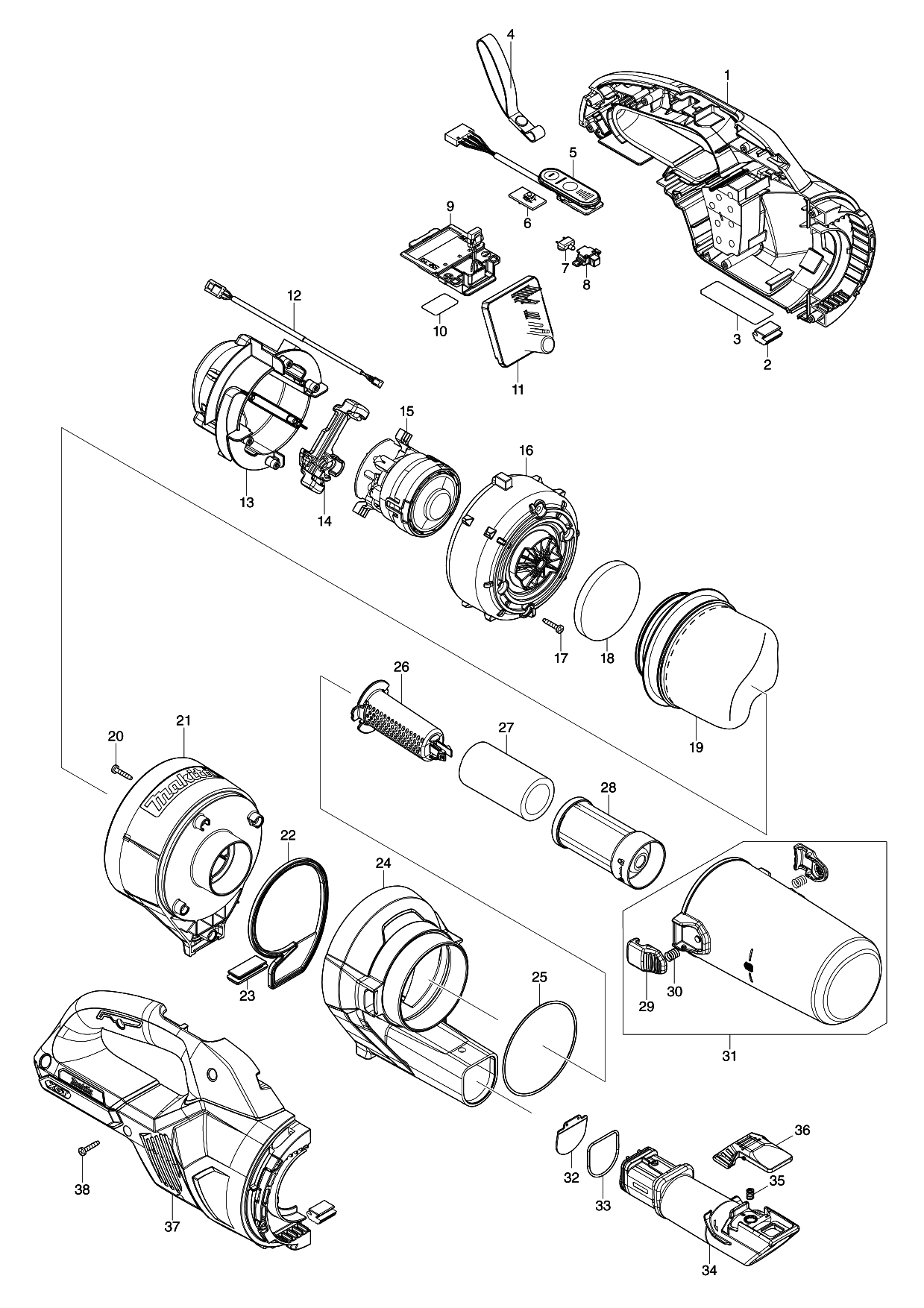

Sheet 1: Makita CL003G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183W54-1 | |
| 2 | 422460-0 | Makita 422460-0 RUBBER PLATE, DCL2807281F/282F |
| 3 | 858F40-6 | |
| 4 | ||
| 5 | 141B54-1 | Makita 141B54-1 INDICATION CIRCUIT COMPLETE |
| 6 | 620E74-1 | Makita 620E74-1 SWITCH UNIT |
| 7 | 620E82-2 | |
| 8 | 141H09-2 | |
| 9 | 632P65-6 | Makita 632P65-6 TERMINAL UNIT |
| 10 | 858F47-2 | |
| 11 | 620E90-3 | Makita 620E90-3 CONTROLLER |
| 12 | 632S32-9 | Makita 632S32-9 LEAD UNIT |
| 13 | 141E55-7 | Makita 141E55-7 MOTOR COVER R COMPLETE |
| 14 | 422723-4 | Makita 422723-4 MOTOR COVER SEAL |
| 15 | 629A46-9 | Makita 629A46-9 MOTOR ASSEMBLY |
| 16 | 413645-9 | Makita 413645-9 MOTOR COVER F |
| 17 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 18 | 422909-0 | |
| 19 | 1910C7-9 | |
| 20 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 21 | 413H34-6 | |
| 22 | 422884-0 | |
| 23 | 422885-8 | |
| 24 | 413H35-4 | |
| 25 | 213884-9 | |
| 26 | 413H21-5 | |
| 27 | 422908-2 | |
| 28 | 413H29-9 | |
| 29 | 459106-5 | |
| 30 | 232460-0 | |
| 32 | 422886-6 | |
| 33 | 213837-8 | Makita 213837-8 O-RING 29, CL003G |
| 34 | 413H36-2 | |
| 35 | 232485-4 | |
| 36 | 413H20-7 | |
| 37 | 183W54-1 | |
| 38 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
