Makita CG100D: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita CG100D: 46 positions on 1 sheet

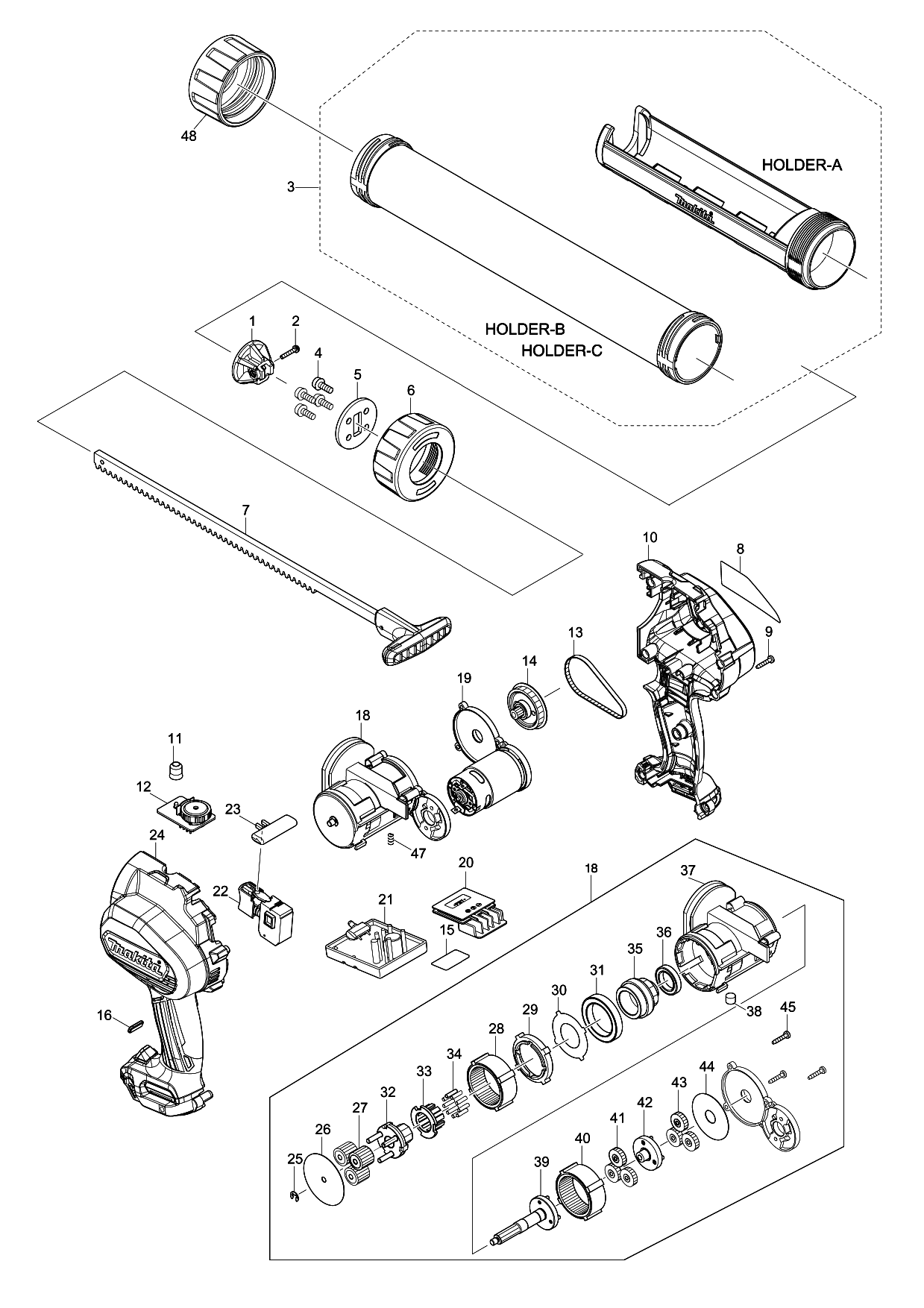

Sheet 1: Makita CG100D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 142071-2 | Makita 142071-2 PISTON A COMPLETE. FOR 310ML CARTRIDGE |
| 2 | 266827-0 | Makita 266827-0 PAN HEAD SCREW M3X18 |
| 3 | 454275-7 | Makita 454275-7 Holder A for DCG140Z, CG100DWAEA |
| 4 | 265074-0 | Makita 265074-0 PAN HEAD SCREW M5X16 |
| 5 | 346649-5 | Makita 346649-5 PLATE |
| 6 | 454223-6 | Makita 454223-6 HOLDER JOINT A |
| 7 | 142041-1 | Makita 142041-1 RACK 42 COMPLETE |
| 8 | 853S37-8 | |
| 9 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 10 | 183H54-1 | Makita 183H54-1 HOUSING SET |
| 11 | 418821-0 | Makita 418821-0 LENS |
| 12 | 620180-2 | Makita 620180-2 SUB CONTROLLER |
| 13 | 225097-0 | Makita 225097-0 SYNCHRO BELT 4-176 |
| 14 | 142038-0 | Makita 142038-0 SPUR GEAR 9A COMPLETE |
| 15 | 853S38-6 | |
| 16 | 454230-9 | Makita 454230-9 LENS |
| 18 | 126253-4 | Makita 126253-4 GEAR ASSEMBLY |
| 19 | 144848-1 | Makita 144848-1 MOTOR COMPLETE |
| 20 | 644813-5 | Makita 644813-5 Terminal |
| 21 | 632K96-5 | Makita 632K96-5 CONTROLLER UNIT |
| 22 | 650632-9 | Makita 650632-9 Switch for BTD133 BTD145 LXDT01 LXGC01ZB |
| 23 | 451162-1 | Makita 451162-1 LOCK LEVER |
| 24 | 183H54-1 | Makita 183H54-1 HOUSING SET |
| 25 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 26 | 267465-1 | Makita 267465-1 FLAT WASHER 5 |
| 27 | 227311-0 | Makita 227311-0 SPUR GEAR 19B |
| 28 | 227309-7 | Makita 227309-7 INTERNAL GEAR 48 |
| 29 | 144375-8 | Makita 144375-8 SPACER COMPLETE |
| 30 | 346721-3 | Makita 346721-3 PLATE 23 |
| 31 | 211294-4 | Makita 211294-4 BALL BEARING 6806LLU, HR2610 |
| 32 | 141860-2 | Makita 141860-2 CARRIER A COMPLETE |
| 33 | 313253-5 | Makita 313253-5 CARRIER B |
| 34 | 256255-7 | Makita 256255-7 PIN 3SWITCH |
| 35 | 227312-8 | Makita 227312-8 SPUR GEAR 10 |
| 36 | 211482-3 | Makita 211482-3 BALL BEARING 6803LLU |
| 37 | 454219-7 | Makita 454219-7 GEAR HOUSING |
| 38 | 313257-7 | Makita 313257-7 MAGNET |
| 39 | 141859-7 | Makita 141859-7 SPUR GEAR 9C COMPLETE |
| 40 | 227309-7 | Makita 227309-7 INTERNAL GEAR 48 |
| 41 | 227310-2 | Makita 227310-2 SPUR GEAR 19A |
| 42 | 141858-9 | Makita 141858-9 SPUR GEAR 9B COMPLETE |
| 43 | 227310-2 | Makita 227310-2 SPUR GEAR 19A |
| 44 | 267466-9 | Makita 267466-9 FLAT WASHER 12 |
| 45 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 47 | 234315-5 | Makita 234315-5 COMPRESSION SPRING 6 |
| 48 | 318958-2 | Makita 318958-2 Holder Joint B Replacement Part |
