Makita CF100D
Makita CF100D: exploded parts diagram, 1 sheet, 37 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita CF100D: 37 positions on 1 sheet

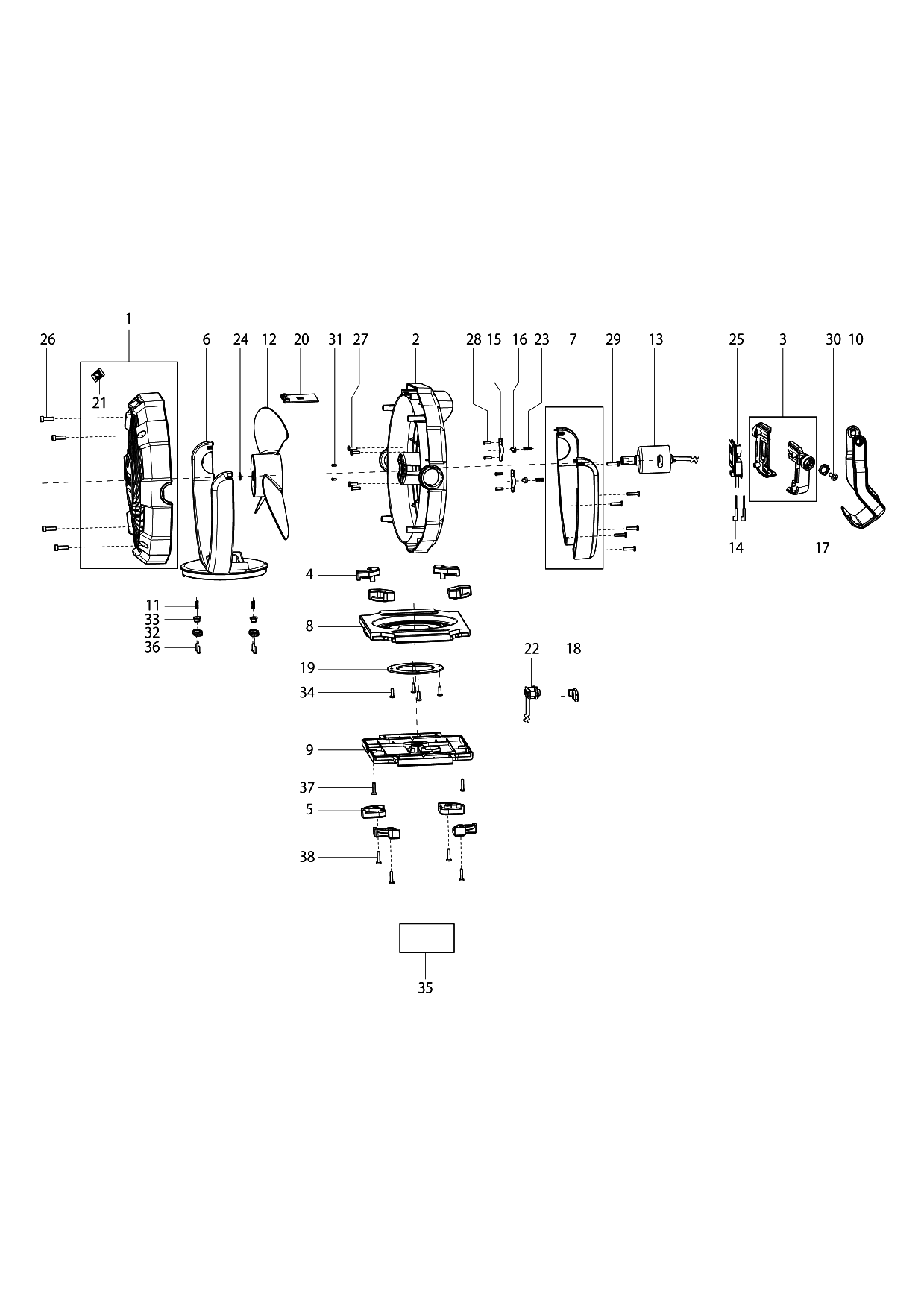

Sheet 1: Makita CF100D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | TE00000178 | Makita TE00000178 BACK COVE BODY*ELECT WIRE L |
| 3 | TE00000179 | Makita TE00000179 THE BATTERY HOUSING(L/ R) |
| 4 | TE00000180 | Makita TE00000180 UP/LOW INSERT OF BTM (SET) |
| 5 | TE00000180 | Makita TE00000180 UP/LOW INSERT OF BTM (SET) |
| 6 | TE00000181 | Makita TE00000181 FRONT COVER OF THE STAND |
| 7 | TE00000182 | Makita TE00000182 BACK COVER OF THE SUPPORT |
| 8 | TE00000183 | Makita TE00000183 UP COVER OF THE BASE |
| 9 | TE00000184 | Makita TE00000184 LOWER COVER OF THE BASE |
| 10 | TE00000185 | Makita TE00000185 HOOK&HANDLE |
| 11 | TE00000197 | Makita TE00000197 SPRING1 |
| 12 | TE00000186 | Makita TE00000186 FAN BLADE |
| 13 | TE00000187 | Makita TE00000187 MOTOR AND LEAD |
| 14 | TE00000188 | Makita TE00000188 LEAD WITH INSERTING PIECE |
| 15 | TE00000189 | Makita TE00000189 SMALL GEAR PRESSING PARTS |
| 16 | TE00000190 | Makita TE00000190 SPARE PARTS FOR POM |
| 17 | TE00000191 | Makita TE00000191 POM?POSITION?PART |
| 18 | TE00000192 | Makita TE00000192 CHARGING SOCKET PLUG |
| 19 | TE00000193 | Makita TE00000193 IRON PARTS FOR SUPPORT |
| 20 | TE00000194 | Makita TE00000194 PCB |
| 21 | TE00000195 | Makita TE00000195 SWITCH LABEL |
| 22 | TE00000196 | Makita TE00000196 FIXED PART OF DC BASE |
| 23 | TE00000198 | Makita TE00000198 SPRING2 |
| 24 | TE00000199 | Makita TE00000199 CIRCLIP |
| 25 | 644813-5 | Makita 644813-5 Terminal |
| 26 | TE00000201 | Makita TE00000201 INNER HEXAGON 4*14 |
| 27 | TE00000202 | Makita TE00000202 SCREW 3*10 |
| 28 | TE00000203 | Makita TE00000203 SELF-TAPPING SCREW 2.5*8 |
| 29 | TE00000204 | Makita TE00000204 SCREW 3*14 |
| 30 | TE00000205 | Makita TE00000205 CROSS BELT PAD SCREW 4*10 |
| 31 | TE00000206 | Makita TE00000206 P.H. SCREW M3*5 |
| 32 | TE00000189 | Makita TE00000189 SMALL GEAR PRESSING PARTS |
| 33 | TE00000190 | Makita TE00000190 SPARE PARTS FOR POM |
| 34 | TE00000202 | Makita TE00000202 SCREW 3*10 |
| 35 | TE00000230 | |
| 36 | TE00000203 | Makita TE00000203 SELF-TAPPING SCREW 2.5*8 |
| 37 | TE00000204 | Makita TE00000204 SCREW 3*14 |
| 38 | TE00000204 | Makita TE00000204 SCREW 3*14 |
