All parts of Makita CE002G: 147 positions on 3 sheets
Sheet 1: Makita CE002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266976-3 | |
| 2 | 224632-1 | |
| 3 | 922232-8 | Makita 922232-8 HEX. SOCKET HEAD BOLT M5X |
| 4 | 312D66-5 | |
| 5 | 422822-2 | |
| 6 | 253574-2 | |
| 7 | 922232-8 | Makita 922232-8 HEX. SOCKET HEAD BOLT M5X |
| 8 | 137006-6 | |
| 9 | 312D70-4 | |
| 11 | 141N02-2 | |
| 12 | 922232-8 | Makita 922232-8 HEX. SOCKET HEAD BOLT M5X |
| 13 | 137005-8 | |
| 14 | 232798-3 | |
| 16 | 922212-4 | Makita 922212-4 HEX. SOCKET HEAD BOLT M5X |
| 17 | 253424-1 | |
| 20 | 136853-2 | |
| 21 | 922243-3 | Makita 922243-3 HEX. SOCKET HEAD BOLT M5X |
| 22 | 421362-7 | Makita 421362-7 CAP, LH1040 |
| 23 | 416741-2 | Makita 416741-2 Plastic Dust Nozzle Piece for SG1250 Bag Extractor |
| 24 | 213888-1 | |
| 25 | 257896-2 | |
| 26 | 327B11-5 | |
| 27 | 265A89-3 | |
| 28 | 413P09-3 | |
| 29 | 257A13-0 | |
| 30 | 424792-1 | |
| 31 | 422822-2 | |
| 32 | 327B10-7 | |
| 33 | 257895-4 | |
| 34 | 211238-4 | Makita 211238-4 BALL BEARING 6202LLU HM1202C |
| 35 | 451485-7 | Makita 451485-7 PIN CAP, GA9050 |
| 36 | 233089-5 | Makita 233089-5 COMPRESSION SPRING, 9067 |
| 37 | 256947-8 | |
| 38 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 39 | 922123-3 | Makita 922123-3 Hex. Socket Head Bolt M4X |
| 40 | 257868-7 | |
| 41 | 347915-3 | |
| 42 | 222201-2 | |
| 43 | 313415-5 | |
| 44 | 267822-3 | Makita 267822-3 SPRING WASHER 8, PS-460 |
| 45 | 264053-5 | Makita 264053-5 HEXAGON NUT M8X1, EA3200S |
| 46 | 312D67-3 | |
| 47 | 211062-5 | Makita 211062-5 BALL BEARING 6000ZZ, 9524NB |
| 48 | 252429-8 | Makita 252429-8 CIRCULAR NUT M15-23, GA9030 |
| 49 | 227922-1 | |
| 50 | 254201-4 | Makita 254201-4 KEY 4 |
| 51 | 285049-3 | |
| 52 | 265074-0 | Makita 265074-0 PAN HEAD SCREW M5X16 |
| 53 | 211278-2 | Makita 211278-2 BALL BEARING 6203DDW, 9069 |
| 54 | 327B09-2 | |
| 55 | 213806-9 | Makita 213806-9 O RING 90 |
| 56 | 922343-9 | Makita 922343-9 BOLT M6X25 |
| 57 | 222203-8 | |
| 58 | 347A86-2 | |
| 59 | 265D39-6 | |
| 60 | 312C34-2 | |
| 61 | 232729-2 | |
| 62 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 63 | 312C33-4 | |
| 64 | 225107-3 | |
| 65 | 141N00-6 |

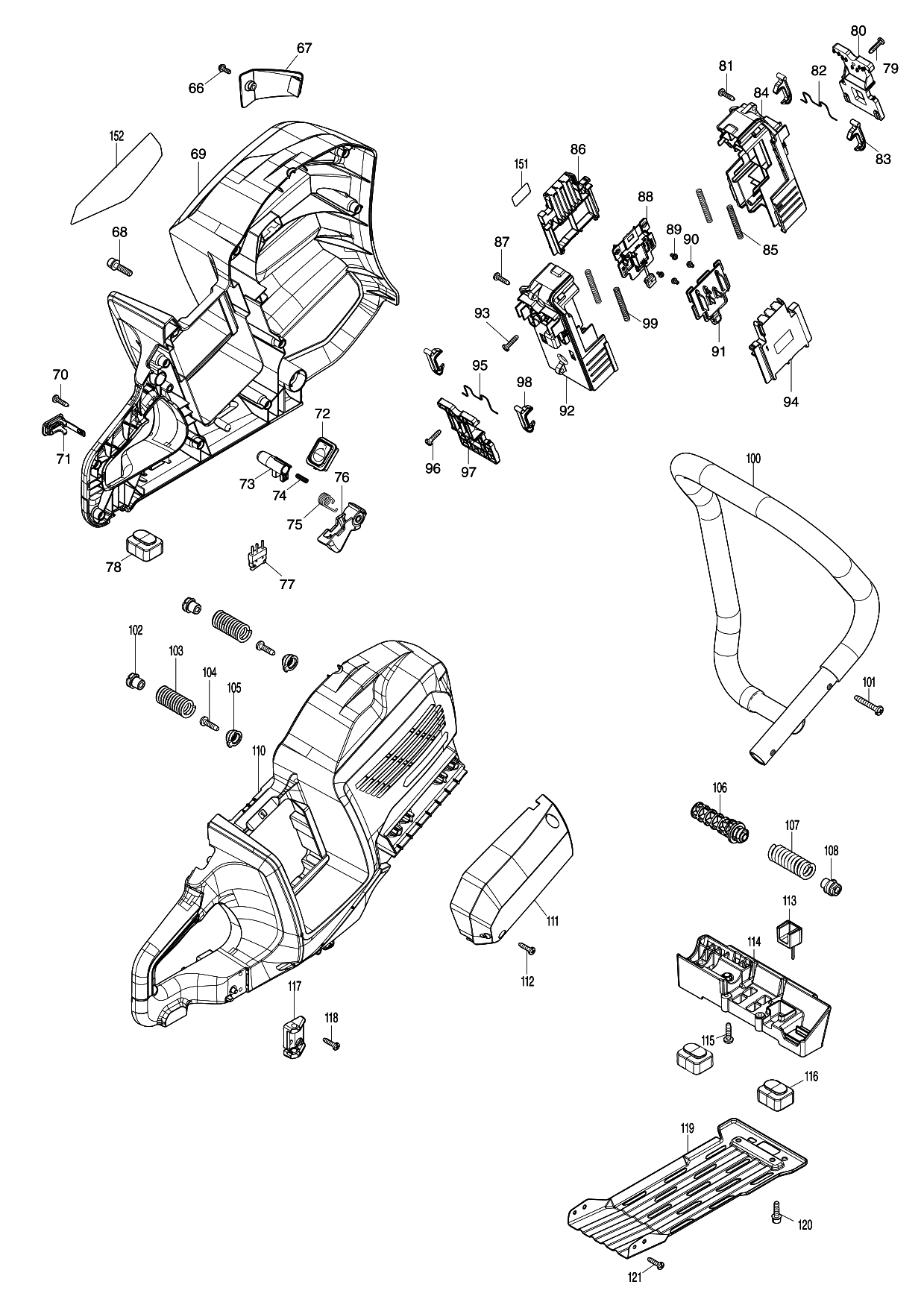

Sheet 2: Makita CE002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 66 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 67 | 413C66-3 | |
| 68 | 922343-9 | Makita 922343-9 BOLT M6X25 |
| 69 | 183Y27-6 | |
| 70 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 71 | 140F99-0 | |
| 72 | 141G39-7 | |
| 73 | 413C73-6 | |
| 74 | 232444-8 | Makita 232444-8 COMPRESSION SPRING 4 , DTR180 |
| 75 | 232732-3 | |
| 76 | 413C72-8 | |
| 77 | 632T61-8 | |
| 78 | 422823-0 | |
| 79 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 80 | 413C77-8 | |
| 81 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 82 | 232731-5 | |
| 83 | 413C76-0 | |
| 84 | 183U87-4 | |
| 85 | 232730-7 | |
| 86 | 413C74-4 | |
| 87 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 88 | 632T08-2 | |
| 89 | 652031-1 | |
| 90 | 652031-1 | |
| 91 | 632T08-2 | |
| 92 | 183U87-4 | |
| 93 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 94 | 413C75-2 | |
| 95 | 232731-5 | |
| 96 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 97 | 413C77-8 | |
| 98 | 413C76-0 | |
| 99 | 232730-7 | |
| 100 | 327928-0 | |
| 101 | 266373-3 | Makita 266373-3 TAPPING SCREW 5*35, GA9020 |
| 102 | 312C34-2 | |
| 103 | 232729-2 | |
| 104 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 105 | 312C33-4 | |
| 106 | 413C71-0 | |
| 107 | 232728-4 | |
| 108 | 312C35-0 | |
| 110 | 183Y27-6 | |
| 111 | 136926-1 | |
| 112 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 113 | 424788-2 | |
| 114 | 312C32-6 | |
| 115 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 116 | 422823-0 | |
| 117 | 413N25-3 | |
| 118 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 119 | 347916-1 | |
| 120 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 121 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 151 | 8585M0-3 | |
| 152 | 8585L3-0 |
Sheet 3: Makita CE002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 122 | 413C70-2 | |
| 123 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 124 | 687B69-9 | |
| 125 | 620E26-2 | |
| 126 | 652031-1 | |
| 127 | 632T19-7 | |
| 128 | 629A92-2 | |
| 129 | 459144-7 | |
| 130 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 131 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 132 | 519717-9 | |
| 133 | 962211-4 | Makita 962211-4 RETAINING RING R-42, GA9020 |
| 134 | 253545-9 | |
| 135 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 136 | 211132-0 | Makita 211132-0 BALL BEARING 6301DDW, 9069 |
| 137 | 262085-6 | Makita 262085-6 RUBBER RING 38, GA9020 |
| 138 | 141G44-4 | |
| 139 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 140 | 922343-9 | Makita 922343-9 BOLT M6X25 |
| 141 | 227921-3 | |
| 142 | 252178-7 | Makita 252178-7 HEX.NUT M8-12 |
| 143 | 422821-4 | |
| 144 | 265620-9 | |
| 145 | 620H50-3 | |
| 146 | 183U88-2 | |
| 147 | 620K97-5 | |
| 148 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 149 | 183U88-2 | |
| 150 | 922343-9 | Makita 922343-9 BOLT M6X25 |
