Bosch CCG18-125-15 AS cordless angle grinder: exploded parts diagram, 2 sheets, 39 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CCG18-125-15 AS: 39 positions on 2 sheets

Bosch CCG18-125-15 AS parts list (2 sheets)

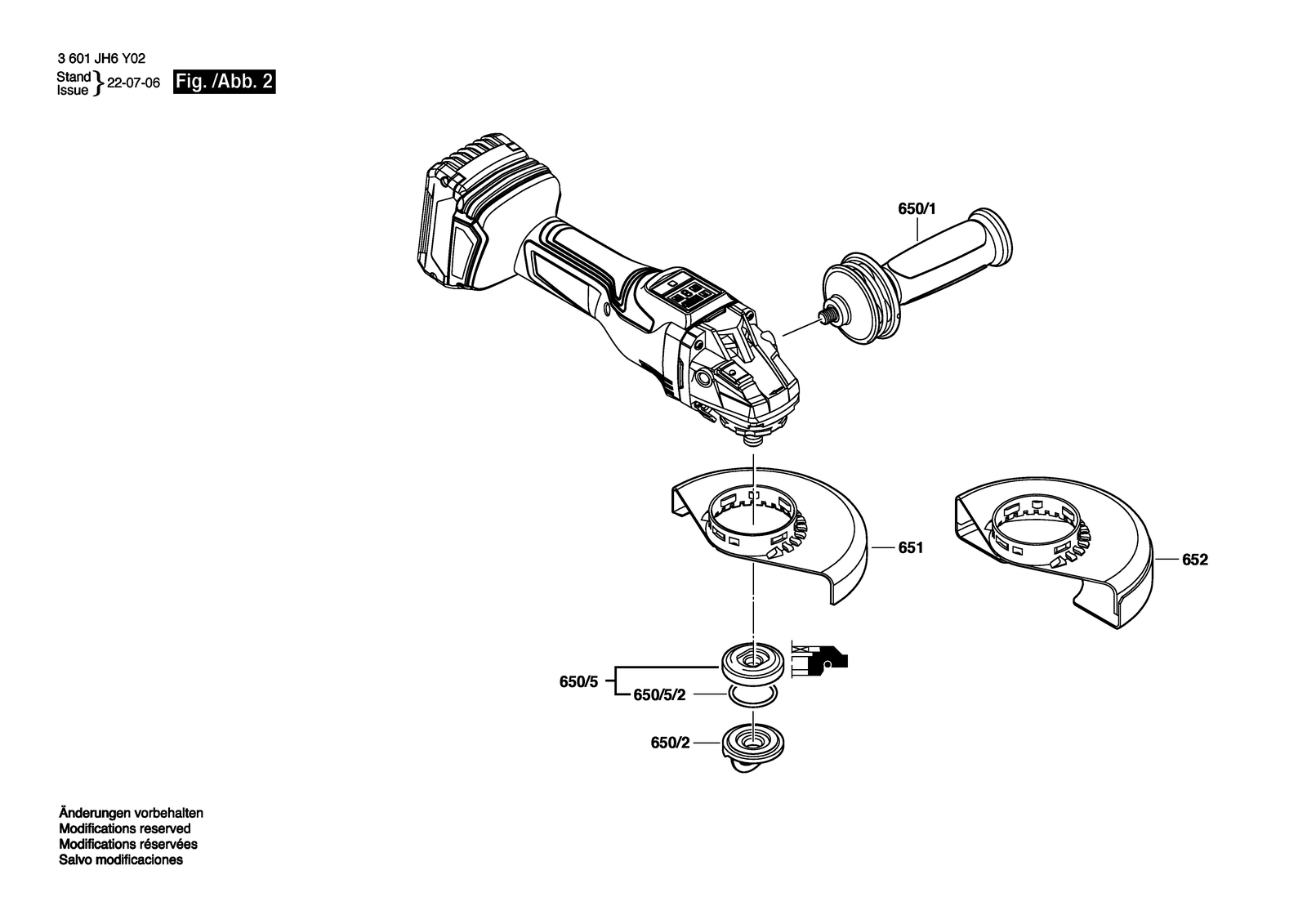

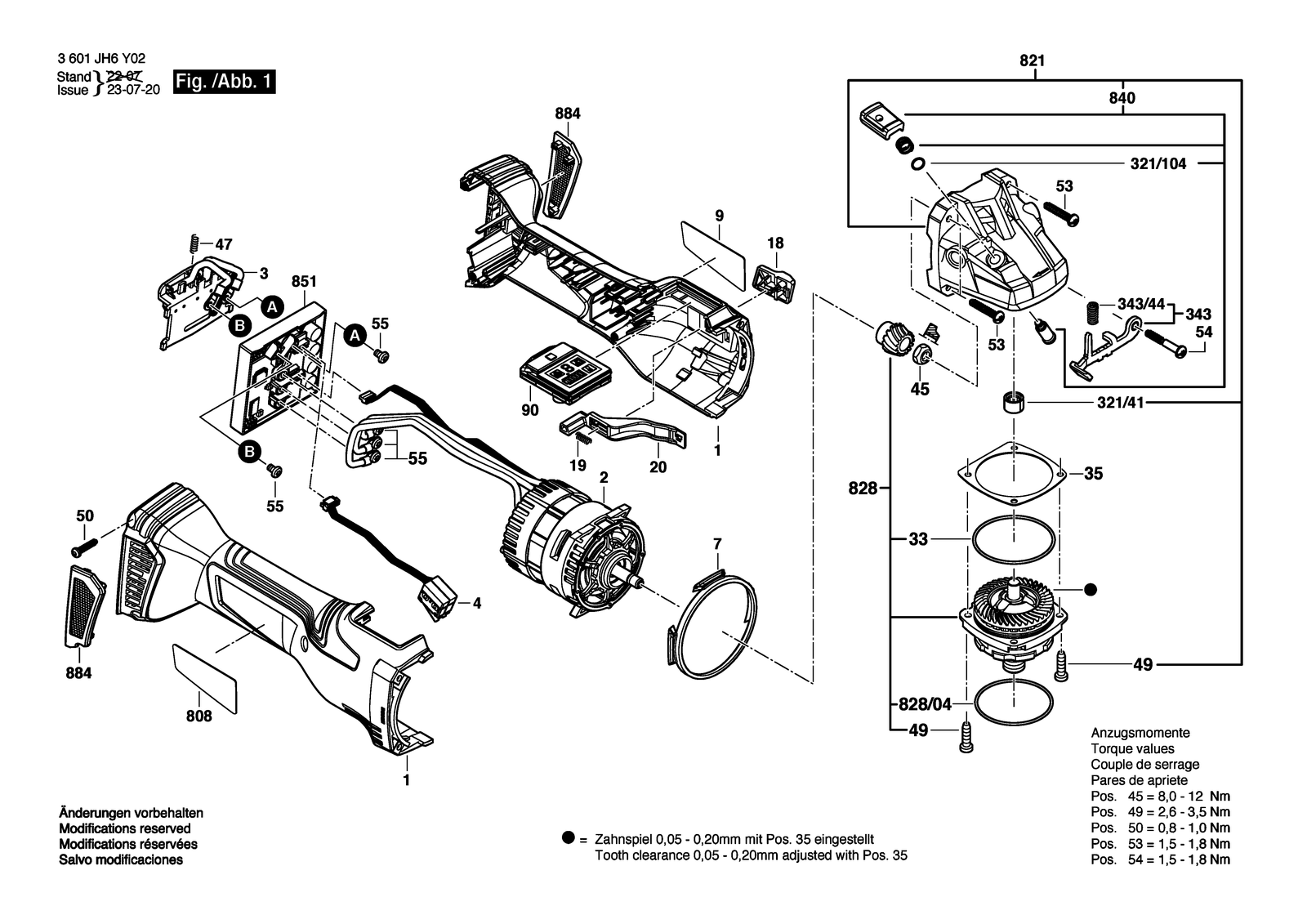

Bosch CCG18-125-15 AS parts diagram, sheet 1Bosch CCG18-125-15 AS parts diagram, sheet 2
No.Part numberPart name
116051082TNMotor Housing
181600A0287NSwitch Handle
19160461203MCompression Spring
21607022661DC motor
201600A016PXSwitch Slide
31600A024C4Contact Plate
321/1041600210044O-Ring Blue 4,5X1,0 MM
321/411600200029Plain bearing
331600210035O-Ring 46,0X1,1 MM
3431607000742Catch Lever
343/441604611042Compression Spring
351600136013Shim Thick 0,1 MM
351600136014Shim Thick 0,2 MM
351600136015Shim Thick 0,3 MM
351600136020Shim Thick 0,15 MM
41600A016JCSwitch Unit
451603300016Hex Nut M7, SW10
471609280477Compression Spring
492914491410Thread-forming tap. Screw M4X16
501603435071Thread-forming tap. Screw
531603435078Torx Oval-Head Screw
541603414026Torx Oval-Head Screw 4X30
55160343003TScrew
650/116020250AKAuxiliary Handle
650/21600A028UJFast Locking Flange
650/52605703014Clamping Flange Ø22,3XØ42 MM
650/5/21600210055O-Ring 20,35X1,78 MM
6511600A026STProtective Cover
6521600A0293KProtective Cover
71600A016U4Cover Ring
808160111A9TBNameplate
8211607000EU4Gear Housing
8281607000D83Bearing Flange
828/043600210109O-Ring 47,0X1,5 MM
8401607000E9VPush-Button
8511607000EB1Electronic Module
8841607000CA9Filter Unit
9160111C50BManufacturer's nameplate
9016072335S9Electronic Module
