Bosch CBIDW18

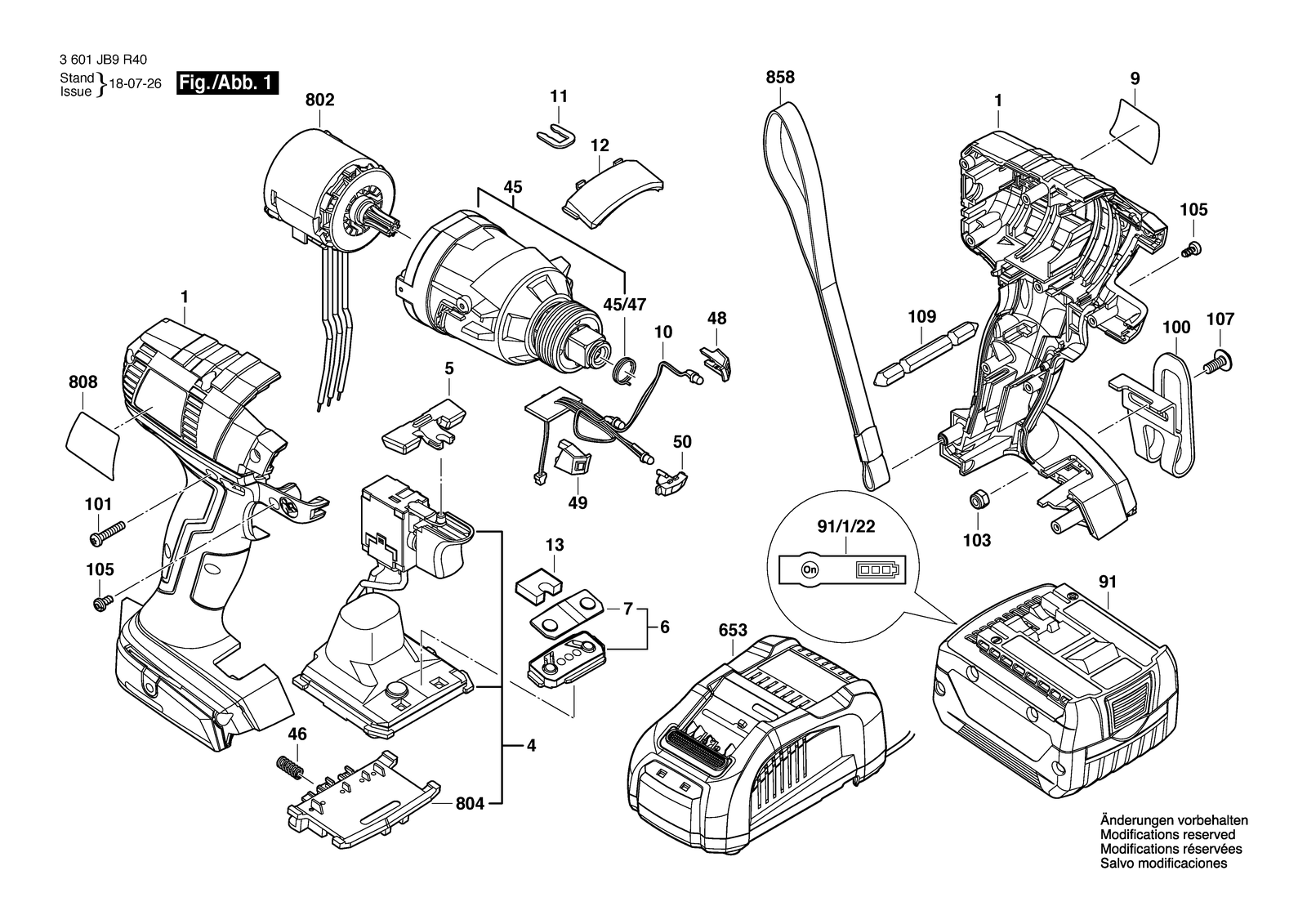

Bosch CBIDW18 impact wrench: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CBIDW18: 29 positions on 1 sheet
Bosch CBIDW18 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058065UU | Housing |
| 10 | 2609199465 | Electronics Module |
| 100 | 2609110956 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 105 | 2609111447 | Pan head screw |
| 107 | 2609110834 | Screw |
| 109 | 2609110343 | Screwdriver Blade |
| 11 | 2609110838 | Clip |
| 12 | 1600A0199B | Cover |
| 13 | 2609170193 | Protector |
| 4 | 1600A01BP6 | Electronics Module |
| 45 | 1600A019NV | Gear Box |
| 45/47 | 2609111262 | Metal Ring |
| 46 | 1609280477 | Compression Spring |
| 48 | 2609101069 | Lens |
| 49 | 2609101070 | Lens |
| 5 | 1600A0199A | Lever |
| 50 | 2609101083 | Lens |
| 6 | 1600A019B4 | Button |
| 653 | 2607226367 | Fast Charger Aus CBCHR18 240V / 14,4-18V |
| 7 | 6082942H7D | Label |
| 802 | 2609199548 | DC motor 480W |
| 804 | 1609280474 | Contact retainer |
| 808 | 160111A64N | Nameplate |
| 858 | 2609100301 | Strap |
| 9 | 160111C2N9 | Manufacturer's nameplate |
| 91 | 1607A350DJ | Battery Pack 18V 6,0AH CBBAT18 |
| 91/1/22 | 2601115537 | Sticker |
