Bosch CBHDD18 cordless drill driver: exploded parts diagram, 2 sheets, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CBHDD18: 23 positions on 2 sheets

Bosch CBHDD18 parts list (2 sheets)

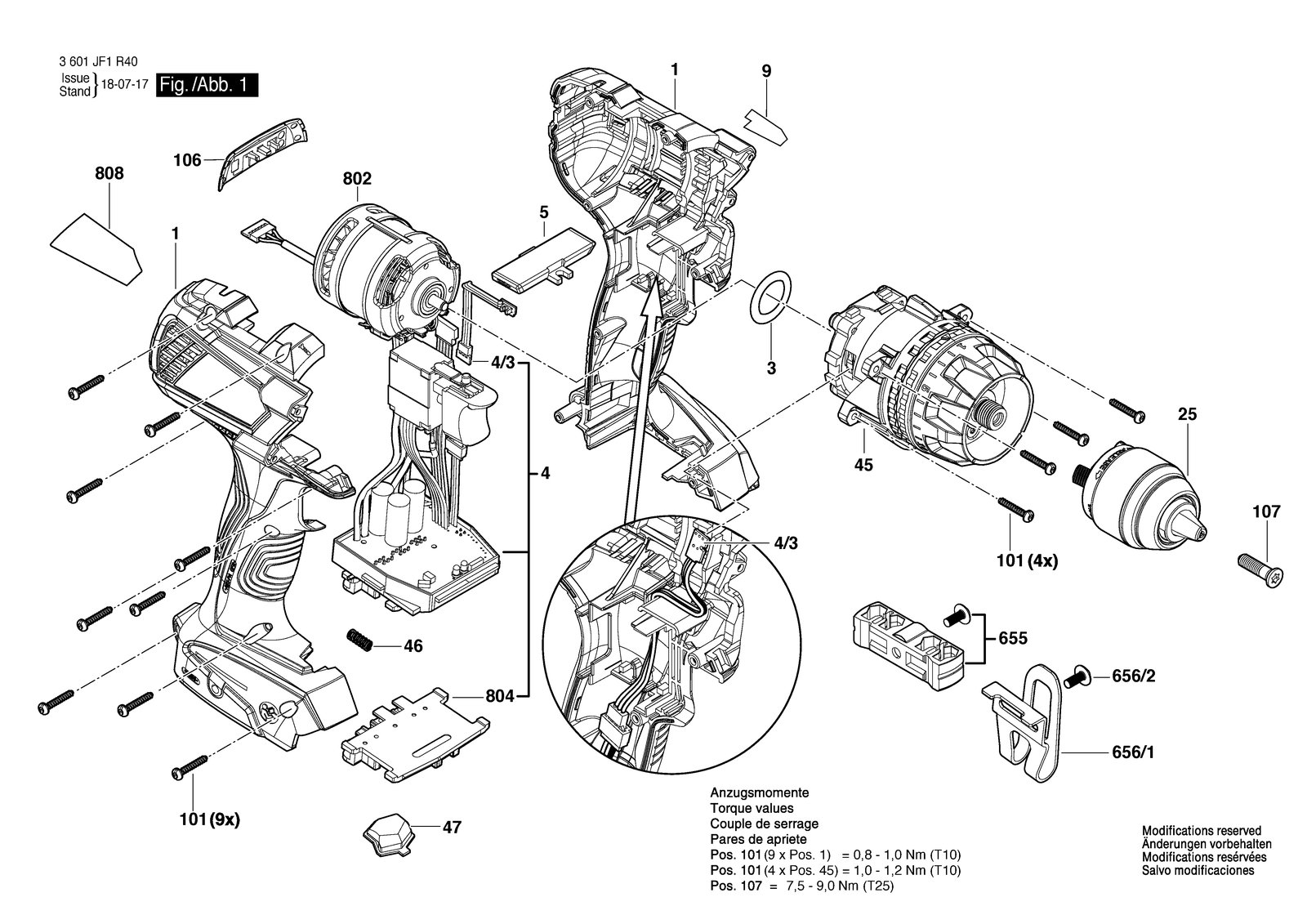

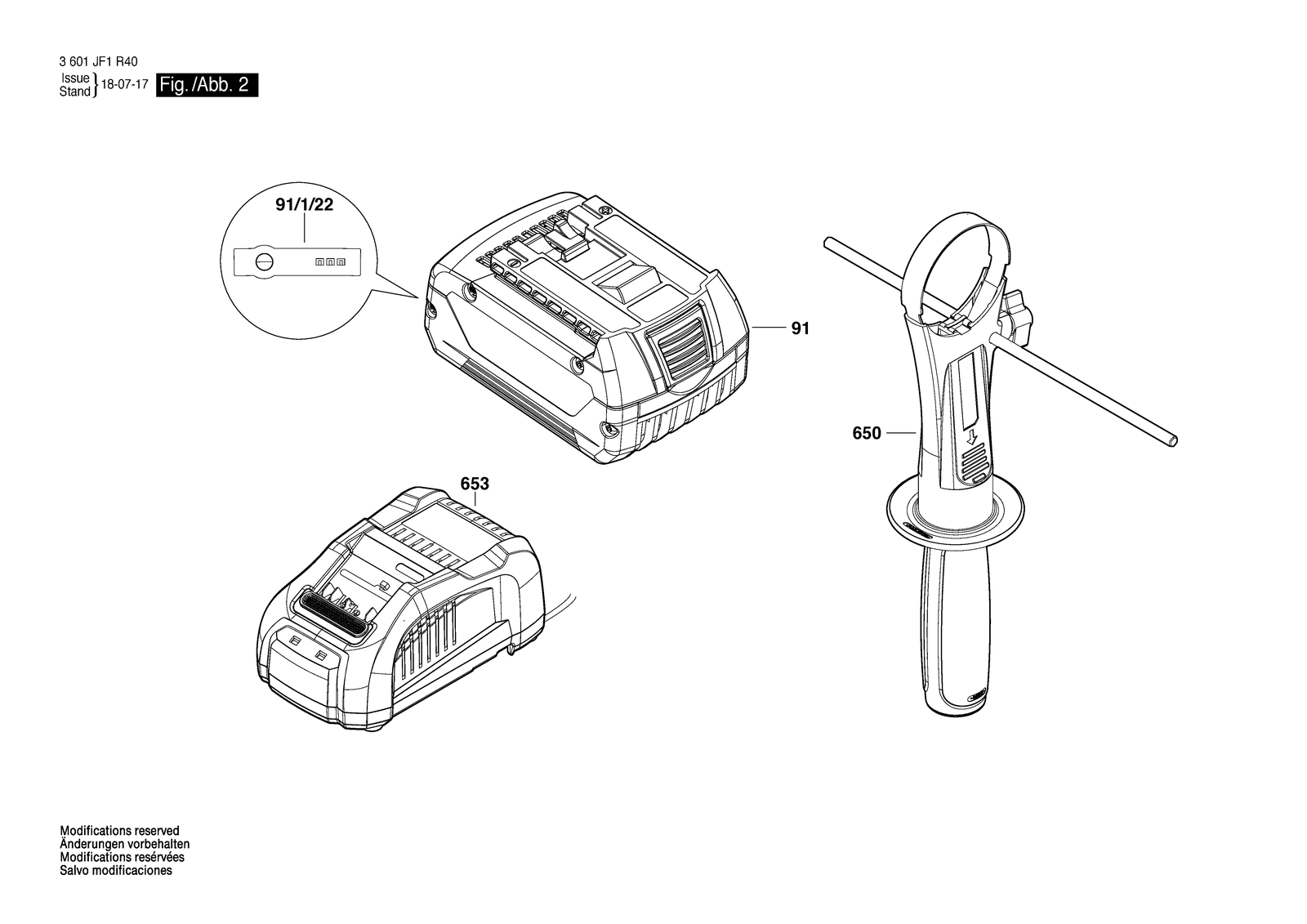

Bosch CBHDD18 parts diagram, sheet 1Bosch CBHDD18 parts diagram, sheet 2
No.Part numberPart name
116058065V4Housing
1012609110353Torx Oval-Head Screw
1061600A019D6Color clip
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
251600A01YE8Keyless Chuck
32609170278O-Ring
41600A01BP7Electronics Module
4/31607503182Printed-Board Assembly
451600A019XRGear Box
461609280477Compression Spring
472609101490Lens
51600A019D5Lever
65016020250A3Auxiliary Handle
6532607226367Fast Charger Aus CBCHR18 240V / 14,4-18V
6552609199748Bit holder
656/12609111584Clip
656/22609110834Screw
8022609199943Motor Spare Parts Set
8041609280820Contact retainer 18V
808160111A64TNameplate
9160111C2NFManufacturer's nameplate
911607A350DJBattery Pack 18V 6,0AH CBBAT18
91/1/222601115537Sticker
