All parts of Bosch CAG180-01: 43 positions on 2 sheets

Bosch CAG180-01 parts list (2 sheets)

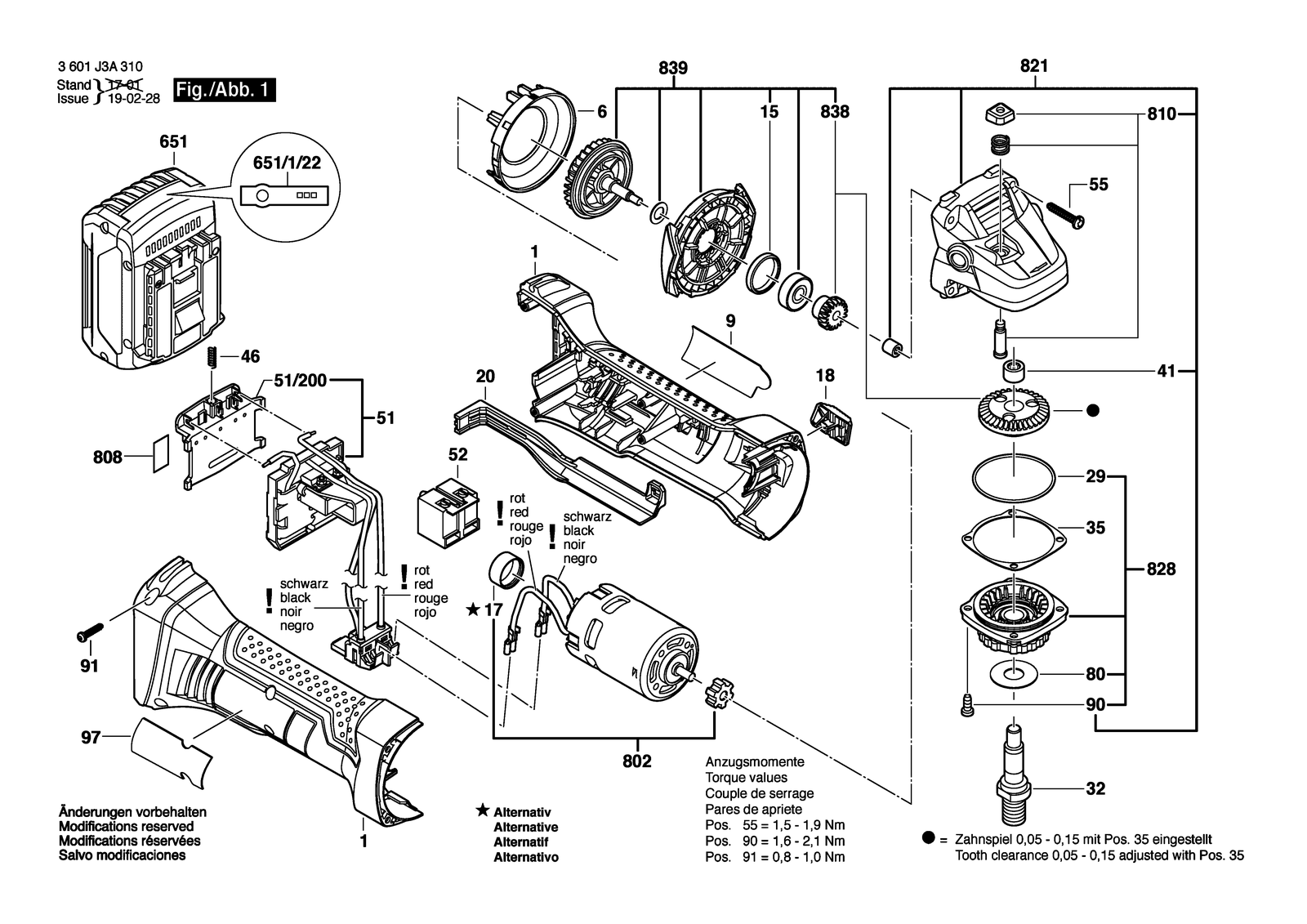

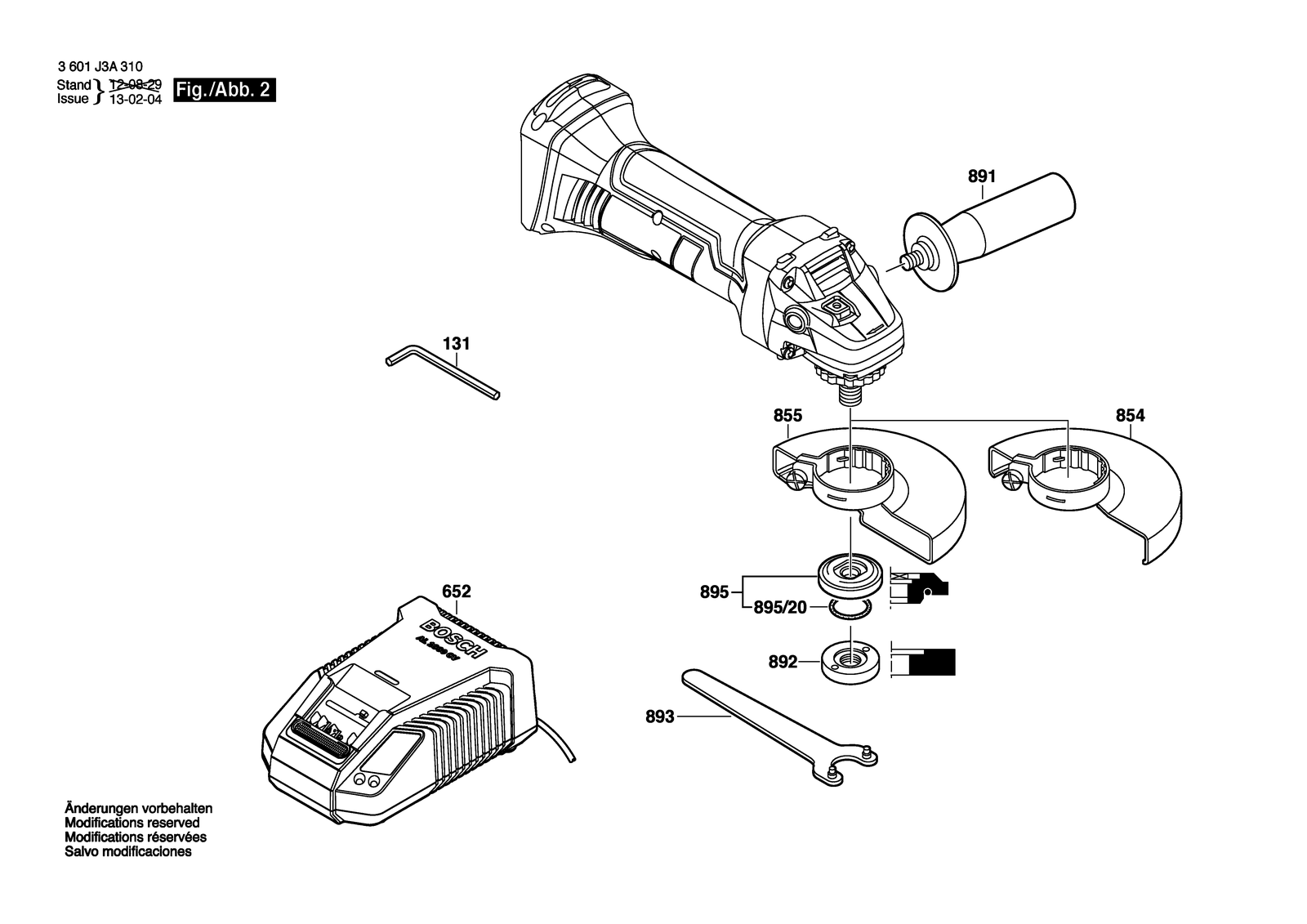

Bosch CAG180-01 parts diagram, sheet 1Bosch CAG180-01 parts diagram, sheet 2
No.Part numberPart name
11605108282Housing Section Blue
1311619P01598Hex Screw Driver 4X95
151600206025Rubber Ring
171600A001PYCover
181619P10838Switch Button
201602319023Adjusting Slide
291619P02820O-Ring 44,0X1,0 MM
321607000D6BGrinding Spindle
323603523503Grinding Spindle 5/8"
351619P02821Shim 0,1 MM
351619P02822Shim 0,2 MM
411600200029Plain bearing
461609280477Compression Spring
511607233340Electronics Module
51/2001609280478Contact retainer
522607202071On-Off Switch
552603490024Torx Oval-Head Screw 4X25
61600591046Air-Deflector Ring
6511607A350BMBattery Pack BAT612 18V 2.0AH LI Scm
6511607A350MBBattery Pack
651/1/222601115537Sticker
6522607225927Charger Usa BC 1880 CV 13,3-18V/120V
6522607226287Charger US GAL 18V-20 120V / 2A
801619P09390Cover Disc
80216170006B0DC motor 18V
8081601106053Nameplate
808160111A28LNameplate
81016170006B1Push Button
82116170006B2Gear Housing
82816170006B3Bearing Flange
8381600A00M8FSet Of Gearwheels
8391600A00M8JSet Of Gearwheels
8541600A00XU6Protective Cover Silver Ø115 MM
8551619P06442Protective Cover Ø115 MM
8911602025027Auxiliary Handle M10
8923603340503Round Nut 5/8"
8931607950052Pin-Type Face-Wrench
8951605703140Clamping-Flange
895/201600210253O-Ring
91601118K85Manufacturer's nameplate
901603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
911603435071Thread-forming tap. Screw
971601118K86Warning Plate
