All parts of Makita BVR350: 30 positions on 1 sheet

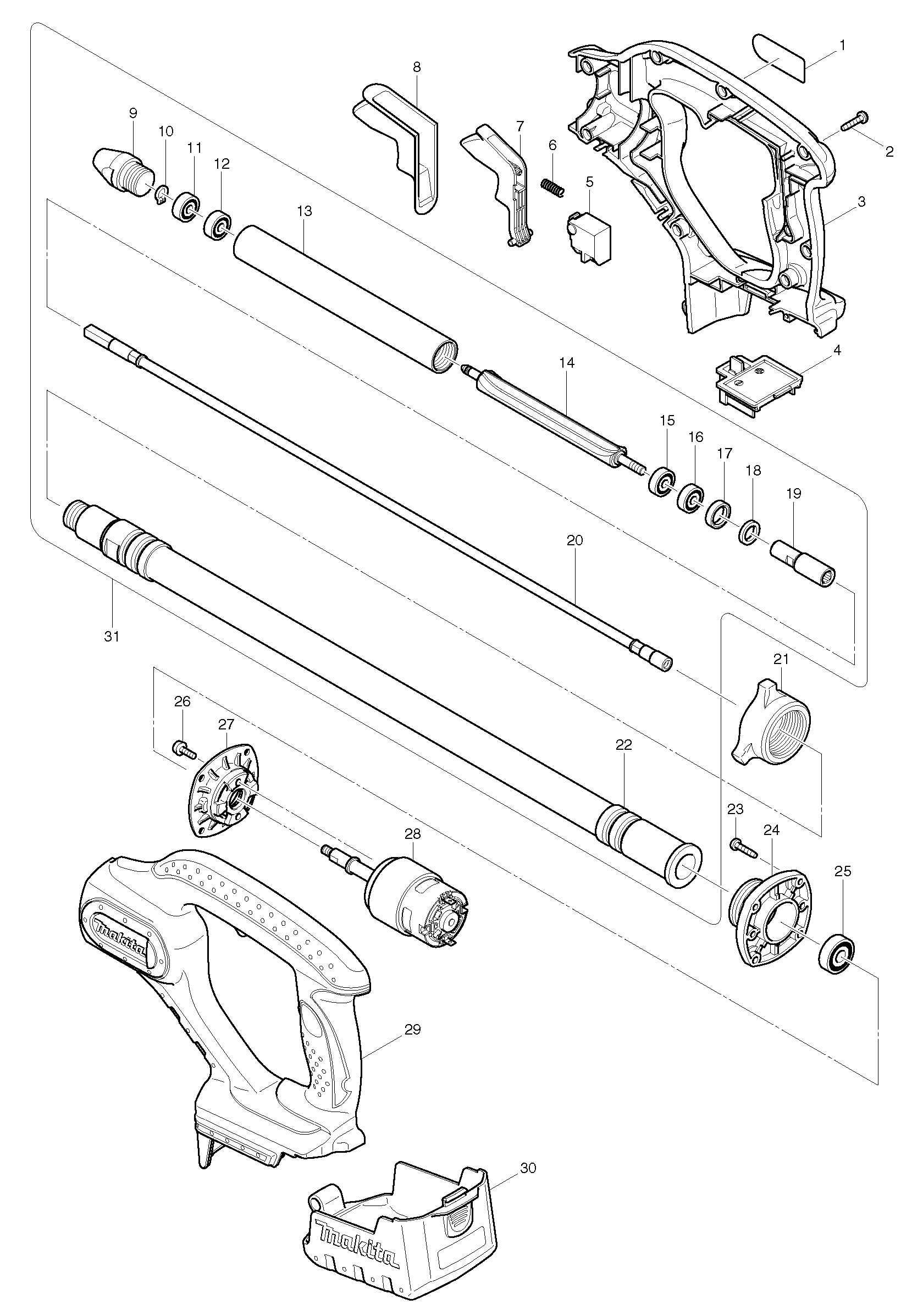

Sheet 1: Makita BVR350 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 862641-8 | Makita 862641-8 NAME PLATE, BVR350 |
| 2 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 3 | 188121-9 | Makita 188121-9 HOUSING SETBVR350 |
| 4 | 643812-4 | Makita 643812-4 TERMINAL |
| 5 | 650580-2 | Makita 650580-2 Switch SGE120C-4 for BVR350 BVR450 BVR850 XRV01 |
| 6 | 231298-0 | Makita 231298-0 COMPRESSION SPRING 6 |
| 7 | 419511-8 | Makita 419511-8 SWITCH LEVERBVR350 |
| 8 | 421961-5 | Makita 421961-5 WATERPROOF COVERBVR350 |
| 9 | 322935-8 | Makita 322935-8 CAP VR250D |
| 10 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 11 | 210018-5 | Makita 210018-5 BALL BEARING 626 |
| 12 | 210018-5 | Makita 210018-5 BALL BEARING 626 |
| 13 | 331503-6 | Makita 331503-6 PIPE 25 |
| 14 | 322934-0 | Makita 322934-0 UNBALANCER |
| 15 | 211016-2 | Makita 211016-2 BALL BEARING 626LLB |
| 16 | 211016-2 | Makita 211016-2 BALL BEARING 626LLB |
| 17 | 421578-4 | Makita 421578-4 RUBBER RING |
| 18 | 443101-5 | Makita 443101-5 FELT RING |
| 19 | 322969-1 | Makita 322969-1 JOINT |
| 20 | 163387-2 | Makita 163387-2 FLEXIBLE WIRE |
| 21 | 416244-6 | Makita 416244-6 NUT 36 |
| 22 | 163386-4 | Makita 163386-4 FLEXIBLE HOSE |
| 23 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 24 | 316893-8 | Makita 316893-8 BEARING BOX |
| 25 | 211056-0 | Makita 211056-0 BALL BEARING 629LLB |
| 26 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 27 | 318038-4 | Makita 318038-4 SUPPORTERBVR350 |
| 28 | 629836-4 | Makita 629836-4 Motor BVR350 |
| 29 | 188121-9 | Makita 188121-9 HOUSING SETBVR350 |
| 30 | 158051-8 | Makita 158051-8 COVER COMPLETEBVR350 |
