Makita BVF154

Makita BVF154: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BVF154: 54 positions on 1 sheet

Sheet 1: Makita BVF154 parts diagram

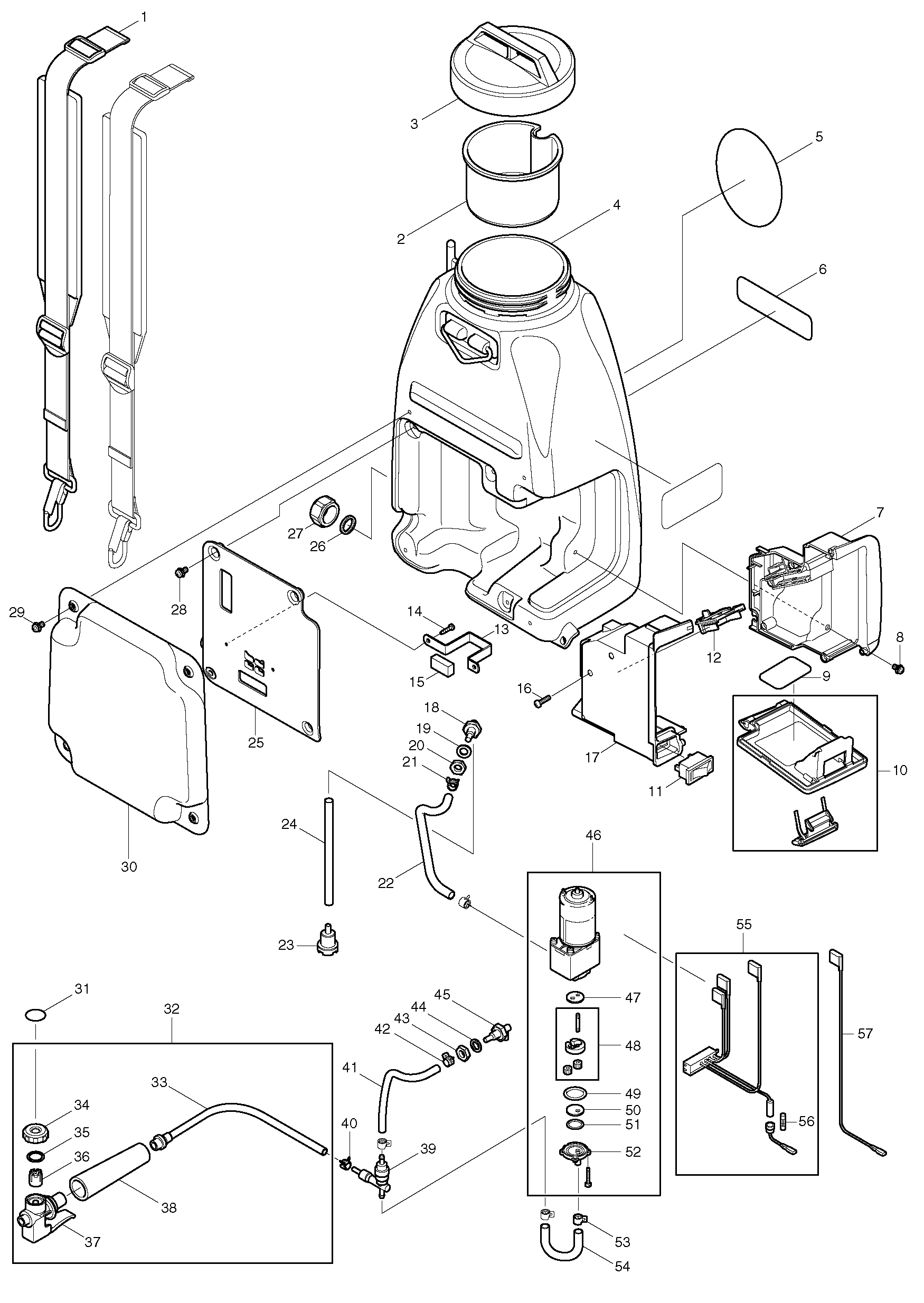

Makita BVF154 parts diagram, sheet 1
No.Part numberPart name
16709026000Makita 6709026000 BAND COMPLETE
26904503601Makita 6904503601 STRAINER, TANKSP252.4R
36954022000Makita 6954022000 CAP COMPLETE
46954012002
56954512800
66954512900
76951504600
80140059160
96954513200
106951504700
11651531-8Makita 651531-8 SPEED CHANGE LEVER
12643843-3Makita 643843-3 TERMINAL
136951503501
140150049850
156951504100
160150049850
176951504300
186951022000Makita 6951022000 JOINT, ELBOW
196951023000Makita 6951023000 PACKING, ELBOW
206951024001Makita 6951024001 NUT, ELBOW
210561100030Makita 0561100030 HOSE CLAMP
226951503601Makita 6951503601 TUBE1
236954021000Makita 6954021000 STRAINER, SUCTIONASSY
246951503900Makita 6951503900 TUBE4
256951503100
266904500300Makita 6904500300 GASKET, BLINDSP252.4R
276824505200Makita 6824505200 CAPSP252.4R
280140059160
290140059160
306954013000
316954513100Makita 6954513100 CAUTION LABEL
336957025011
346957025060
356957025050
366957025040
376957025030
386957025020
396951021001Makita 6951021001 REGULATOR COMPLETE
400561089980Makita 0561089980 HOSE CLAMP, BVF154
416951503800Makita 6951503800 TUBE3
420561080010Makita 0561080010 HOSE CLAMPBHX2500/PB-250.4
436951024001Makita 6951024001 NUT, ELBOW
446951023000Makita 6951023000 PACKING, ELBOW
456951022000Makita 6951022000 JOINT, ELBOW
476951502900Makita 6951502900 PLATE 1 BVF154
486951019000Makita 6951019000 GEAR SET BVF154
496951502600Makita 6951502600 O-RING 1 BVF154
506951503000Makita 6951503000 PLATE 2 BVF154
516951502700Makita 6951502700 O-RING 2 BVF154
526951502800Makita 6951502800 COVER BVF154
530561100030Makita 0561100030 HOSE CLAMP
546951503700Makita 6951503700 TUBE2
566959505700
57638670-1
