Makita BUR181
Makita BUR181: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BUR181: 43 positions on 1 sheet

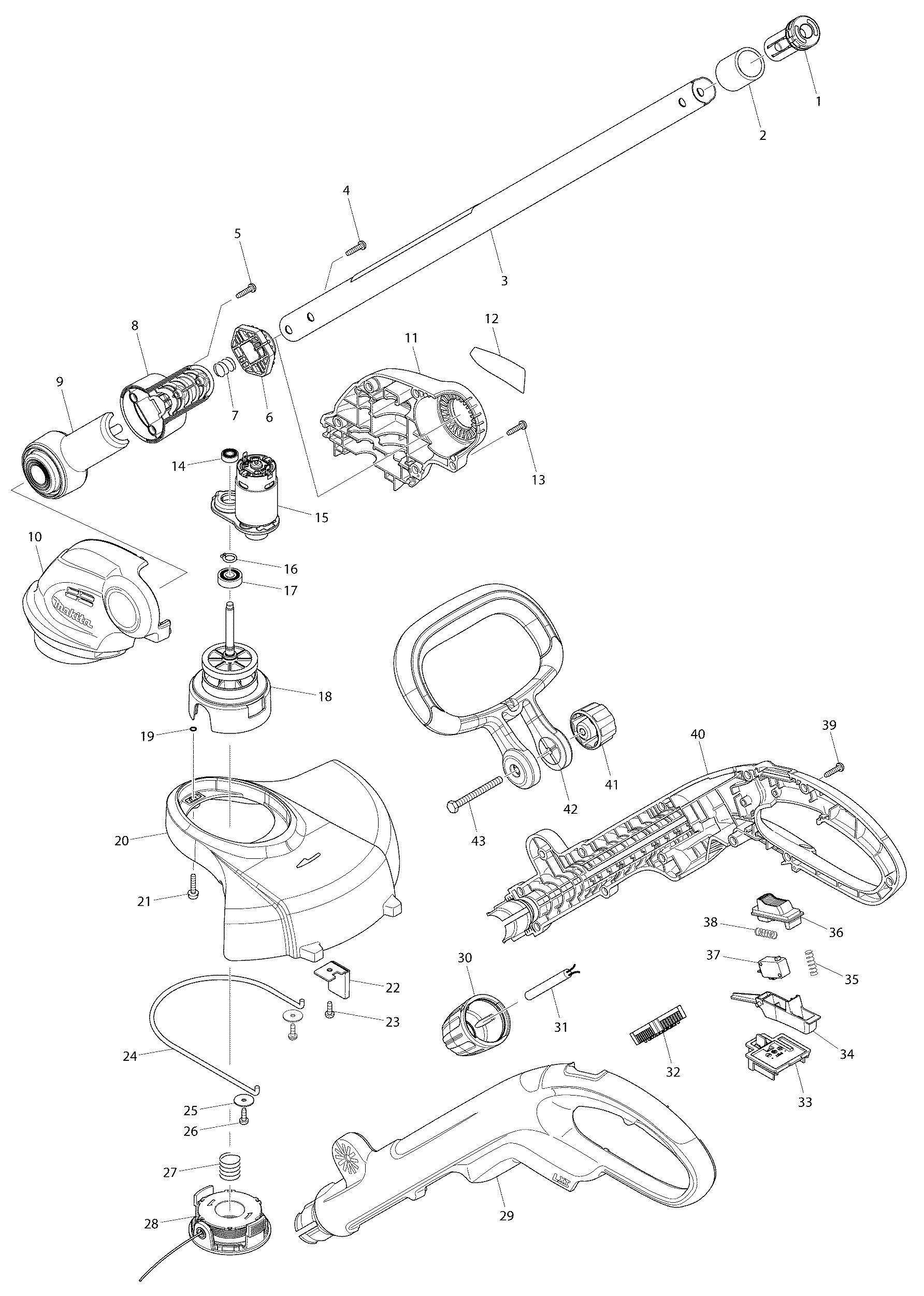

Sheet 1: Makita BUR181 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 453357-2 | Makita 453357-2 PIPE CAP |
| 2 | 422089-2 | Makita 422089-2 RUBBER SLEEVE 25 |
| 3 | 141339-3 | Makita 141339-3 PIPE 25 COMPLET |
| 4 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 5 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 6 | 451896-6 | Makita 451896-6 LOCK OFF BUTTON B |
| 7 | 231113-8 | Makita 231113-8 COMPRESSION SPRING 12 |
| 8 | 188870-8 | Makita 188870-8 PIPE HOLDER SET |
| 9 | 188870-8 | Makita 188870-8 PIPE HOLDER SET |
| 10 | 187413-3 | Makita 187413-3 MOTOR HOUSING SET |
| 11 | 187413-3 | Makita 187413-3 MOTOR HOUSING SET |
| 12 | 896763-2 | |
| 13 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 14 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 15 | 629932-8 | Makita 629932-8 Motor 18V for Trimmer BUR181 DUR181 BUR141 UR180D |
| 16 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 17 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 18 | 141338-5 | Makita 141338-5 GEAR SHAFT COMPLETE |
| 19 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
| 20 | 453353-0 | Makita 453353-0 Safety Cover |
| 21 | 911139-3 | Makita 911139-3 P.H.SCREW M4*20, EBH251U |
| 22 | 123169-4 | Makita 123169-4 CORD CUTTER ASSEMBLY |
| 23 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 24 | 326128-9 | Makita 326128-9 WIRE GUARD |
| 25 | 267071-2 | Makita 267071-2 FLAT WASHER 4, MUB062 |
| 26 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 27 | 231352-0 | Makita 231352-0 COMPRESSION SPRING 17 |
| 28 | 196146-9 | Makita 196146-9 Spool Set BUR181/141/UR180D, Multi-Colour |
| 29 | 187416-7 | Makita 187416-7 HANDLE SET |
| 30 | 453344-1 | Makita 453344-1 LOCK SLEEVE |
| 31 | 699058-0 | Makita 699058-0 POWER SUPPLY CORD |
| 32 | 620112-9 | OLDN Makita 620112-9 Controller for UR181D |
| 33 | 643852-2 | Makita 643852-2 Terminal DF456D BUR181 BUM168 BTD146 |
| 34 | 453338-6 | Makita 453338-6 SWITCH LEVER |
| 35 | 233068-3 | Makita 233068-3 COMPRESSION SPRING 6 |
| 36 | 453339-4 | Makita 453339-4 LOCK OFF LEVER |
| 37 | 651891-8 | Makita 651891-8 Switch, 6900DW SS330D |
| 38 | 233068-3 | Makita 233068-3 COMPRESSION SPRING 6 |
| 39 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 40 | 187416-7 | Makita 187416-7 HANDLE SET |
| 41 | 264072-1 | Makita 264072-1 THUMB NUT M6 |
| 42 | 453340-9 | Makita 453340-9 Front Grip Replacement Part |
| 43 | 921382-6 | Makita 921382-6 HEX. BOLT M6X60 |
