Sheet 1: Makita BUK360 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 141627-8 | |
| 2 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 620155-1 | |
| 5 | 453745-3 | |
| 6 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 7 | 453746-1 | |
| 8 | 187349-6 | |
| 9 | 346607-1 | |
| 10 | 650612-5 | |
| 11 | 187349-6 | |
| 12 | 687410-4 | |
| 13 | 141653-7 | |
| 17 | 271615-2 | |
| 18 | 256531-9 | |
| 19 | 259053-8 | |
| 20 | 142377-8 | |
| 21 | 326106-9 | |
| 22 | 126062-1 | |
| 23 | 125372-3 | |
| 24 | 259055-4 | |
| 25 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 26 | 332037-2 | |
| 27 | 922466-3 | Makita 922466-3 HEX. SOCKET HEAD BOLT M8X |
| 28 | 922343-9 | Makita 922343-9 BOLT M6X25 |
| 29 | 165660-6 | |
| 133 | 232277-1 | |
| 134 | 213026-5 | Makita 213026-5 O RING 7, SA7000C |

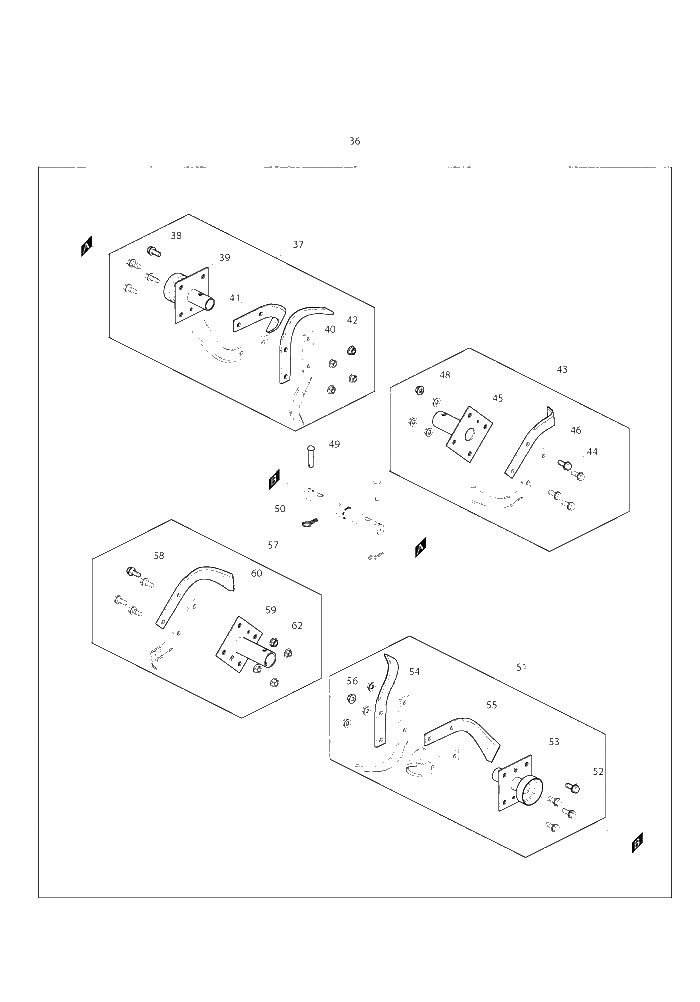

Sheet 2: Makita BUK360 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 38 | 265598-6 | |
| 39 | 165682-6 | |
| 40 | 346521-1 | |
| 41 | 346522-9 | |
| 42 | 264067-4 | |
| 44 | 265598-6 | |
| 45 | 165683-4 | |
| 46 | 346522-9 | |
| 48 | 264067-4 | |
| 49 | 256532-7 | |
| 50 | 259052-0 | |
| 52 | 265598-6 | |
| 53 | 165664-8 | |
| 54 | 346522-9 | |
| 55 | 346521-1 | |
| 56 | 264067-4 | |
| 58 | 265598-6 | |
| 59 | 165665-6 | |
| 60 | 346521-1 | |
| 62 | 264067-4 | |
| 36 | 135516-7 | |
| 37 | 126228-3 | |
| 43 | 126196-0 | |
| 51 | 126227-5 | |
| 57 | 126195-2 |
Sheet 3: Makita BUK360 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 68 | 442179-5 | |
| 70 | 259054-6 | |
| 71 | 227759-6 | |
| 72 | 210067-2 | Makita 210067-2 BALL BEARING 6000ZZ, MT952 |
| 73 | 213769-9 | |
| 74 | 211383-5 | |
| 75 | 257322-1 | |
| 76 | 211472-6 | |
| 77 | 221426-5 | |
| 78 | 211473-4 | |
| 79 | 318896-8 | |
| 80 | 346519-8 | |
| 81 | 213633-4 | |
| 82 | 257990-0 | |
| 83 | 211474-2 | |
| 84 | 221425-7 | |
| 85 | 326330-4 | |
| 86 | 413156-4 | |
| 87 | 346520-3 | |
| 88 | 266661-8 |

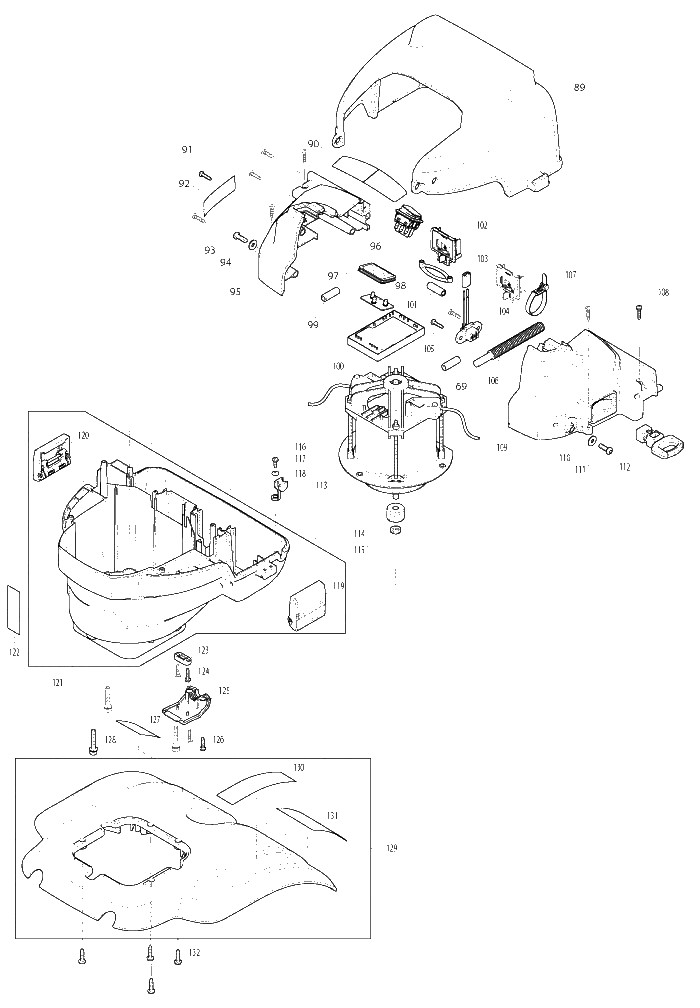

Sheet 4: Makita BUK360 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 69 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 89 | 141619-7 | |
| 90 | 898908-8 | |
| 91 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 92 | 897282-1 | |
| 93 | 265484-1 | Makita 265484-1 HEX SOCKET HEAD BOLT M6X |
| 94 | 253111-2 | Makita 253111-2 FLAT WASHER 6 |
| 95 | 187350-1 | |
| 96 | 651534-2 | |
| 97 | 141628-6 | |
| 98 | 421448-7 | Makita 421448-7 RUBBER BAND, JR3060T |
| 99 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 100 | 620154-3 | |
| 101 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 102 | 643849-1 | Makita 643849-1 TERMINAL |
| 103 | 688172-7 | Makita 688172-7 Line Filter for JR181D |
| 104 | 632A04-6 | |
| 105 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 106 | 699057-2 | |
| 107 | 687410-4 | |
| 108 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 109 | 187350-1 | |
| 110 | 253111-2 | Makita 253111-2 FLAT WASHER 6 |
| 111 | 265484-1 | Makita 265484-1 HEX SOCKET HEAD BOLT M6X |
| 112 | 643890-4 | Makita 643890-4 KEY, LM430D |
| 113 | 629957-2 | |
| 114 | 227758-8 | |
| 115 | 252194-9 | Makita 252194-9 HEX NUT M8, GA9020 |
| 116 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 117 | 267099-0 | Makita 267099-0 FLAT WASHER 4 |
| 118 | 424507-6 | |
| 119 | 162343-9 | |
| 120 | 162343-9 | |
| 122 | 897518-8 | |
| 123 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 124 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 125 | 453747-9 | |
| 126 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 127 | ||
| 128 | 266781-8 | |
| 130 | 898904-6 | |
| 131 | 898903-8 | |
| 132 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 121 | 141651-1 | |
| 129 | 141663-4 |
