Makita BUH650: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BUH650: 50 positions on 1 sheet

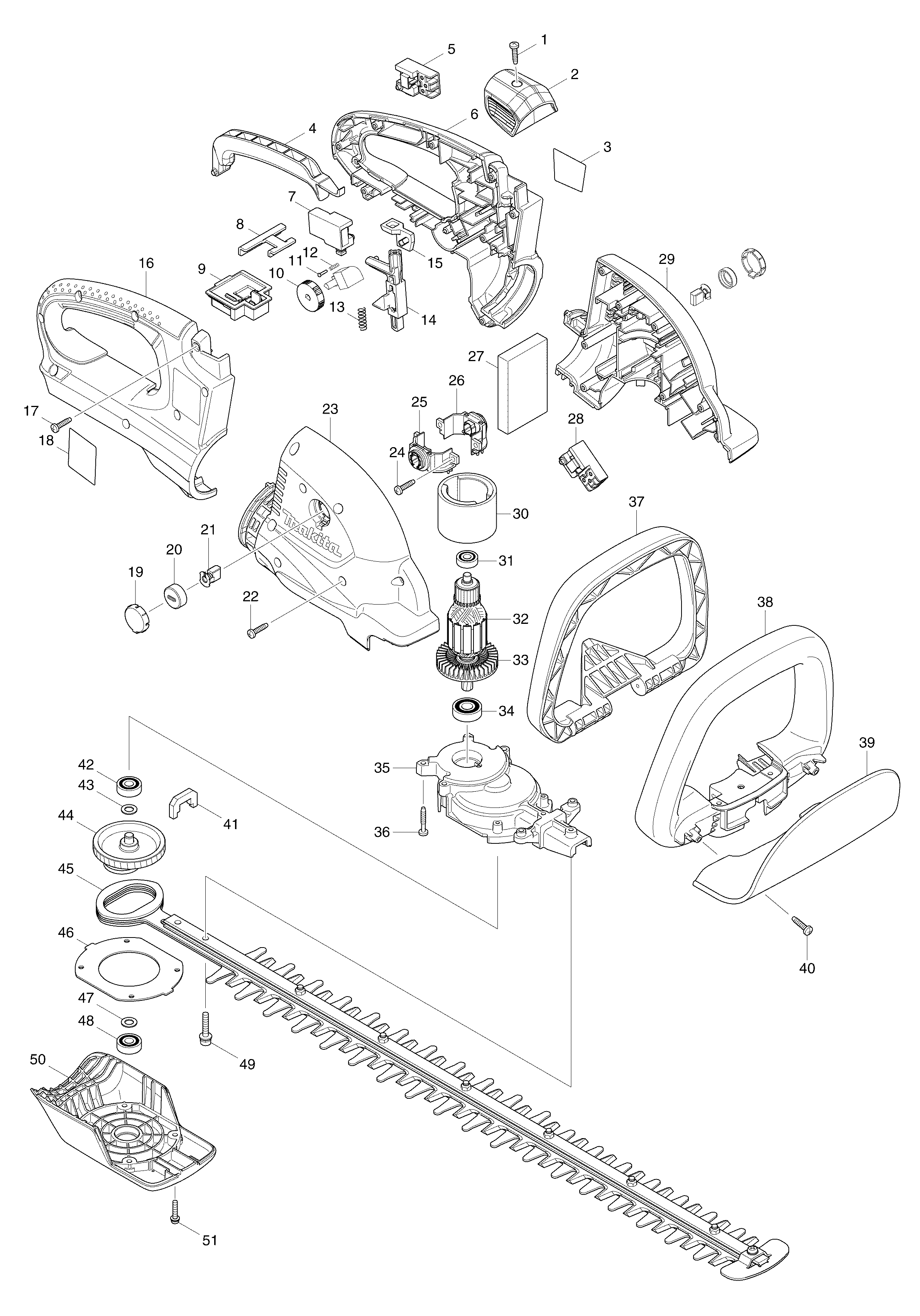

Sheet 1: Makita BUH650 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 452164-0 | Makita 452164-0 KNOBBUH650 |
| 3 | 891002-5 | |
| 4 | 452159-3 | Makita 452159-3 SWITCH LEVER ABUH650 |
| 5 | 650635-3 | Makita 650635-3 SWITCH TG73BDHBUH650 |
| 6 | 188948-7 | Makita 188948-7 HANDLE SETBUH650 |
| 7 | 650636-1 | Makita 650636-1 SWITCH TG72BDH-3BUH650 |
| 8 | 346039-2 | Makita 346039-2 SUPPORT PLATE, HR261D |
| 9 | 643849-1 | Makita 643849-1 TERMINAL |
| 10 | 271427-3 | Makita 271427-3 DIAL 28, UH550D |
| 11 | 255058-6 | Makita 255058-6 RIVET 2 FOR |
| 12 | 233002-3 | Makita 233002-3 COMPRESSION SPRING 3 |
| 13 | 233138-8 | |
| 14 | 452162-4 | Makita 452162-4 LOCK LEVERBUH650 |
| 15 | 452163-2 | Makita 452163-2 SLIDERBUH650 |
| 16 | 188948-7 | Makita 188948-7 HANDLE SETBUH650 |
| 17 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 18 | 868278-9 | |
| 19 | 452145-4 | Makita 452145-4 HOLDER CAP COVER |
| 20 | 643941-3 | Makita 643941-3 Brush Holder Cap for BJR181 |
| 21 | 194928-3 | Makita 194928-3 CB-442 Carbon Brushes BHR261T BUC250 BUH550 UC250D UH550D |
| 22 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 23 | 188950-0 | Makita 188950-0 HOUSING SETBUH650 |
| 24 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 25 | 643857-2 | Makita 643857-2 BRUSH HOLDERBUH650 |
| 26 | 643856-4 | Makita 643856-4 BRUSH HOLDERBUH650 |
| 27 | 631988-9 | Makita 631988-9 CONTROLLERBUH650 |
| 28 | 650635-3 | Makita 650635-3 SWITCH TG73BDHBUH650 |
| 29 | 188950-0 | Makita 188950-0 HOUSING SETBUH650 |
| 30 | 638020-0 | Makita 638020-0 Yoke Unit for HR202D |
| 31 | 211022-7 | Makita 211022-7 BALL BEARING 607ZZ |
| 32 | 519261-6 | Makita 519261-6 ARMATURE ASSEMBLYBUH650 |
| 34 | 211062-5 | Makita 211062-5 BALL BEARING 6000ZZ, 9524NB |
| 35 | 140604-7 | Makita 140604-7 GEAR HOUSING COMPLBUH650 |
| 36 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 37 | 452160-8 | Makita 452160-8 SWITCH LEVER BBUH650 |
| 38 | 452158-5 | Makita 452158-5 FRONT GRIPBUH650 |
| 39 | 452147-0 | Makita 452147-0 PROTECTORBUH650 |
| 40 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 41 | 443142-1 | Makita 443142-1 DUST GDARD, UH5580 |
| 42 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 43 | 253835-0 | Makita 253835-0 FLAT WASHER 8, LS0813F |
| 44 | 140536-8 | Makita 140536-8 GEAR COMPLETEBUH650 |
| 45 | 194673-0 | Makita 194673-0 SHEAR BLADE ASSY SET BUH6 |
| 46 | 346325-1 | Makita 346325-1 PLATE, UH550D |
| 47 | 253835-0 | Makita 253835-0 FLAT WASHER 8, LS0813F |
| 48 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 49 | 265182-7 | Makita 265182-7 PAN HEAD SCREW M5*25, UH5580 |
| 50 | 452156-9 | Makita 452156-9 UNDER COVERBUH650 |
| 51 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
