Makita BUC122: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BUC122: 48 positions on 1 sheet

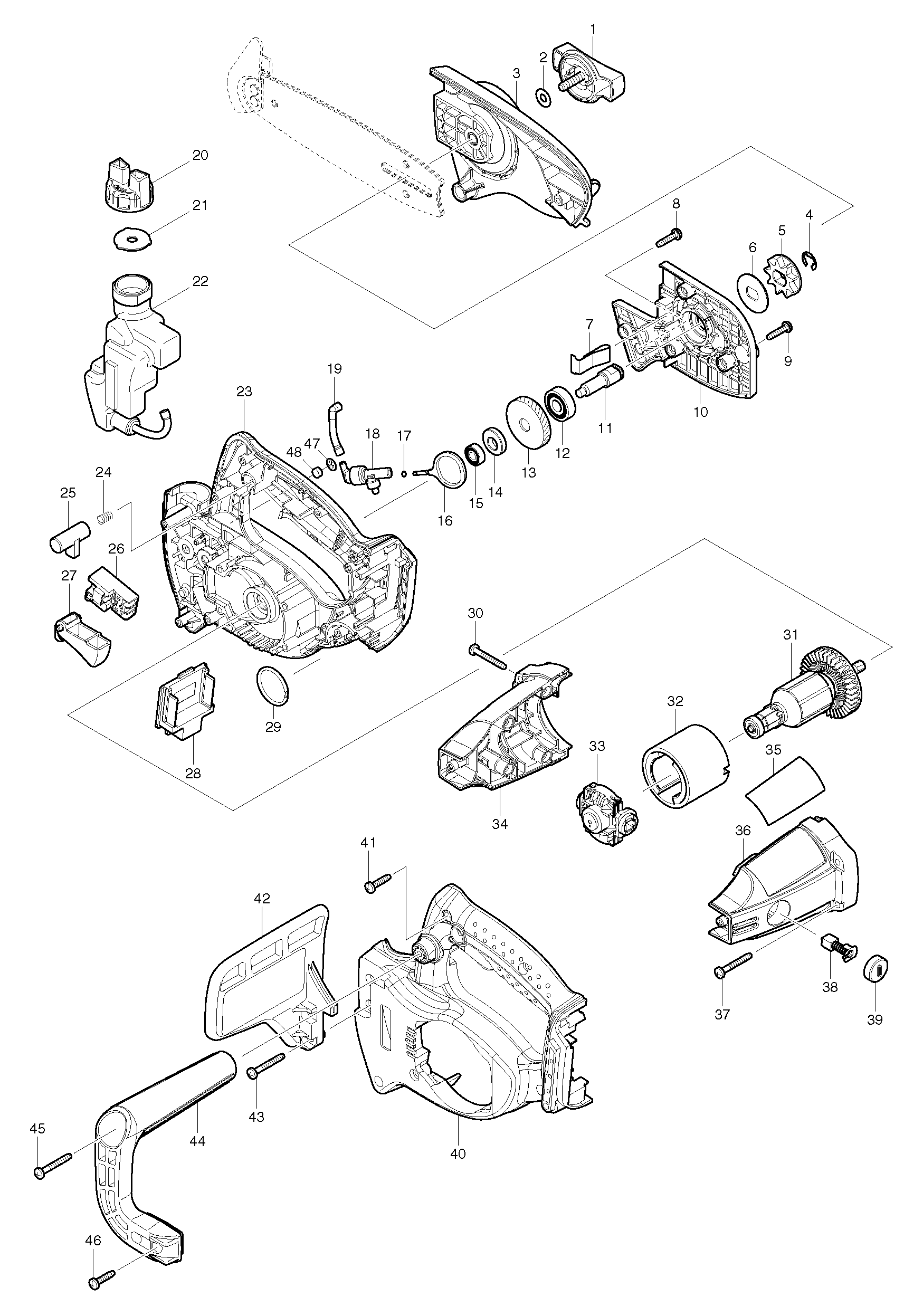

Sheet 1: Makita BUC122 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 158472-4 | Makita 158472-4 KNOB 60 COMPLETEBUC122 |
| 2 | 267004-7 | Makita 267004-7 FLAT WASHER 6 |
| 3 | 158471-6 | Makita 158471-6 SPROCKET COVER COMPLBUC122 |
| 4 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 5 | 221527-9 | Makita 221527-9 SPROCKET 9BUC122 |
| 6 | 267732-4 | Makita 267732-4 LOCK WASHER 12BUC122 |
| 7 | 232238-1 | Makita 232238-1 LEAF SPRING, BUC122 |
| 8 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 9 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 10 | 450213-7 | Makita 450213-7 BEARING HOUSINGBUC122 |
| 11 | 323806-2 | Makita 323806-2 SPINDLE, BUC122 |
| 12 | 211051-0 | Makita 211051-0 BALL BEARING 609LLB, HR2412 |
| 13 | 226673-3 | Makita 226673-3 HELICAL GEAR 50, UC121D |
| 14 | 450436-7 | Makita 450436-7 CAMBUC122 |
| 15 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 16 | 450435-9 | Makita 450435-9 CRANKBUC122 |
| 17 | 213993-4 | Makita 213993-4 O-RING 1.5BUC122 |
| 18 | 158571-2 | Makita 158571-2 OIL PUMP COMPLETEBUC122 |
| 19 | 421615-4 | Makita 421615-4 CONNECTORBUC122 |
| 20 | 158810-0 | Makita 158810-0 TANK CAP COMPLETEBUC122 |
| 21 | ||
| 22 | 158634-4 | Makita 158634-4 OIL TANK COMPLETEBUC122 |
| 23 | 188472-0 | Makita 188472-0 HANDLE SETBUC122 |
| 24 | 231470-4 | Makita 231470-4 COMPRESSION SPRING 6 |
| 25 | 416178-3 | Makita 416178-3 LOCK OFF BUTTON, UC3020A |
| 26 | 651956-6 | OTHR MAKITA SWITCH BHS630 BUC250RD BSS610 650631-1 651956-6 651988-3 |
| 27 | 450212-9 | Makita 450212-9 SWITCH LEVERBUC122 |
| 28 | 643812-4 | Makita 643812-4 TERMINAL |
| 29 | 257264-9 | Makita 257264-9 RING 30BUC122 |
| 30 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 31 | 619225-1 | Makita 619225-1 Armature for BUC122 DUC122 |
| 32 | 638138-7 | Makita 638138-7 Yoke Unit for MT560 6317D 6337D 6347D |
| 33 | 638608-6 | Makita 638608-6 END BELL COMPLETE, UC121D |
| 34 | 188468-1 | Makita 188468-1 MOTOR HOUSING SET, BUC122 |
| 35 | 864638-3 | Makita 864638-3 BUC122 NAME PLATEBUC122 |
| 36 | 188468-1 | Makita 188468-1 MOTOR HOUSING SET, BUC122 |
| 37 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 38 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 39 | 643954-4 | Makita 643954-4 Holder Cap for BGA452 GA452D |
| 40 | 188472-0 | Makita 188472-0 HANDLE SETBUC122 |
| 41 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 42 | 158474-0 | Makita 158474-0 FRONT HAND GUARD COMBUC122 |
| 43 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 44 | 450217-9 | Makita 450217-9 FRONT HANDLEBUC122 |
| 45 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 46 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 47 | 259041-5 | Makita 259041-5 PUSH NUT 8 MUC350 |
| 48 | 443125-1 | Makita 443125-1 Filter for MUC351 |
