Makita BUB360
Makita BUB360: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BUB360: 21 positions on 1 sheet

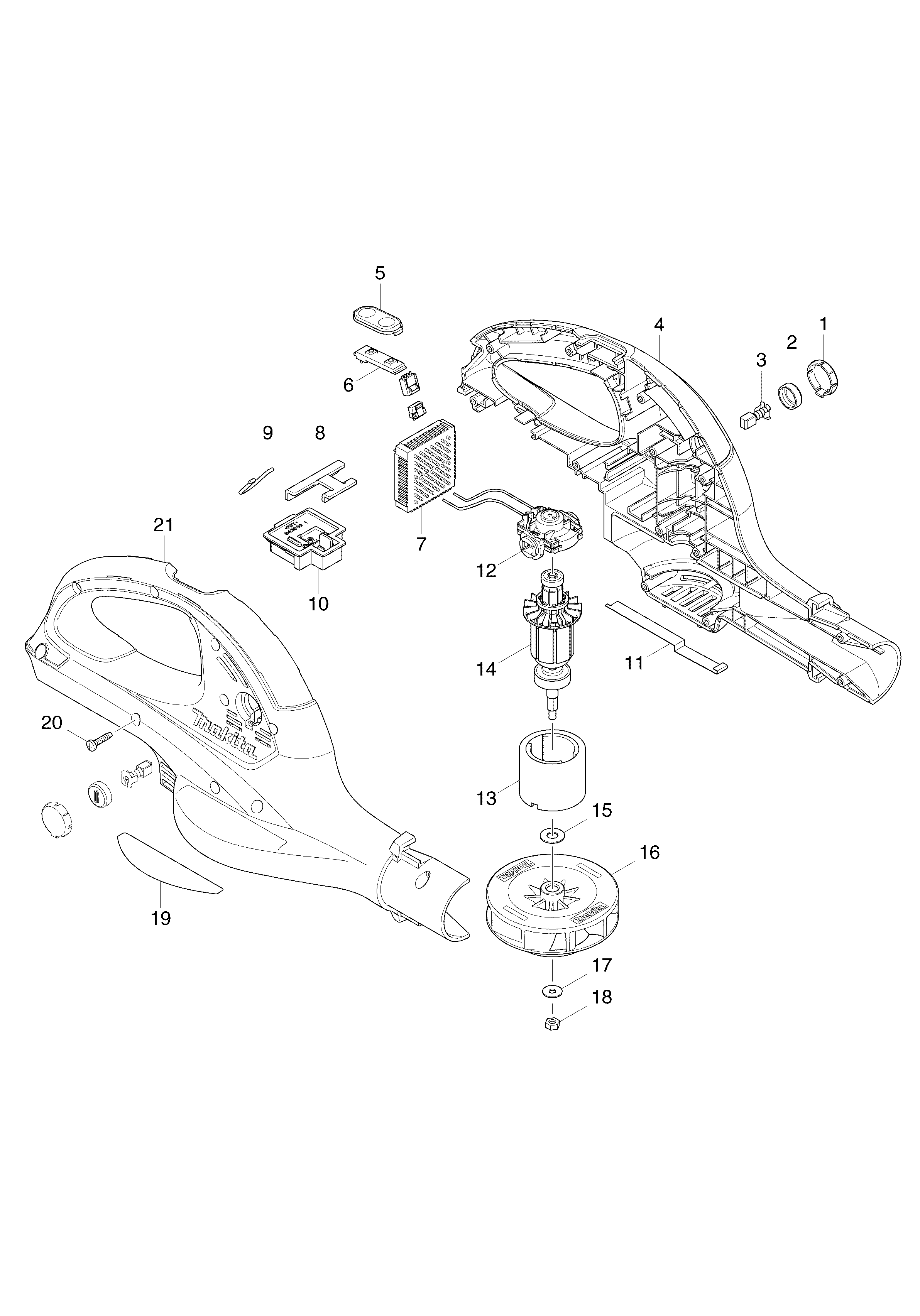

Sheet 1: Makita BUB360 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 452145-4 | Makita 452145-4 HOLDER CAP COVER |
| 2 | 643929-3 | Makita 643929-3 Holder Cap for 6213D |
| 3 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 4 | 188936-4 | Makita 188936-4 HOUSING SET |
| 5 | 140463-9 | Makita 140463-9 SWITCH PLATE COMPLETE, CL141FD |
| 6 | 631973-2 | Makita 631973-2 SWITCH UNIT, CL141FD |
| 7 | 631975-8 | Makita 631975-8 CONTROLLER |
| 8 | 346039-2 | Makita 346039-2 SUPPORT PLATE, HR261D |
| 9 | 325973-9 | Makita 325973-9 HANGER |
| 10 | 643849-1 | Makita 643849-1 TERMINAL |
| 11 | 346328-5 | Makita 346328-5 EARTH PLATE |
| 12 | 638725-2 | Makita 638725-2 ENDBELL COMPLETE, UB360D |
| 13 | 638420-4 | Makita 638420-4 Yoke Unit for CS550D |
| 14 | 619260-9 | Makita 619260-9 ARMATURE |
| 15 | 253865-1 | Makita 253865-1 FLAT WASHER 8 |
| 16 | 240124-2 | Makita 240124-2 FAN 95 |
| 17 | 253194-2 | Makita 253194-2 FLAT WASHER 5, 2012NB |
| 18 | 252177-9 | Makita 252177-9 HEX.NUT M5-8 |
| 19 | 868211-1 | |
| 20 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 21 | 188936-4 | Makita 188936-4 HOUSING SET |
