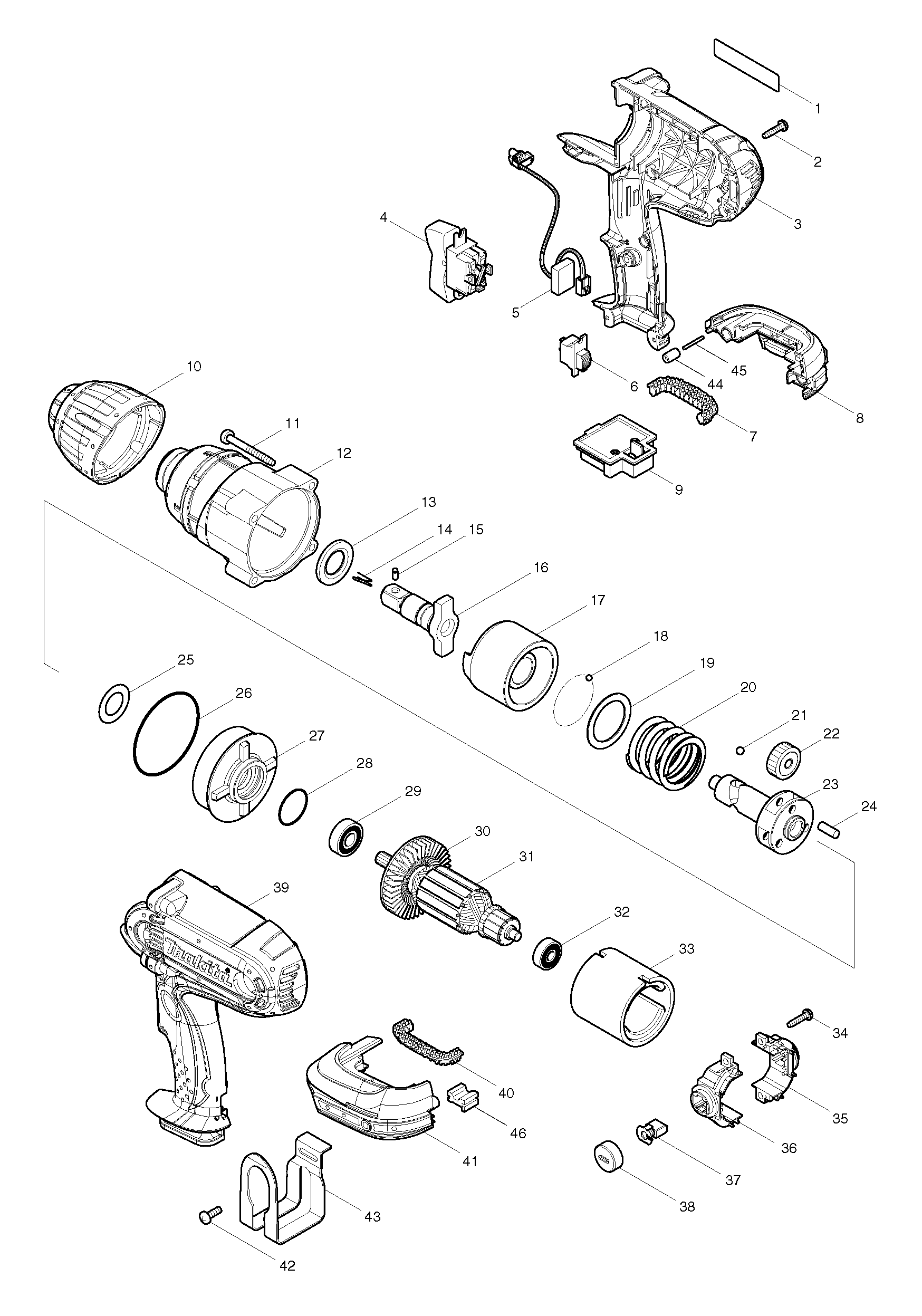

Sheet 1: Makita BTW450 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 862955-5 | Makita 862955-5 BTW450 NAME PLATEBTW450 |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 188434-8 | Makita 188434-8 HOUSING SETBTW450 |
| 4 | 651572-4 | Makita 651572-4 Swich SL220SD-19 for TW0350 |
| 5 | 631738-2 | Makita 631738-2 LIGHT CIRCUITBTW450 |
| 6 | 638503-0 | Makita 638503-0 SWITCH UNITBTW450 |
| 7 | 424042-4 | Makita 424042-4 CUSHION RUBBER, HR202D |
| 8 | 188453-4 | Makita 188453-4 BATTERY HOUSING SET, HR202D |
| 9 | 643812-4 | Makita 643812-4 TERMINAL |
| 10 | 421971-2 | Makita 421971-2 BUMPERBTW450 |
| 11 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 12 | 158076-2 | Makita 158076-2 HAMMER CASE COMPLETEBTW450 |
| 13 | 267268-3 | Makita 267268-3 FLAT WASHER 19, TW0200 |
| 14 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 15 | ||
| 16 | 324406-1 | Makita 324406-1 ANVIL TW0350 |
| 17 | 324697-4 | Makita 324697-4 HAMMERBTW450 |
| 18 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 19 | 267340-1 | Makita 267340-1 FLAT WASHER 32BTW450 |
| 20 | 233477-6 | Makita 233477-6 COMPRESSION SPRING 3BTW450 |
| 21 | 216007-8 | Makita 216007-8 STEEL BALL 6.4 |
| 22 | 227171-0 | Makita 227171-0 SPUR GEAR 23BTW450 |
| 23 | 310185-7 | Makita 310185-7 SPINDLEBTW450 |
| 24 | 256033-5 | Makita 256033-5 PIN 6 |
| 25 | 253794-8 | Makita 253794-8 FLAT WASHER 18 |
| 26 | 213722-5 | Makita 213722-5 O RING 63BTW450 |
| 27 | 227172-8 | Makita 227172-8 INTERNAL GEAR 53BTW450 |
| 28 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 29 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 31 | 519199-5 | Makita 519199-5 Armature Ass'y 18V for BTW450 DTW450 |
| 32 | 210025-8 | Makita 210025-8 BALL BEARING 627LLB, 9035 |
| 33 | 638107-8 | Makita 638107-8 YOKE UNITE, MT560 |
| 34 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 35 | 643818-2 | Makita 643818-2 BRUSH HOLDERBTW450 |
| 36 | 643823-9 | Makita 643823-9 BRUSH HOLDERBTW450 |
| 37 | 194435-6 | Makita 194435-6 CB-441 Carbon Brushes BHS630 BHR202 BSR730 BJR181 BSS610 |
| 38 | 643941-3 | Makita 643941-3 Brush Holder Cap for BJR181 |
| 39 | 188434-8 | Makita 188434-8 HOUSING SETBTW450 |
| 40 | 424042-4 | Makita 424042-4 CUSHION RUBBER, HR202D |
| 41 | 188453-4 | Makita 188453-4 BATTERY HOUSING SET, HR202D |
| 42 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 43 | 345736-7 | Makita 345736-7 HOOK, TW450D |
| 44 | 263036-2 | Makita 263036-2 RUBBER PIN 5BTW251 |
| 45 | 268184-2 | Makita 268184-2 PIN 1.5BTW251 |
| 46 | 424026-2 | Makita 424026-2 CUSHION, HP452D |
