Makita BTW150: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BTW150: 41 positions on 1 sheet

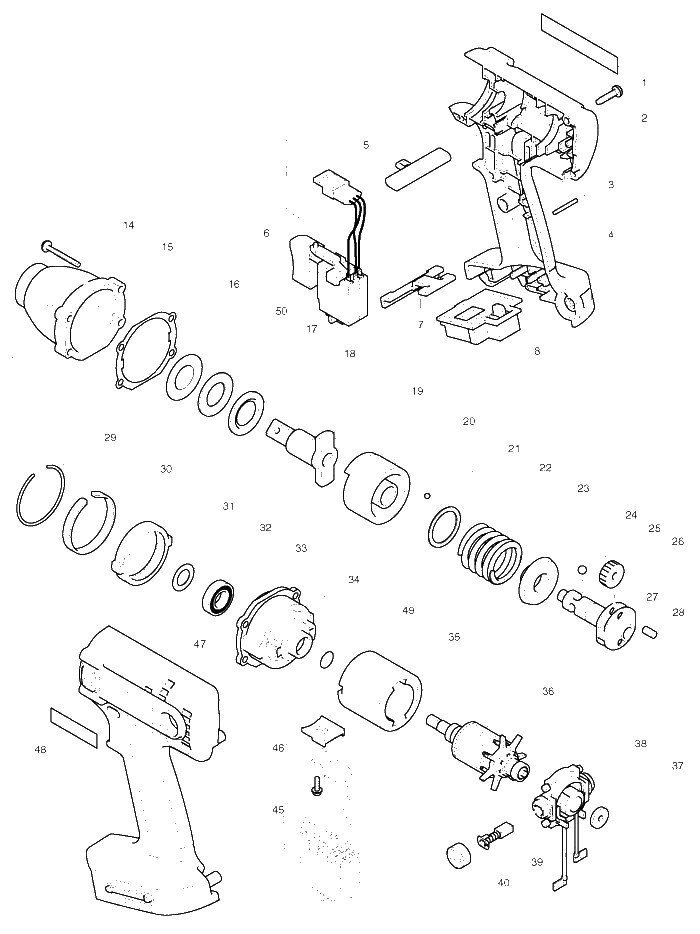

Sheet 1: Makita BTW150 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 853111-8 | |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 183368-0 | |
| 4 | 256176-3 | Makita 256176-3 PIN 2.5 |
| 5 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 6 | 650512-9 | |
| 7 | 344898-8 | Makita 344898-8 SUPPORT PLATE |
| 8 | 643983-7 | Makita 643983-7 TERMINAL BDF430F |
| 14 | 266295-7 | |
| 15 | 152894-0 | |
| 16 | 417660-5 | |
| 17 | 261120-7 | |
| 18 | 267227-7 | |
| 19 | 324176-2 | |
| 20 | 324174-6 | |
| 21 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 22 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 23 | 233317-8 | |
| 24 | 267759-4 | Makita 267759-4 CUP WASHER 146952 |
| 25 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 26 | 226336-1 | Makita 226336-1 SPUR GEAR 22, 6935FD |
| 27 | 324090-2 | Makita 324090-2 SPINDLE6952 |
| 28 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 29 | 233910-8 | Makita 233910-8 RING SPRING 436952 |
| 30 | 344991-8 | Makita 344991-8 C-SLEEVE 456952 |
| 31 | 227001-5 | Makita 227001-5 INTERNAL GEAR 51 |
| 32 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 33 | 211140-1 | Makita 211140-1 BALL BEARING 6901LLB, TD140D |
| 34 | 317467-8 | |
| 35 | 638072-1 | |
| 36 | 619068-1 | |
| 37 | 421790-6 | |
| 38 | 638115-9 | |
| 39 | 193466-2 | Makita 193466-2 CARBON BRUSH CB-434 |
| 40 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 45 | 266282-6 | |
| 46 | 689106-3 | Makita 689106-3 FET SPACER BDF430F |
| 47 | 183368-0 | |
| 48 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 49 | 213130-0 | |
| 50 | 267235-8 |
