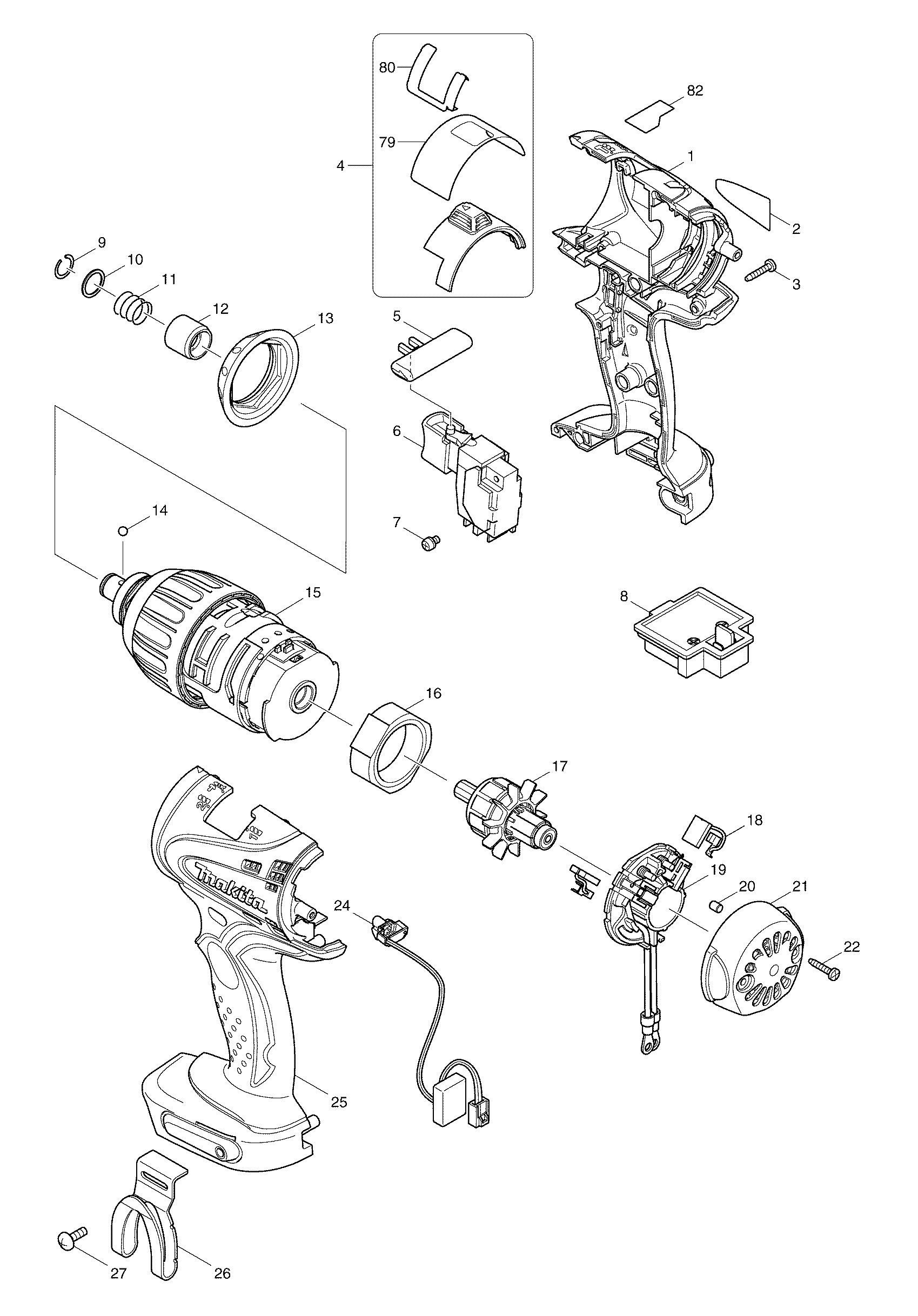

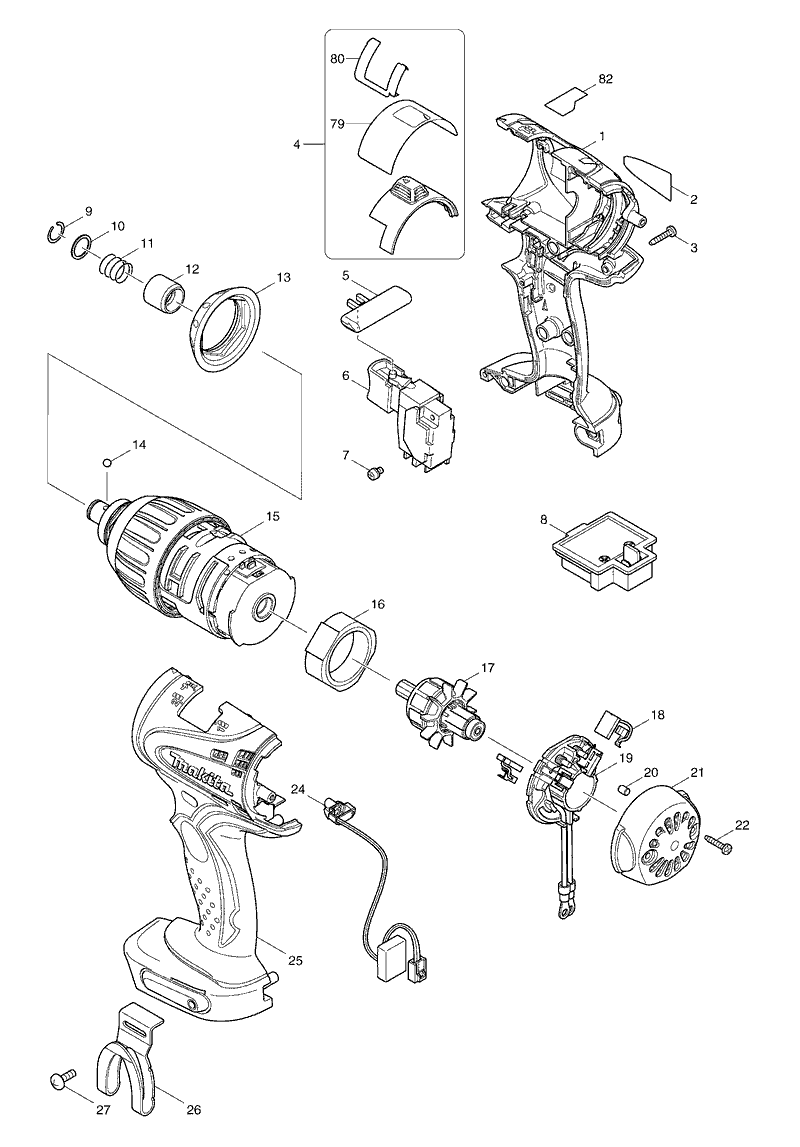

Sheet 1: Makita BTP130 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 188082-3 | Makita 188082-3 HOUSING SETBTP130 |
| 2 | 862289-6 | Makita 862289-6 BTP130 NAME PLATEBTP130 |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 6 | 650568-2 | Makita 650568-2 Switch TG553FSB-2 for BTP140 BTP130 |
| 7 | 652045-0 | Makita 652045-0 PAN HEAD SCREW M3.5*5, HP451D |
| 8 | 643811-6 | Makita 643811-6 Terminal 14.4v for BDF440 BDF441 BDA340 BUC121 |
| 9 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 10 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 11 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 12 | 324420-7 | Makita 324420-7 Sleeve for 6935FD |
| 13 | 421913-6 | Makita 421913-6 BUMPER, BTD130 |
| 14 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 15 | 125330-9 | Makita 125330-9 IMPACT ASS'YBTP130 |
| 16 | 638396-5 | Old code 638396-5 |
| 17 | 619177-6 | Makita 619177-6 ARMATUREBTP130 |
| 18 | 194159-4 | Makita 194159-4 CARBON BRUSH CB-436, BTD130 |
| 19 | 638424-6 | Makita 638424-6 Brush Holder for DF440D BTP140 BDF440 BDF450 BHP440 BHP450 |
| 20 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 21 | 418981-8 | Makita 418981-8 RearCover for BDF440 TD140D |
| 22 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 24 | 631631-0 | Makita 631631-0 LIGHT CIRCUIT, BTD130 |
| 25 | 188082-3 | Makita 188082-3 HOUSING SETBTP130 |
| 26 | 324553-8 | Makita 324553-8 HOOK, BTD130 |
| 27 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 79 | 345689-0 | Makita 345689-0 PLATE BBTP130 |
| 80 | 345690-5 | Makita 345690-5 PLATE CBTP130 |
| 82 |

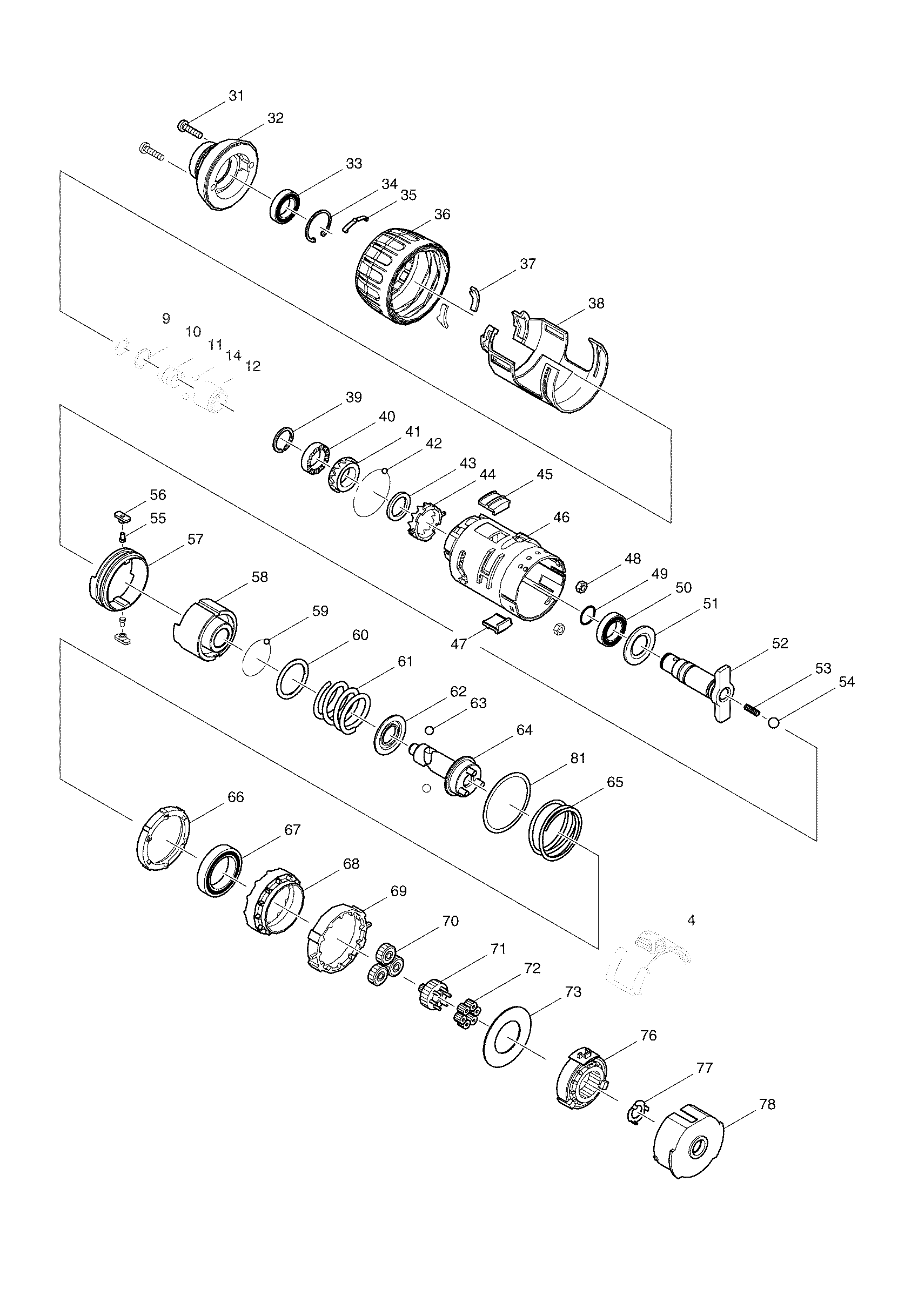

Sheet 2: Makita BTP130 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 31 | 911127-0 | Makita 911127-0 PAN HEAD SCREW M4X16BTP130 |
| 32 | 318011-4 | Makita 318011-4 HAMMER CASEBTP130 |
| 33 | 211233-4 | Makita 211233-4 BALL BEARING 6802LLBBTS130 |
| 34 | 962113-4 | Makita 962113-4 RETAINING RING R-24BTP130 |
| 35 | 232227-6 | Makita 232227-6 LEAF SPRINGBTP130 |
| 36 | 419372-6 | Makita 419372-6 CHANGE RINGBTP130 |
| 37 | 345688-2 | Makita 345688-2 PLATE ABTP130 |
| 38 | 419370-0 | Makita 419370-0 CHANGE CASEBTP130 |
| 39 | 961085-0 | Makita 961085-0 RETAINING RING WR-15BTP130 |
| 40 | 223161-1 | Makita 223161-1 CAM ABTP130 |
| 41 | 223162-9 | Makita 223162-9 CAM BBTP130 |
| 42 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 43 | 267318-4 | Makita 267318-4 FLAT WASHER 15BTP130 |
| 44 | 324655-0 | Makita 324655-0 HAMMER CHANGE LEVERBTP130 |
| 45 | 419374-2 | Makita 419374-2 PUSHER UBTP130 |
| 46 | 419369-5 | Makita 419369-5 GEAR CASEBTP130 |
| 47 | 419375-0 | Makita 419375-0 PUSHER LBTP130 |
| 48 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 49 | 213166-9 | Makita 213166-9 O-RING 12.5, TD090D |
| 50 | 211233-4 | Makita 211233-4 BALL BEARING 6802LLBBTS130 |
| 51 | 261130-4 | Makita 261130-4 NYLON WASHER 15BTP130 |
| 52 | 324661-5 | Makita 324661-5 Anvil M for BTP130 |
| 53 | 233285-5 | Makita 233285-5 COMPRESSION SPRING 9528NB |
| 54 | 216009-4 | Makita 216009-4 STEEL BALL 7.1 |
| 55 | 256495-7 | Makita 256495-7 SHOULDER PIN 3-6BTP130 |
| 56 | 419376-8 | Makita 419376-8 GUIDEBTP130 |
| 57 | 257276-2 | Makita 257276-2 RING 40BTP130 |
| 58 | 324658-4 | Makita 324658-4 HAMMERBTP130 |
| 59 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 60 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 61 | 233430-2 | Makita 233430-2 Compression Spring 24 for BTD130 DTD129RFE |
| 62 | 267766-7 | Makita 267766-7 FLAT WASHER 14, 6935FD |
| 63 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 64 | 154856-4 | Makita 154856-4 SPINDLE COMPLETEBTP130 |
| 65 | 233462-9 | Makita 233462-9 COMPRESSION SPRING 4BTP130 |
| 66 | 223163-7 | Makita 223163-7 CLUTCH CAMBTP130 |
| 67 | 211375-4 | Makita 211375-4 BALL BEARING 6805LLB, 6220D |
| 68 | 227162-1 | Makita 227162-1 INTERNAL GEAR 50BTP130 |
| 69 | 324656-8 | Makita 324656-8 CLUTCH CHANGE LEVERBTP130 |
| 70 | 227159-0 | Makita 227159-0 SPUR GEAR 22BTP130 |
| 71 | 154855-6 | Makita 154855-6 SPUR GEAR 7 COMPLETEBTP130 |
| 72 | 227160-5 | Makita 227160-5 SPUR GEAR 10BTP130 |
| 73 | 267317-6 | Makita 267317-6 FLAT WASHER 25BTP130 |
| 76 | 158106-9 | Makita 158106-9 SPEED CHANGE RING COBTP130 |
| 77 | 267799-2 | Makita 267799-2 WASHER 10BTP130 |
| 78 | 419371-8 | Makita 419371-8 MOTOR BRACKETBTP130 |
| 81 | 267337-0 | Makita 267337-0 FLAT WASHER 40BTP130 |
