Makita BTL062: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BTL062: 47 positions on 1 sheet

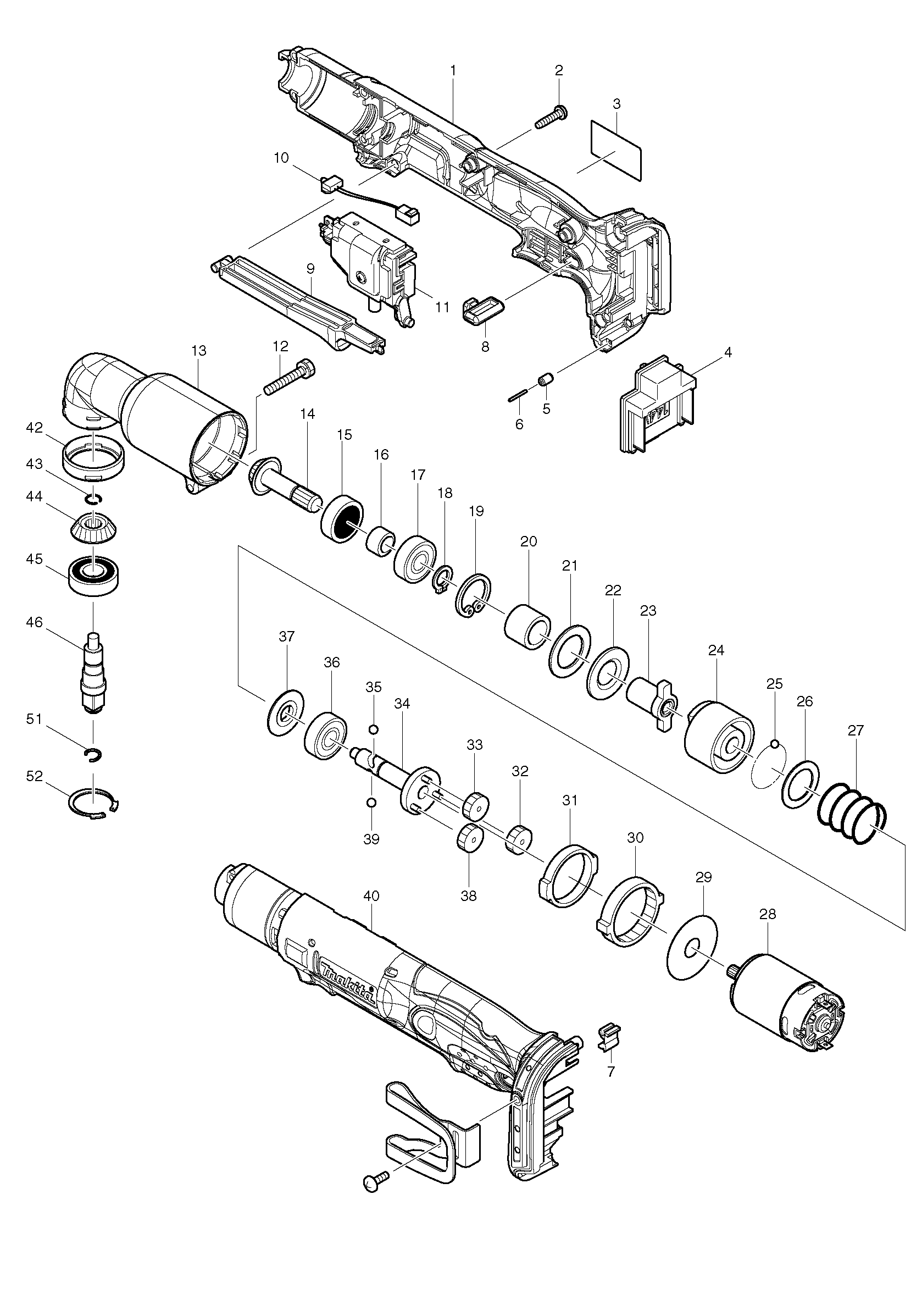

Sheet 1: Makita BTL062 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 188393-6 | Makita 188393-6 HOUSING SET BTL060BTL060 |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 864669-2 | |
| 4 | 643811-6 | Makita 643811-6 Terminal 14.4v for BDF440 BDF441 BDA340 BUC121 |
| 5 | 263036-2 | Makita 263036-2 RUBBER PIN 5BTW251 |
| 6 | 268184-2 | Makita 268184-2 PIN 1.5BTW251 |
| 7 | 424026-2 | Makita 424026-2 CUSHION, HP452D |
| 8 | 450126-2 | Makita 450126-2 FR CHANGE LEVERBTL061 |
| 9 | 450125-4 | Makita 450125-4 SWITCH LEVERBTL061 |
| 10 | 631778-0 | Makita 631778-0 LED CIRCUITBTL061 |
| 11 | 650594-1 | Makita 650594-1 Switch C3HY-1A-PLM for BTL060 BTL061 |
| 12 | 265409-5 | Makita 265409-5 + HEX. BOLT M5X30 |
| 13 | 152461-1 | Makita 152461-1 ANGLE HEAD COMPLETE |
| 14 | 226720-0 | Makita 226720-0 ZEROL BEVEL GEAR 13 |
| 15 | 211064-1 | Makita 211064-1 BALL BEARING 6000, 2414NB |
| 16 | 257660-1 | Makita 257660-1 SLEEVE 10 |
| 17 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 18 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 19 | 962105-3 | Makita 962105-3 RETAINING RING R-32, GA4030 |
| 20 | 257662-7 | Makita 257662-7 SLEEVE 15 |
| 21 | 261095-0 | Makita 261095-0 RUBBER WASHER 21 |
| 22 | 267120-5 | Makita 267120-5 FLAT WASHER 15 |
| 23 | 322689-7 | Makita 322689-7 ANVIL |
| 24 | 322688-9 | Makita 322688-9 HAMMER |
| 25 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 26 | 267121-3 | Makita 267121-3 FLAT WASHER 20 HR4000C |
| 27 | 233107-9 | Makita 233107-9 COMPRESSION SPRING 22 |
| 28 | 629844-5 | Makita 629844-5 DC MOTOR BTL060/BTL062 |
| 29 | 267053-4 | Makita 267053-4 FLAT WASHER 12 |
| 30 | 226280-2 | Makita 226280-2 INTERNAL GEAR 69 |
| 31 | 257187-1 | Makita 257187-1 RING 32 |
| 32 | 226279-7 | Makita 226279-7 SPUR GEAR 29 |
| 33 | 226279-7 | Makita 226279-7 SPUR GEAR 29 |
| 34 | 154416-2 | Makita 154416-2 SPINDLE COMPLETE |
| 35 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 36 | 211064-1 | Makita 211064-1 BALL BEARING 6000, 2414NB |
| 37 | 322719-4 | Makita 322719-4 WASHER 10 |
| 38 | 226279-7 | Makita 226279-7 SPUR GEAR 29 |
| 39 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 40 | 188393-6 | Makita 188393-6 HOUSING SET BTL060BTL060 |
| 42 | 424044-0 | Makita 424044-0 RUBBER RING 32BTL061 |
| 43 | 231990-8 | Makita 231990-8 RING SPRING 9 6940D |
| 44 | 226721-8 | Makita 226721-8 ZEROL BEVEL GEAR 13 6940D |
| 45 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 46 | 324026-1 | Makita 324026-1 SPINDLE BTL062,063 |
| 51 | 231964-9 | Makita 231964-9 RING SPRING 7, 6933FD |
| 52 | 962116-8 | Makita 962116-8 RETAINING RING R-28 |
