Makita BTD140: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BTD140: 41 positions on 1 sheet

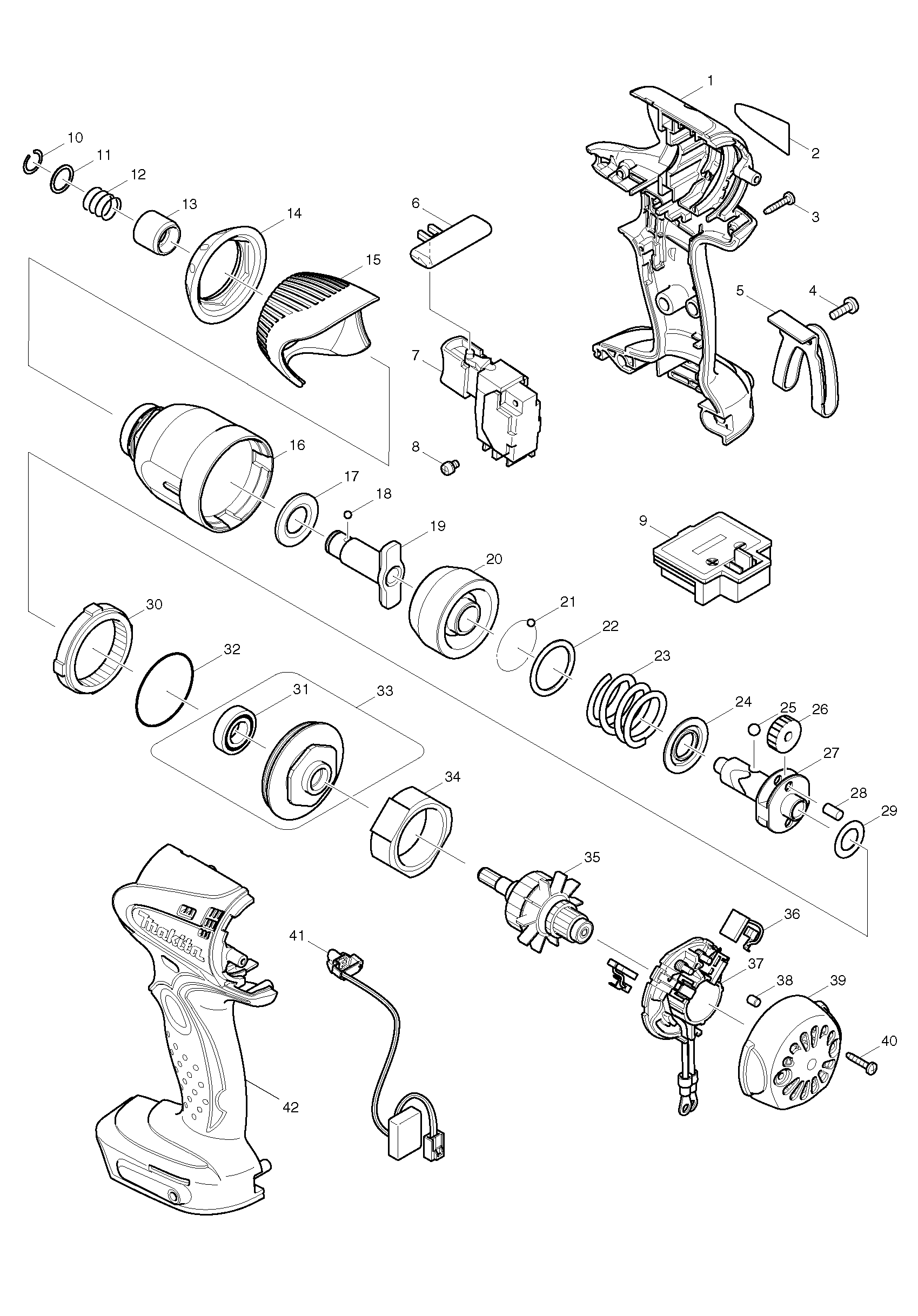

Sheet 1: Makita BTD140 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 188030-2 | Makita 188030-2 HOUSING SETBTD140 |
| 2 | 861805-1 | Makita 861805-1 BTD140 NAME PLATEBTD140 |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 5 | 324553-8 | Makita 324553-8 HOOK, BTD130 |
| 6 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 7 | 650564-0 | Makita 650564-0 Switch BTD130F BTD140 BTD 142 BTS130 BTW250 BTW251 |
| 8 | 652045-0 | Makita 652045-0 PAN HEAD SCREW M3.5*5, HP451D |
| 9 | 643812-4 | Makita 643812-4 TERMINAL |
| 10 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 11 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 12 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 13 | 324420-7 | Makita 324420-7 Sleeve for 6935FD |
| 14 | 421913-6 | Makita 421913-6 BUMPER, BTD130 |
| 15 | 419042-7 | Makita 419042-7 HAMMER CASE COVER, BTD130 |
| 16 | 154590-6 | Makita 154590-6 Hammer Case Complete BTD130F BTD132 BTD133 BTD140 BTD144 |
| 17 | 261108-7 | Makita 261108-7 NYLON WASHER 14, 6935FD |
| 18 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 19 | 324432-0 | Makita 324432-0 Anvil M for 6935FD |
| 20 | 324583-9 | Makita 324583-9 HAMMER, TD140D |
| 21 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 22 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 23 | 233430-2 | Makita 233430-2 Compression Spring 24 for BTD130 DTD129RFE |
| 24 | 267766-7 | Makita 267766-7 FLAT WASHER 14, 6935FD |
| 25 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 26 | 226336-1 | Makita 226336-1 SPUR GEAR 22, 6935FD |
| 27 | 324552-0 | Makita 324552-0 SPINDLE, TD130D |
| 28 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 29 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 30 | 227150-8 | Makita 227150-8 INTERNAL GEAR 51, TD130D |
| 31 | 211140-1 | Makita 211140-1 BALL BEARING 6901LLB, TD140D |
| 32 | 213507-9 | Makita 213507-9 O-RING 40, TD140D |
| 34 | 638396-5 | Old code 638396-5 |
| 35 | 619172-6 | Makita 619172-6 ARMATUREBTD140 |
| 36 | 194159-4 | Makita 194159-4 CARBON BRUSH CB-436, BTD130 |
| 37 | 638387-6 | Makita 638387-6 Brush Holder Complete for TD130D |
| 38 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 39 | 418981-8 | Makita 418981-8 RearCover for BDF440 TD140D |
| 40 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 41 | 631693-8 | Makita 631693-8 Light Circuit TD124D BTD140SFE |
| 42 | 188030-2 | Makita 188030-2 HOUSING SETBTD140 |
