All parts of Makita BTD136: 35 positions on 1 sheet

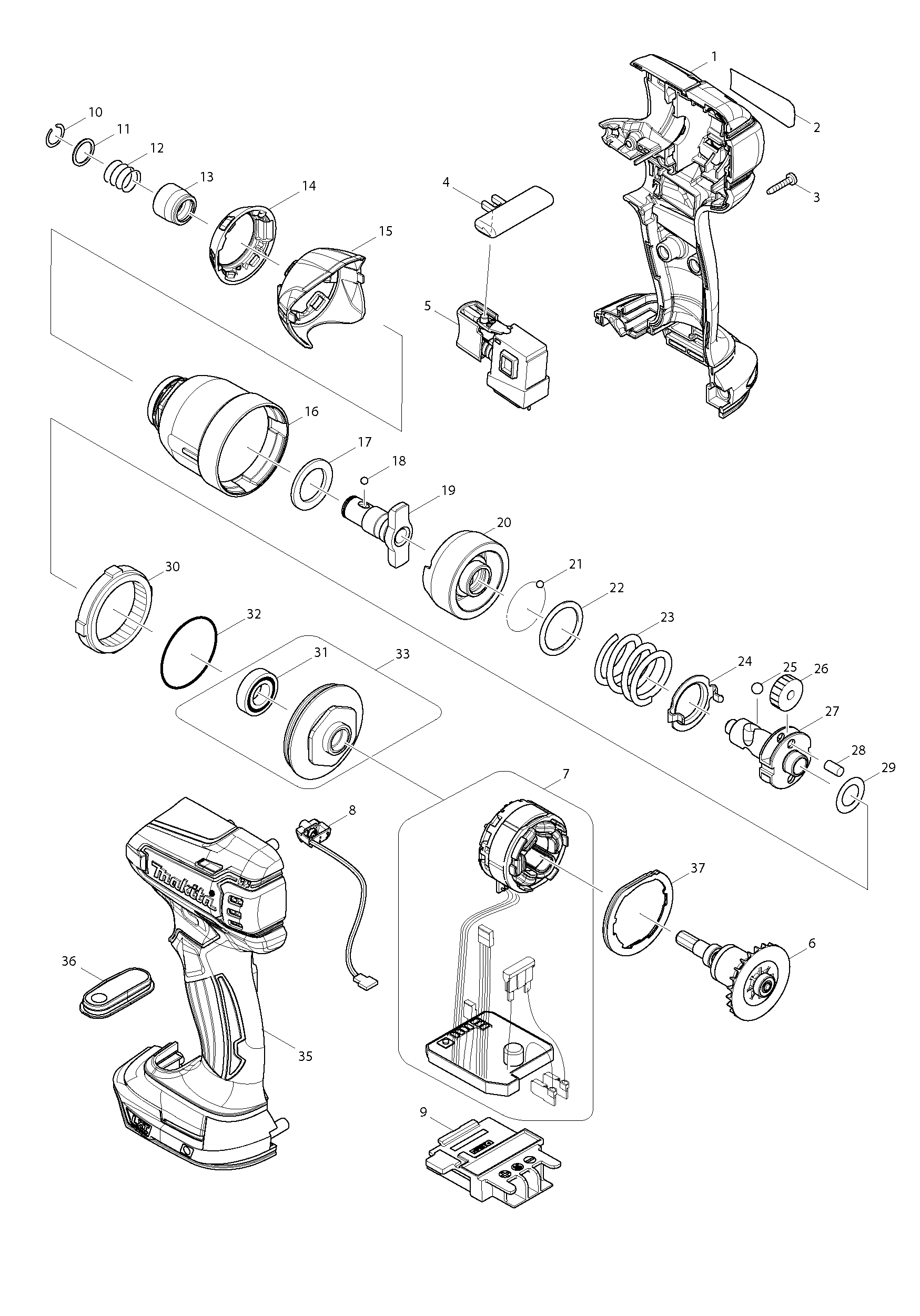

Sheet 1: Makita BTD136 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 187383-6 | Makita 187383-6 HOUSING SET |
| 2 | 897163-9 | |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 5 | 141448-8 | Makita 141448-8 SWITCH COMPLETE, BTD136 |
| 6 | 619297-6 | Makita 619297-6 ROTOR, BTD136D |
| 7 | 632A39-7 | Makita 632A39-7 STATOR UNIT, BTD136D |
| 8 | 620136-5 | Makita 620136-5 LED CIRCUIT |
| 9 | 643850-6 | Makita 643850-6 TERMINAL, CL141D |
| 10 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 11 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 12 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 13 | 326072-0 | Makita 326072-0 Bit Sleeve for TD134D |
| 14 | 424495-7 | Makita 424495-7 BUMPER, BTD136D |
| 15 | 453664-3 | Makita 453664-3 HAMMER CASE COVER, BTD136D |
| 16 | 141477-1 | Makita 141477-1 HAMMER CASE COMPL |
| 17 | 261151-6 | Makita 261151-6 Nylon Washer 19 for TD134D |
| 18 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 19 | 326071-2 | Makita 326071-2 Anvil N TD134D |
| 20 | 326054-2 | Makita 326054-2 HAMMER, TD134D |
| 21 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 22 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 23 | 233430-2 | Makita 233430-2 Compression Spring 24 for BTD130 DTD129RFE |
| 24 | 346466-3 | Makita 346466-3 PLATE, TD134D |
| 25 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 26 | 227233-4 | Makita 227233-4 Spur Gear |
| 27 | 326066-5 | Makita 326066-5 SPINDLE, TD134D |
| 28 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 29 | 253362-7 | Makita 253362-7 THIN WASHER12, TD134D |
| 30 | 227150-8 | Makita 227150-8 INTERNAL GEAR 51, TD130D |
| 31 | 211140-1 | Makita 211140-1 BALL BEARING 6901LLB, TD140D |
| 32 | 213507-9 | Makita 213507-9 O-RING 40, TD140D |
| 35 | 187383-6 | Makita 187383-6 HOUSING SET |
| 36 | 141583-2 | Makita 141583-2 SWITCH PLATE COMPLETE, BTD136 |
| 37 | 453665-1 | Makita 453665-1 BAFFLE PLATE, BTD136D |
