Makita BTD134
Makita BTD134: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BTD134: 43 positions on 1 sheet

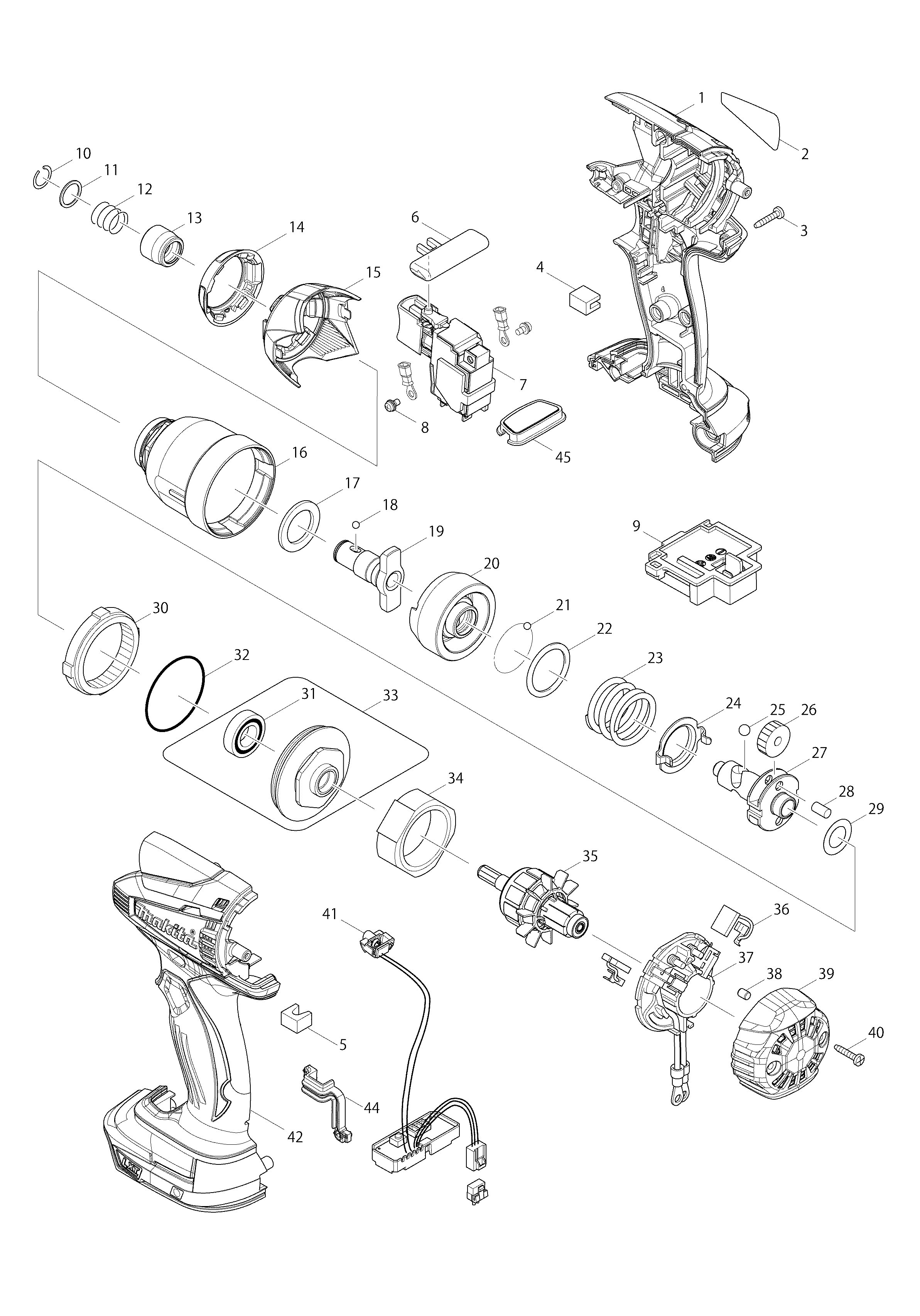

Sheet 1: Makita BTD134 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 187114-3 | Makita 187114-3 HOUSING SET, TD134D |
| 2 | 896205-6 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 423423-9 | Makita 423423-9 SPONGE B, TD134D |
| 5 | 423422-1 | Makita 423422-1 SPONGE A, TD134D |
| 6 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 7 | 650241-4 | OLDN Makita 650241-4 SWITCH, TD134D (650722-8) |
| 8 | 652045-0 | Makita 652045-0 PAN HEAD SCREW M3.5*5, HP451D |
| 9 | 643854-8 | Makita 643854-8 TERMINAL, MUH300D |
| 10 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 11 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 12 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 13 | 326072-0 | Makita 326072-0 Bit Sleeve for TD134D |
| 14 | 424429-0 | Makita 424429-0 Bumper TD134D BTD134 BTD146 |
| 15 | 452837-5 | Makita 452837-5 Hammer Case Cover TD134D BTD134 BTD146 LXDT04 XDT04 |
| 16 | 140946-9 | Makita 140946-9 Hammer Case Complete for TD146D |
| 17 | 261151-6 | Makita 261151-6 Nylon Washer 19 for TD134D |
| 18 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 19 | 326071-2 | Makita 326071-2 Anvil N TD134D |
| 20 | 326054-2 | Makita 326054-2 HAMMER, TD134D |
| 21 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 22 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 23 | 233430-2 | Makita 233430-2 Compression Spring 24 for BTD130 DTD129RFE |
| 24 | 346466-3 | Makita 346466-3 PLATE, TD134D |
| 25 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 26 | 227233-4 | Makita 227233-4 Spur Gear |
| 27 | 326066-5 | Makita 326066-5 SPINDLE, TD134D |
| 28 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 29 | 253362-7 | Makita 253362-7 THIN WASHER12, TD134D |
| 30 | 227150-8 | Makita 227150-8 INTERNAL GEAR 51, TD130D |
| 31 | 211140-1 | Makita 211140-1 BALL BEARING 6901LLB, TD140D |
| 32 | 213507-9 | Makita 213507-9 O-RING 40, TD140D |
| 34 | 638396-5 | Old code 638396-5 |
| 35 | 619244-7 | Makita 619244-7 ARMATURE, TD130D |
| 36 | 194427-5 | Makita 194427-5 Carbon Brushes CB440 for BDF440 BDF441 BHP451 DF451D |
| 37 | 638895-7 | Makita 638895-7 Brush Holder for BDT130 BTD134 BTD140 |
| 38 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 39 | 452832-5 | Makita 452832-5 Rear Cover for TD134D BTD134 BTD146 LXDT04 |
| 40 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 41 | 620051-3 | Makita 620051-3 LIGHA CIRCUIT 14.4V, TD134D |
| 42 | 187114-3 | Makita 187114-3 HOUSING SET, TD134D |
| 44 | 424430-5 | Makita 424430-5 SEAL, TD134D |
| 45 | 140963-9 | Makita 140963-9 SWITCH PLATE COMPLETE, TD134D |
