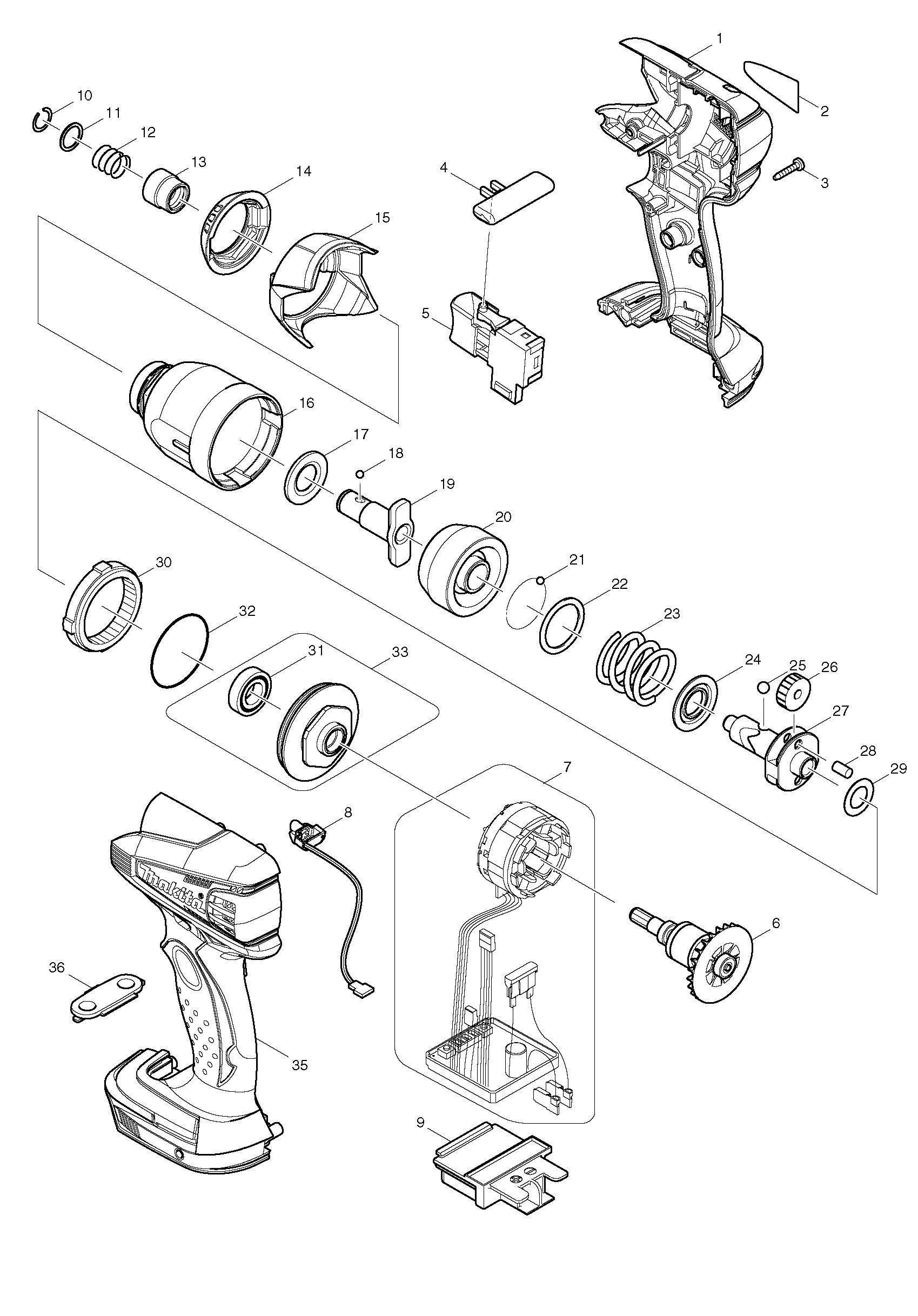

Sheet 1: Makita BTD132 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 188599-6 | Makita 188599-6 HOUSING SET, BTD132 |
| 2 | 865955-4 | |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 5 | 650607-8 | Makita 650607-8 Switch for BTD132 BTD144 |
| 6 | 619239-0 | Makita 619239-0 Rotor 14,4 - 18V BTD132 BTD133 BTD144 BTD145 LXDT01 |
| 7 | 629099-2 | Makita 629099-2 STATOR, BTD132 |
| 8 | 631829-9 | Makita 631829-9 LED CIRCUIT, BTD132 |
| 9 | 643832-8 | Makita 643832-8 TERMINAL, BTD132 |
| 10 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 11 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 12 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 13 | 324420-7 | Makita 324420-7 Sleeve for 6935FD |
| 14 | 424153-5 | Makita 424153-5 Bumper for BTD132 |
| 15 | 450792-5 | Makita 450792-5 Hammer Case Cover for BTD132 |
| 16 | 154590-6 | Makita 154590-6 Hammer Case Complete BTD130F BTD132 BTD133 BTD140 BTD144 |
| 17 | 261108-7 | Makita 261108-7 NYLON WASHER 14, 6935FD |
| 18 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 19 | 324432-0 | Makita 324432-0 Anvil M for 6935FD |
| 20 | 324583-9 | Makita 324583-9 HAMMER, TD140D |
| 21 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 22 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 23 | 233430-2 | Makita 233430-2 Compression Spring 24 for BTD130 DTD129RFE |
| 24 | 267766-7 | Makita 267766-7 FLAT WASHER 14, 6935FD |
| 25 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 26 | 227233-4 | Makita 227233-4 Spur Gear |
| 27 | 324552-0 | Makita 324552-0 SPINDLE, TD130D |
| 28 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 29 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 30 | 227150-8 | Makita 227150-8 INTERNAL GEAR 51, TD130D |
| 31 | 211140-1 | Makita 211140-1 BALL BEARING 6901LLB, TD140D |
| 32 | 213507-9 | Makita 213507-9 O-RING 40, TD140D |
| 35 | 188599-6 | Makita 188599-6 HOUSING SET, BTD132 |
| 36 | 158856-6 | Makita 158856-6 SWITCH PLATE COMPL, BTD132 |
