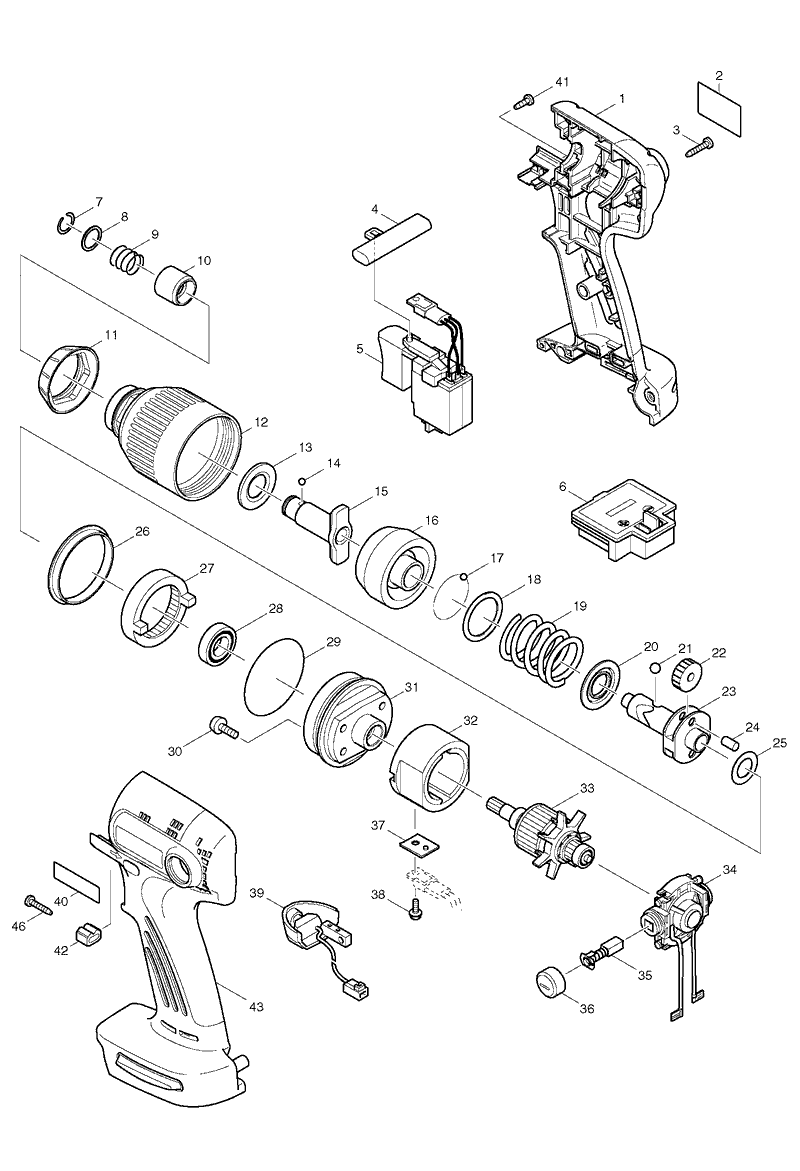

Sheet 1: Makita BTD123F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183733-3 | Makita 183733-3 HOUSING SET FOR, BTD123F |
| 2 | 860714-1 | Makita 860714-1 NAME PLATE, BTD123F |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 5 | 650530-7 | Makita 650530-7 SWITCH C3LA-1A-TDL FOR TD123D |
| 6 | 643983-7 | Makita 643983-7 TERMINAL BDF430F |
| 7 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 8 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 9 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 10 | 324420-7 | Makita 324420-7 Sleeve for 6935FD |
| 11 | 421847-3 | Makita 421847-3 BUMPER, 6980FD |
| 12 | 153397-7 | Makita 153397-7 HAMMER CASE COMP, BTD123F |
| 13 | 261108-7 | Makita 261108-7 NYLON WASHER 14, 6935FD |
| 14 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 15 | 324432-0 | Makita 324432-0 Anvil M for 6935FD |
| 16 | 324262-9 | Makita 324262-9 HAMMER, TD122D |
| 17 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 18 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 19 | 233274-0 | |
| 20 | 267766-7 | Makita 267766-7 FLAT WASHER 14, 6935FD |
| 21 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 22 | 226336-1 | Makita 226336-1 SPUR GEAR 22, 6935FD |
| 23 | 324220-5 | Makita 324220-5 SPINDLE, 6935FD |
| 24 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 25 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 26 | 257254-2 | Makita 257254-2 RING 41, 6935FD |
| 27 | 227043-9 | Makita 227043-9 INTERNAL GEAR 51 |
| 28 | 211140-1 | Makita 211140-1 BALL BEARING 6901LLB, TD140D |
| 29 | 213620-3 | Makita 213620-3 O RING, 5704R |
| 30 | 911516-9 | Makita 911516-9 PAN HEAD SCREW M4X12, 6935FD |
| 31 | 317597-5 | Makita 317597-5 INTERNAL GEAR CASE, 6935FD |
| 32 | 638359-1 | Makita 638359-1 YORK UNIT, BFS230F |
| 33 | 619084-3 | Makita 619084-3 Armature 6980FD |
| 34 | 638156-5 | Makita 638156-5 END BELL COMPLETE, 6935FD |
| 35 | 193466-2 | Makita 193466-2 CARBON BRUSH CB-434 |
| 36 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 37 | 689096-0 | Makita 689096-0 FET SPACER, 6935FD |
| 38 | 266170-7 | Makita 266170-7 TAPPING SCREW ST3X8 |
| 39 | 631579-6 | Makita 631579-6 LIGHT CIRCUIT, BTD123F |
| 40 | 819720-3 | Makita 819720-3 MAKITA LABEL |
| 41 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 42 | 313116-5 | Makita 313116-5 RACK FOR 6954SPK |
| 43 | 183733-3 | Makita 183733-3 HOUSING SET FOR, BTD123F |
| 46 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
