Makita BTD062
Makita BTD062: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BTD062: 38 positions on 1 sheet

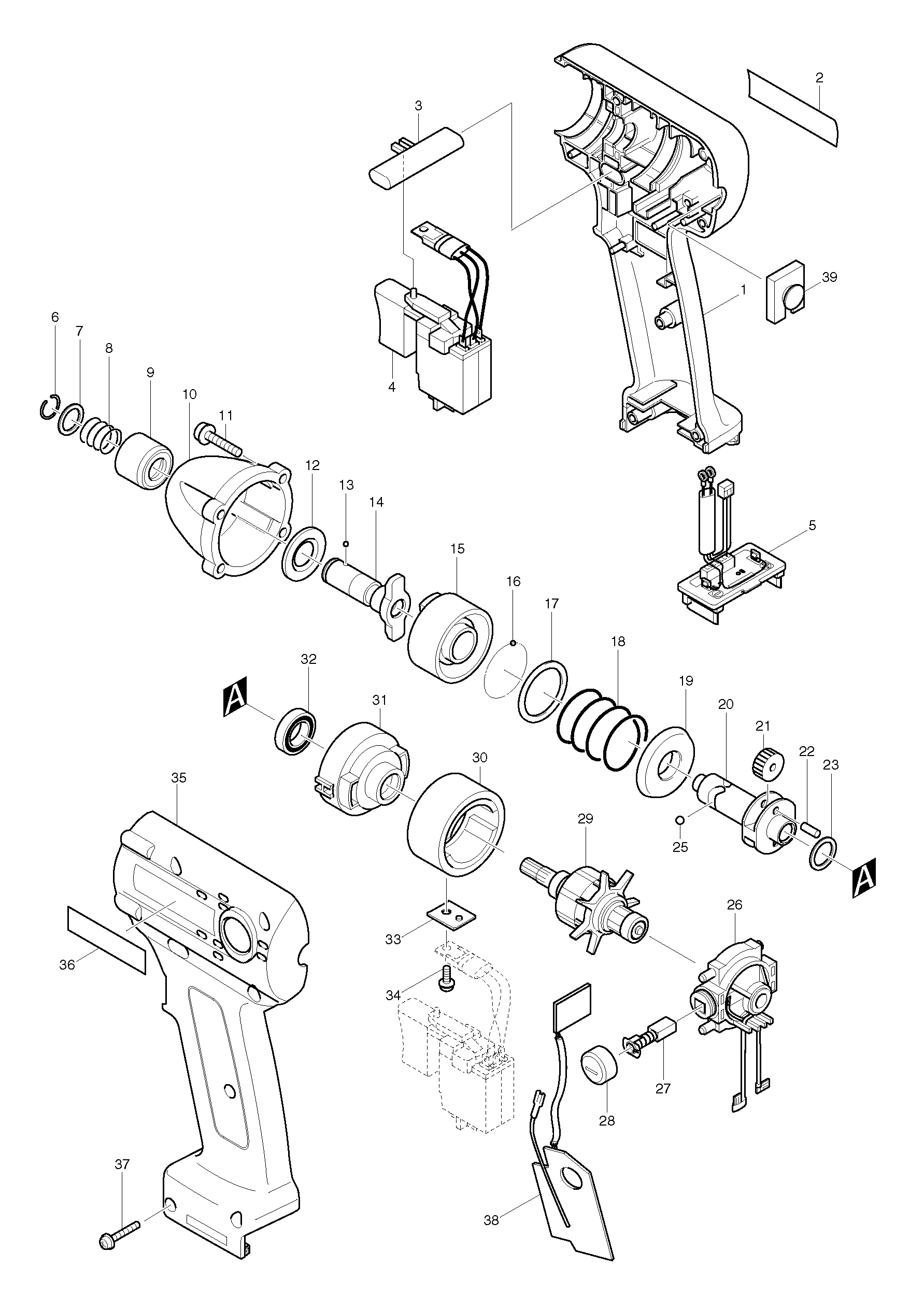

Sheet 1: Makita BTD062 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183388-4 | |
| 2 | 853316-0 | |
| 3 | 417283-9 | Makita 417283-9 F/R Change Lever for 6260D |
| 4 | 650516-1 | |
| 5 | 638085-2 | Makita 638085-2 TERMINAL UNIT |
| 6 | 231965-7 | Makita 231965-7 RING SPRING 10, TD090D |
| 7 | 267143-3 | Makita 267143-3 WASHER 11, TD020D |
| 8 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 9 | 162218-2 | Makita 162218-2 SLEEVE |
| 10 | 152661-3 | |
| 11 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 12 | 261117-6 | Makita 261117-6 NYLON WASHER 12 BTW072 |
| 13 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 14 | 324054-6 | Makita 324054-6 ANVIL M FOR BTW62DMZ |
| 15 | 324033-4 | Makita 324033-4 HAMMER B FOR TD060D1Z |
| 16 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 17 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 18 | 233296-0 | |
| 19 | 344907-3 | |
| 20 | 324051-2 | Makita 324051-2 SPINDLE B TD060D1Z |
| 21 | 227009-9 | |
| 22 | 268064-2 | |
| 23 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 25 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 26 | 638086-0 | |
| 27 | 191975-5 | Makita 191975-5 CARBON BRUSH CB-431 |
| 28 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 29 | 619058-4 | Makita 619058-4 ARMATURE TD060D1Z |
| 30 | 632966-2 | Makita 632966-2 YOKE UNIT TD060D1Z |
| 31 | 152772-4 | |
| 32 | 211136-2 | Makita 211136-2 BALL BEARING 6801LLB |
| 33 | 689096-0 | Makita 689096-0 FET SPACER, 6935FD |
| 34 | 266170-7 | Makita 266170-7 TAPPING SCREW ST3X8 |
| 35 | 183388-4 | |
| 36 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 37 | 911038-9 | Makita 911038-9 PAN HEAD SCREW M3X20 |
| 38 | 631452-0 | |
| 39 | 417696-4 |
