Bosch BT-EXACT 9

Bosch BT-EXACT 9 cordless screw driver: exploded parts diagram, 1 sheet, 169 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BT-EXACT 9: 169 positions on 1 sheet

Bosch BT-EXACT 9 parts list (1 sheet)

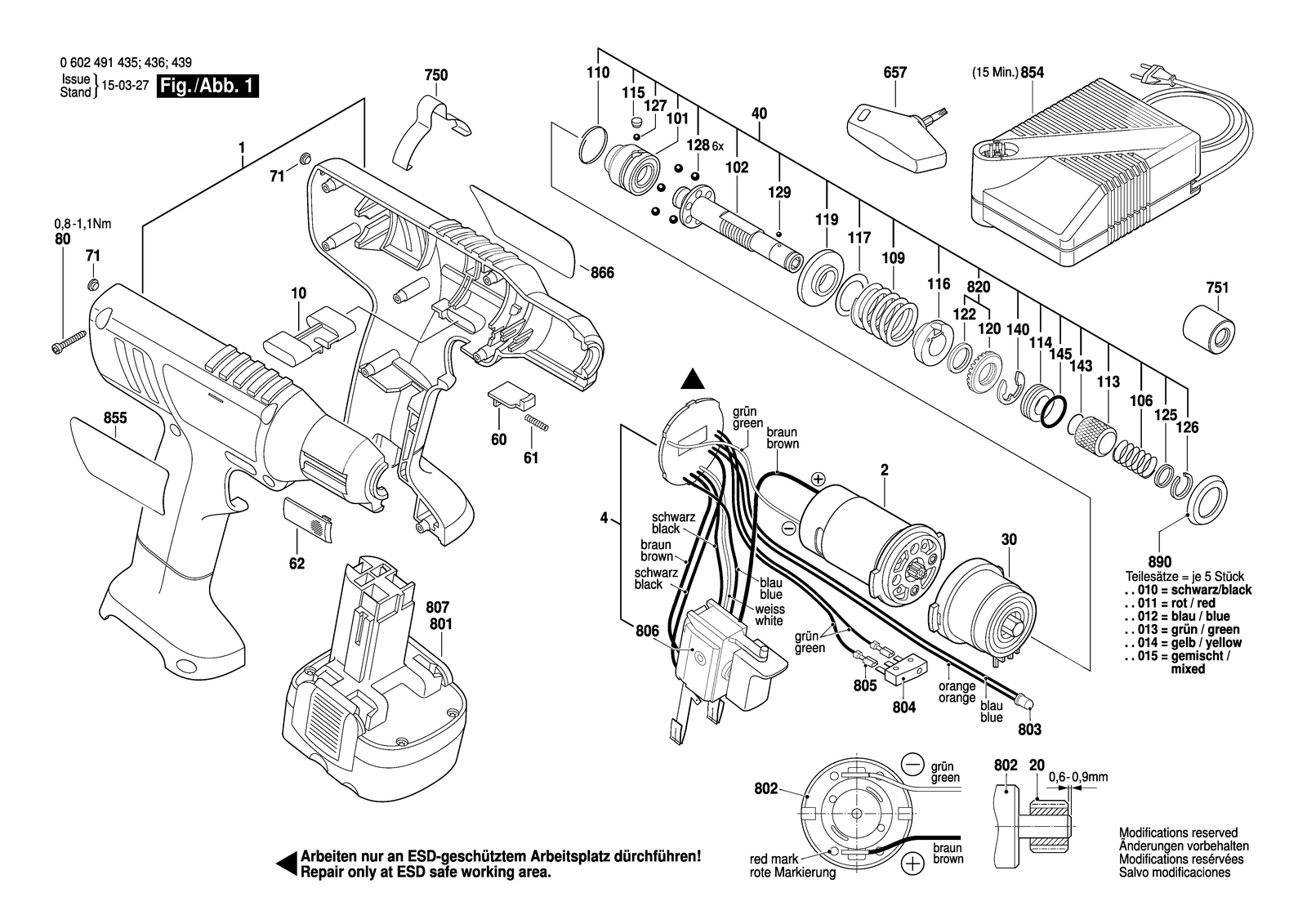

Bosch BT-EXACT 9 parts diagram, sheet 1
No.Part numberPart name
13605105027Housing Section
13605105027Housing Section
13605105027Housing Section
103601099003Switch Slide
103601099003Switch Slide
103601099003Switch Slide
1013606445043Clutch Element
1013606445043Clutch Element
1013606445043Clutch Element
1023603124023Output Shaft
1023603124023Output Shaft
1023603124023Output Shaft
1063604610011Compression Spring
1063604610011Compression Spring
1063604610011Compression Spring
1093604619020Compression Spring Blue
1093604619020Compression Spring Blue
1093604619020Compression Spring Blue
1103600224053Retaining ring
1103600224053Retaining ring
1103600224053Retaining ring
1133600499025Clamp Bushing
1133600499025Clamp Bushing
1133600499025Clamp Bushing
1143600921001Plain bearing
1143600921001Plain bearing
1143600921001Plain bearing
1153601023011Sealing plate
1153601023011Sealing plate
1153601023011Sealing plate
1163600134014Setting Ring
1163600134014Setting Ring
1163600134014Setting Ring
1171600101023Plain Washer Thick 0,5 MM
1171600101023Plain Washer Thick 0,5 MM
1171600101023Plain Washer Thick 0,5 MM
1193600190036Support Disc
1193600190036Support Disc
1193600190036Support Disc
1203603344046Catch Disk
1203603344046Catch Disk
1203603344046Catch Disk
1253600202022Thrust Ring
1253600202022Thrust Ring
1253600202022Thrust Ring
1263600224006Retaining ring
1263600224006Retaining ring
1263600224006Retaining ring
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1281903230008Ball 4,5 MM III DIN 5401-ST
1281903230008Ball 4,5 MM III DIN 5401-ST
1281903230008Ball 4,5 MM III DIN 5401-ST
1291903230003Ball DIN 5401-2,5MM-III-ST
1291903230003Ball DIN 5401-2,5MM-III-ST
1291903230003Ball DIN 5401-2,5MM-III-ST
1402916080012Locking washer DIN 6799-9-FST
1402916080012Locking washer DIN 6799-9-FST
1402916080012Locking washer DIN 6799-9-FST
1433600210038O-Ring 9,0X1,2 MM
1433600210038O-Ring 9,0X1,2 MM
1433600210038O-Ring 9,0X1,2 MM
1453600210116O-Ring
1453600210116O-Ring
1453600210116O-Ring
23607031729DC motor
23607031729DC motor
23607031731DC motor
203606328018Pinion
203606328018Pinion
203606328018Pinion
303607030490Planetary Gear Train
303607030490Planetary Gear Train
303607030490Planetary Gear Train
43607200094Electronic Assembly
43607200094Electronic Assembly
43607200094Electronic Assembly
403607031535Assembly kit
403607031535Assembly kit
403607031535Assembly kit
603601923022Switching Element
603601923022Switching Element
603601923022Switching Element
613604611022Compression Spring
613604611022Compression Spring
613604611022Compression Spring
623601923029Pusher
623601923029Pusher
623601923029Pusher
6573607950027Screwdriver
6573607950027Screwdriver
6573607950027Screwdriver
713604460132Light Conductor
713604460132Light Conductor
713604460132Light Conductor
7503601923024Suspension Loop
7503601923024Suspension Loop
7503601923024Suspension Loop
7513605500210Protective Cap 5 Piece
7513605500210Protective Cap 5 Piece
7513605500210Protective Cap 5 Piece
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
8012607335681Battery Pack 9,6V,2,6AH,NIMH
8012607335681Battery Pack 9,6V,2,6AH,NIMH
8012607335681Battery Pack 9,6V,2,6AH,NIMH
8033607600404Light-Emitting-Diode
8033607600404Light-Emitting-Diode
8033607600404Light-Emitting-Diode
8043609202762Microswitch
8043609202762Microswitch
8043609202762Microswitch
8053609202766Plug Set
8053609202766Plug Set
8053609202766Plug Set
8063607200083Switch
8063607200083Switch
8063607200083Switch
8203603344047Catch Disk
8203603344047Catch Disk
8203603344047Catch Disk
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
85516070312ARNameplate
85516070312ARNameplate
8553601119365Nameplate
8663601119360Manufacturer's nameplate
8663601119360Manufacturer's nameplate
8663601119366Manufacturer's nameplate
8903600106010Parts Set 5 Pce., Black
8903600106011Parts Set 5 Pce., Red
8903600106012Parts Set 5 Pce,. Light Blue
8903600106013Parts Set 5 Pce,. Light Green
8903600106014Parts Set 5 Pce., Orange
8903600106015Parts Set 5 Piece
8903600106010Parts Set 5 Pce., Black
8903600106011Parts Set 5 Pce., Red
8903600106012Parts Set 5 Pce,. Light Blue
8903600106013Parts Set 5 Pce,. Light Green
8903600106014Parts Set 5 Pce., Orange
8903600106015Parts Set 5 Piece
8903600106010Parts Set 5 Pce., Black
8903600106011Parts Set 5 Pce., Red
8903600106012Parts Set 5 Pce,. Light Blue
8903600106013Parts Set 5 Pce,. Light Green
8903600106014Parts Set 5 Pce., Orange
8903600106015Parts Set 5 Piece
8903600106019Parts Set White
