Bosch BT 300 HD

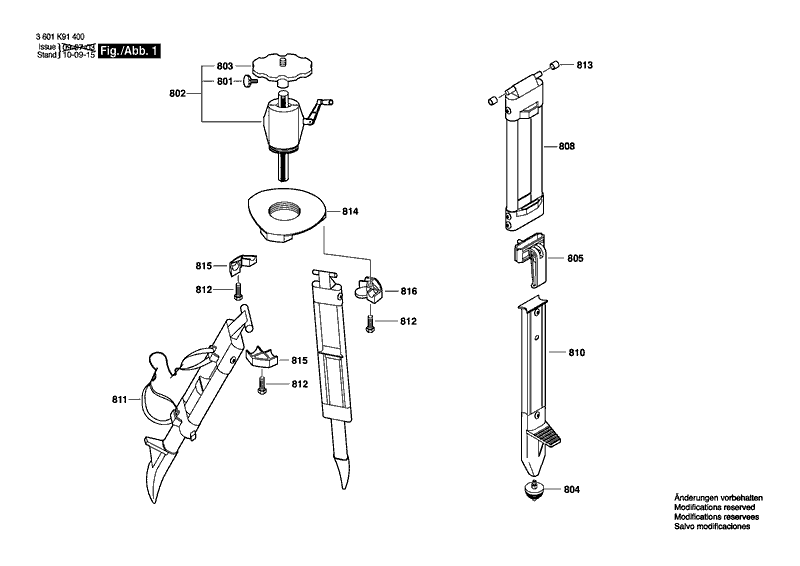

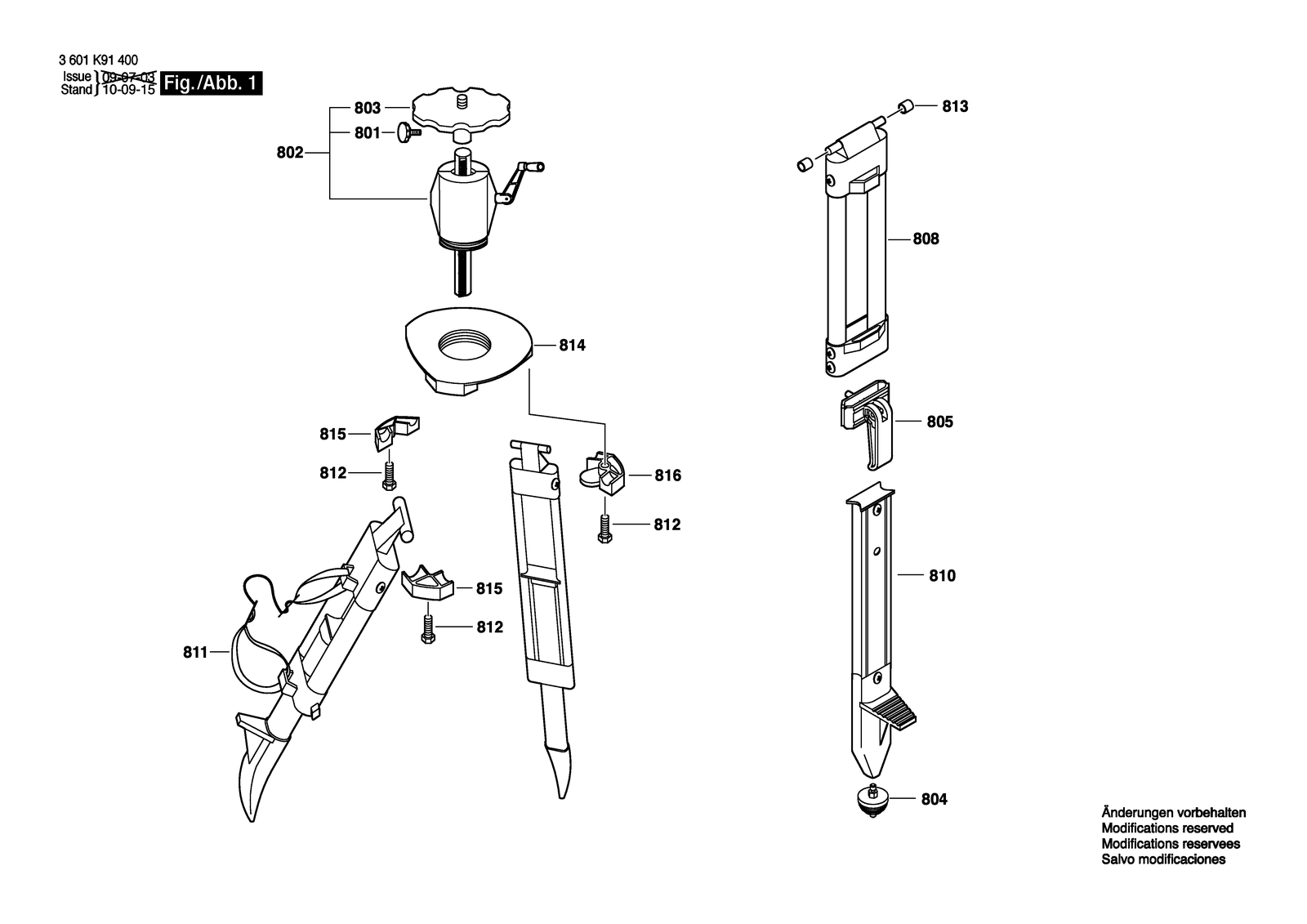

Bosch BT 300 HD stand: exploded parts diagram, 1 sheet, 13 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BT 300 HD: 13 positions on 1 sheet
Bosch BT 300 HD parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 801 | 1600A000A6 | Clamp Screw |
| 802 | 1600A000A8 | Drive Unit |
| 803 | 1600A000A5 | Turntable |
| 804 | 2610A11966 | Supporting foot |
| 805 | 1600A00093 | Clamping Unit |
| 808 | 1600A000AB | Guide |
| 810 | 1600A000AA | Stand Leg |
| 811 | 2610A09293 | Carrying Strap |
| 812 | 2610A09316 | Lock Bolt |
| 813 | 2610A09009 | Bushing |
| 814 | 2610A14492 | Head |
| 815 | 2610A14493 | Clamp |
| 816 | 2610A14606 | Swing Clamp |
