Bosch BT 170 HD stand: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BT 170 HD: 26 positions on 1 sheet

Bosch BT 170 HD parts list (1 sheet)

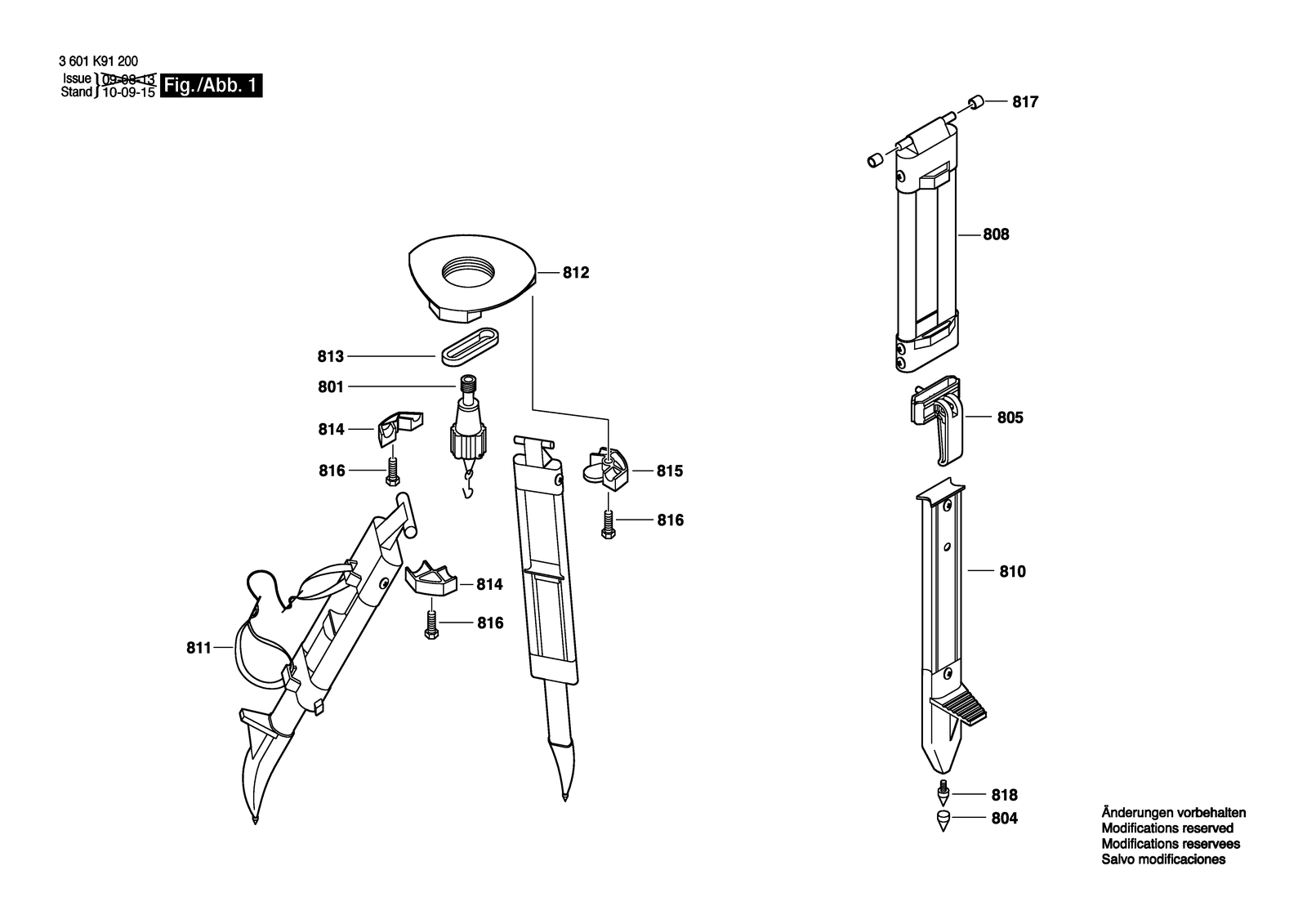

Bosch BT 170 HD parts diagram, sheet 1
No.Part numberPart name
8011600A00092Clamp Screw
8011600A00092Clamp Screw
8041600A00094Rubber Base
8041600A000A1Rubber Base
8051600A00093Clamping Unit
8051600A00093Clamping Unit
8081600A00096Guide
8081600A000A3Guide
8101600A00095Stand Leg
8101600A000A2Stand Leg
8112610A09293Carrying Strap
8112610A09293Carrying Strap
8122610A09492Head
8122610A09381Head
8132610A09402Swing-Plate
8132610A09402Swing-Plate
8142610A14493Clamp
8142610A14607Clamp
8152610A14606Swing Clamp
8152610A14608Swing Clamp
8162610A09316Lock Bolt
8162610A14609Bolt
8172610A09009Bushing
8172610A09286Bushing
8182610A09314Stand Foot
8182610A09014Stand Foot
