Bosch BT 160

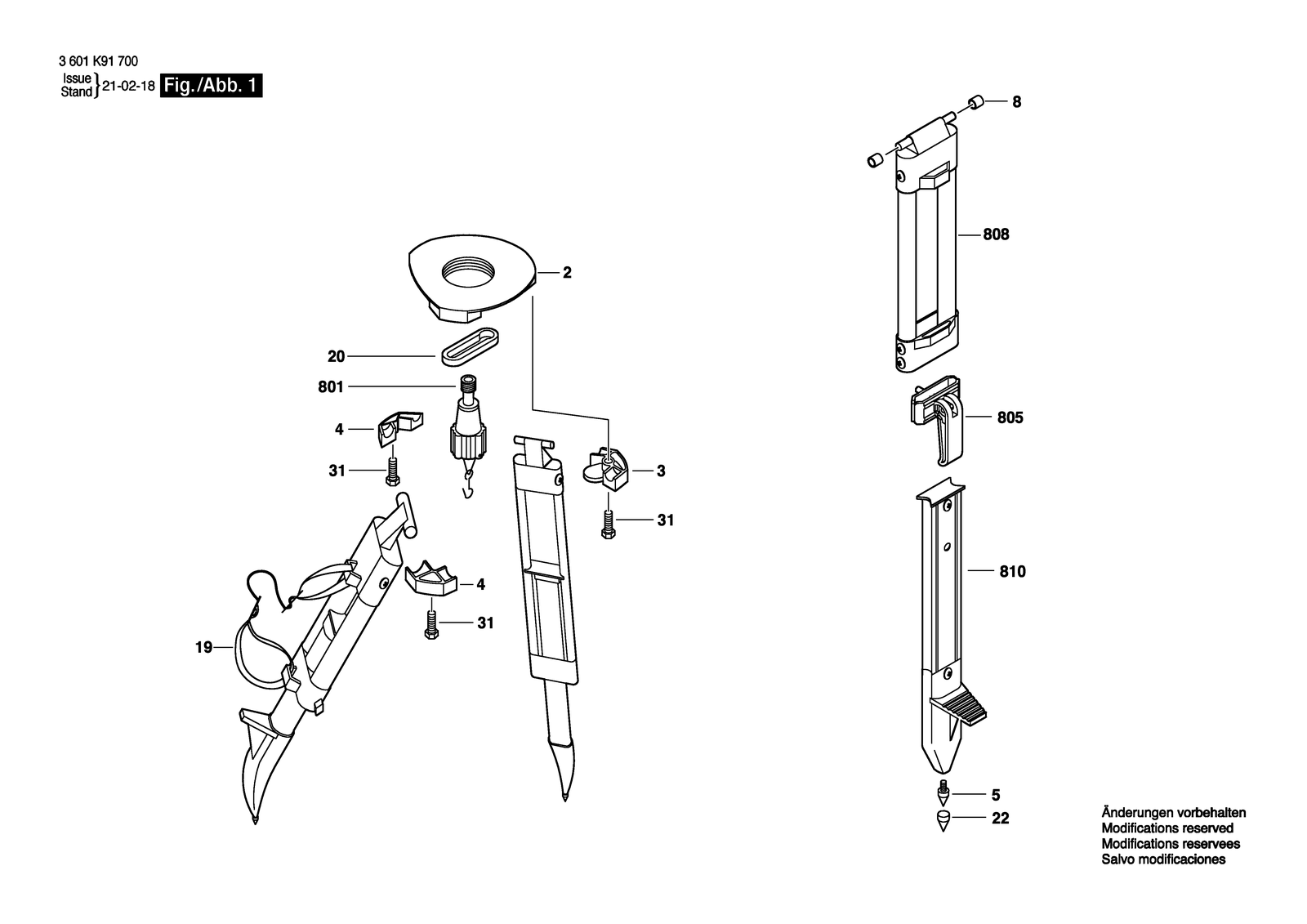

Bosch BT 160 stand: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BT 160: 26 positions on 1 sheet
Bosch BT 160 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 19 | 1619PB6826 | Strap |
| 19 | 1619PB6826 | Strap |
| 2 | 1619PB6879 | Head |
| 2 | 1619PB6919 | Head |
| 20 | 1619PB6931 | Plate |
| 20 | 1619PB6931 | Plate |
| 22 | 1619PB6899 | Base |
| 22 | 1619PB6929 | Base |
| 3 | 1619PB6880 | Head |
| 3 | 1619PB6920 | Clamp |
| 31 | 1619PB6872 | Bolt |
| 31 | 1619PB6945 | Bolt |
| 4 | 1619PB6819 | Head |
| 4 | 1619PB6921 | Clamp |
| 5 | 1619PB6882 | Foot |
| 5 | 1619PB6922 | Foot |
| 8 | 1619PB6820 | Bushing |
| 8 | 1619PB6932 | Bushing |
| 801 | 1619PB6188 | Lens |
| 801 | 1619PB6188 | Lens |
| 805 | 1619PB7189 | Clamping Unit |
| 805 | 1619PB7192 | Clamping Unit |
| 808 | 1619PB7190 | Stand Leg |
| 808 | 1619PB7193 | Stand Leg |
| 810 | 1619PB7191 | Base |
| 810 | 1619PB7191 | Base |
