Bosch BT-152

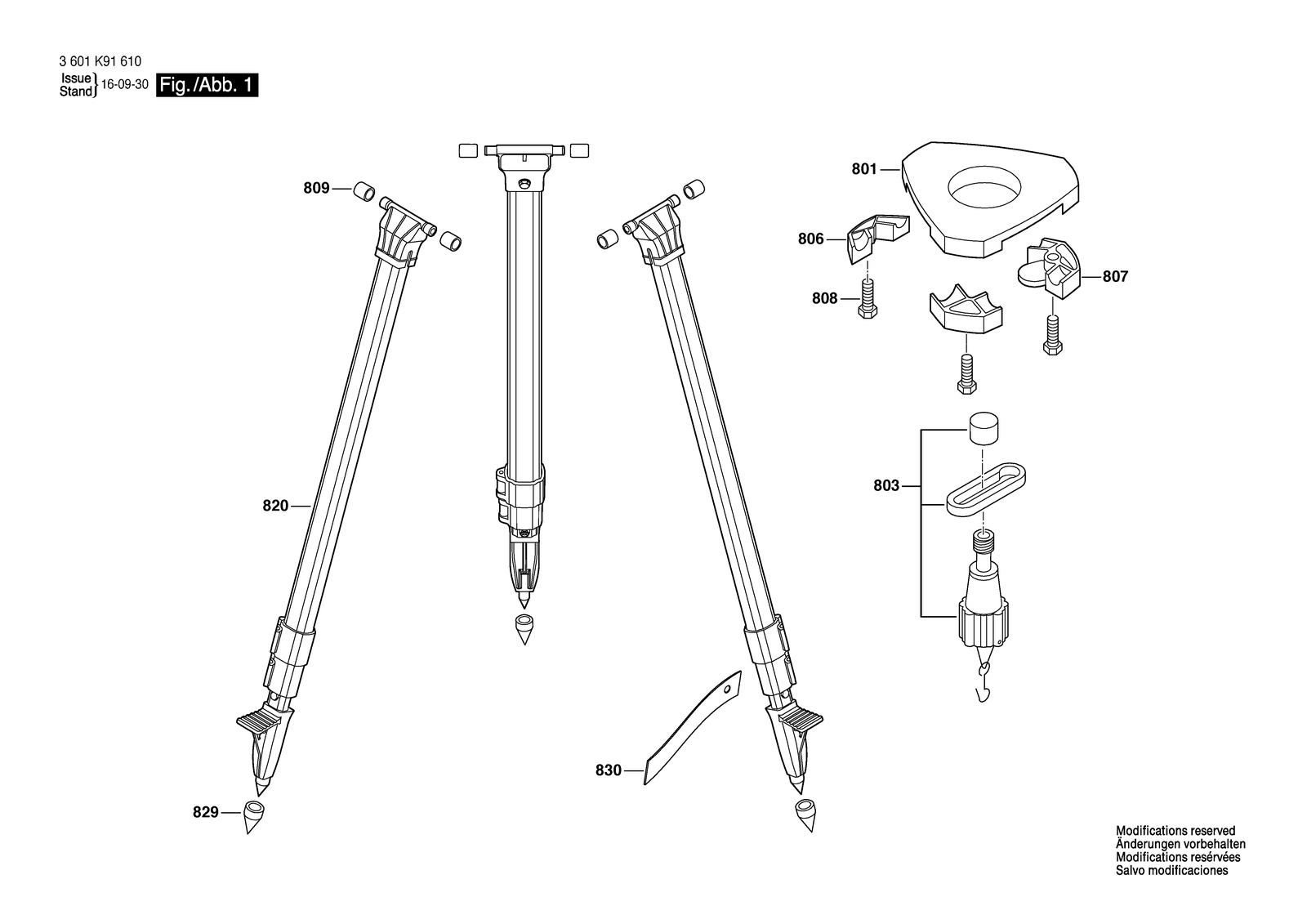

Bosch BT-152 stand: exploded parts diagram, 1 sheet, 9 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BT-152: 9 positions on 1 sheet
Bosch BT-152 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 801 | 1619PB0670 | Head |
| 803 | 1619PB0680 | Locking assembly |
| 806 | 1619PB0675 | Swing Clamp |
| 807 | 1619PB0676 | Clamp |
| 808 | 1619PB0677 | Bolt |
| 809 | 1619PB0678 | Bushing |
| 820 | 1619PB0703 | Bracket assembly |
| 829 | 1619PB0698 | Protection cover |
| 830 | 1619PB0699 | Fastening strap |
