Makita BST221
Makita BST221: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BST221: 78 positions on 1 sheet

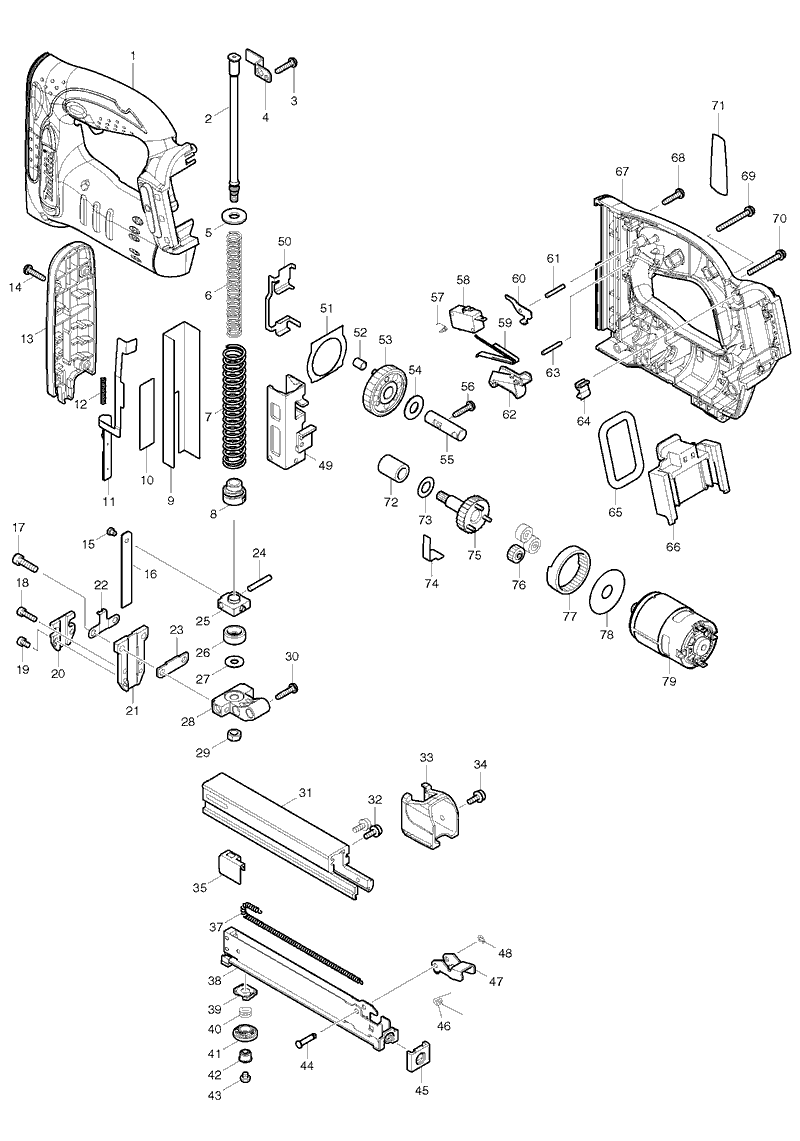

Sheet 1: Makita BST221 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 188588-1 | Makita 188588-1 HOUSING SET BST221 |
| 2 | 325635-9 | Makita 325635-9 GUIDE BOLTBST221 |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 345907-6 | Makita 345907-6 FIX PLATEBST221 |
| 5 | 253762-1 | Makita 253762-1 FLAT WASHER 8, LS1045 |
| 6 | 234060-2 | Makita 234060-2 COMPRESSION SPRING 9BST221 |
| 7 | 234101-4 | Makita 234101-4 COMPRESSION SPRING13 |
| 8 | 424135-7 | Makita 424135-7 SPRING HOLDERBST221 |
| 9 | 345978-3 | Makita 345978-3 GUIDE PLATEBST221 |
| 10 | 345906-8 | |
| 11 | 165503-2 | |
| 12 | 234078-3 | Makita 234078-3 COMPRESSION SPRING 4BST221 |
| 13 | 450539-7 | Makita 450539-7 FRONT COVERBST221 |
| 14 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 15 | 268157-5 | Makita 268157-5 PIN 4BPT350 |
| 16 | 345996-1 | Makita 345996-1 Driver BST220 BST221 |
| 17 | 922227-1 | Makita 922227-1 HEX. SOCKET HEAD BOLT M5X |
| 18 | 266201-2 | Makita 266201-2 HEX.SOCKET HEAD BOLTAN911H |
| 19 | 266199-3 | |
| 20 | 450541-0 | |
| 21 | 158759-4 | Makita 158759-4 DRIVER GUIDE COMPLETE |
| 22 | 345910-7 | Makita 345910-7 SPRING BASEBST221 |
| 23 | 344670-8 | Makita 344670-8 SET PLATEBST221 |
| 24 | 256206-0 | Makita 256206-0 PIN 4, JV600 |
| 25 | 313150-5 | Makita 313150-5 DRIVER LOCKBST221 |
| 26 | 424099-5 | Makita 424099-5 CUSHIONBST221 |
| 27 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 28 | 318267-9 | |
| 29 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 30 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 31 | 331842-4 | Makita 331842-4 MAIN MAGAZINE, BST220 |
| 32 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 33 | 450540-2 | Makita 450540-2 END CAPBST221 |
| 34 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 35 | 345997-9 | Makita 345997-9 PUSHERBST221 |
| 37 | 231854-6 | Makita 231854-6 TENSION SPRING 3BST221 |
| 38 | 165532-5 | Makita 165532-5 SUB MAGAZINE |
| 39 | 450775-5 | Makita 450775-5 ADJUSTER BASE BST221 |
| 40 | 231323-7 | Makita 231323-7 COMPRESSION SPRING 9 |
| 41 | 450702-2 | Makita 450702-2 ADJUSTER BST221 |
| 42 | 450774-7 | Makita 450774-7 LOCK SLEEVE BST221 |
| 43 | 265127-5 | Makita 265127-5 PAN HEAD SCREW M4X4 |
| 44 | 268029-4 | Makita 268029-4 PIN 4BST110 |
| 45 | 421637-4 | Makita 421637-4 MAGAZINE ENDBST110 |
| 46 | 233528-5 | Makita 233528-5 TORSION SPRING |
| 47 | 345861-4 | Makita 345861-4 LEVERBST110 |
| 48 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 49 | 165506-6 | Makita 165506-6 HAMMERBST221 |
| 50 | 345914-9 | Makita 345914-9 SLIDE PLATEBST221 |
| 51 | 343629-2 | Makita 343629-2 PLATE |
| 52 | 257772-0 | Makita 257772-0 SLEEVE 5BST221 |
| 53 | 158646-7 | Makita 158646-7 SPUR GEAR COMPLETEBST221 |
| 54 | 253171-4 | Makita 253171-4 FLAT WASHER 10, HR2810 |
| 55 | 324947-7 | Makita 324947-7 PIN 10BST221 |
| 56 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 57 | 233531-6 | Makita 233531-6 TORSION SPRING 3BST221 |
| 58 | 651891-8 | Makita 651891-8 Switch, 6900DW SS330D |
| 59 | 232240-4 | Makita 232240-4 LEAF SPRINGBST221 |
| 60 | 345908-4 | Makita 345908-4 RELEASE PLATEBST221 |
| 61 | 256221-4 | Makita 256221-4 PIN 3 |
| 62 | 450536-3 | Makita 450536-3 TRIGGERBST221 |
| 63 | 256221-4 | Makita 256221-4 PIN 3 |
| 64 | 424026-2 | Makita 424026-2 CUSHION, HP452D |
| 65 | 424030-1 | Makita 424030-1 CUSHION, BST220 |
| 66 | 643841-7 | Makita 643841-7 TERMINAL, HR240D |
| 67 | 188588-1 | Makita 188588-1 HOUSING SET BST221 |
| 68 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 69 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 70 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 71 | 865830-4 | |
| 72 | 214058-5 | |
| 73 | 253758-2 | Makita 253758-2 FLAT WASHER 10 |
| 74 | 232241-2 | Makita 232241-2 LEAF SPRINGBST221 |
| 75 | 158647-5 | Makita 158647-5 SPUR GEAR 7 COMPLETEBST221 |
| 76 | 221961-3 | Makita 221961-3 SPUR GEAR 27 |
| 77 | 221999-8 | Makita 221999-8 INTERNAL GEAR 69 |
| 78 | 267053-4 | Makita 267053-4 FLAT WASHER 12 |
| 79 | 629858-4 | Makita 629858-4 629125-7 Motor for BST221 18V Stapler |
