Makita BST110: exploded parts diagram, 1 sheet, 81 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BST110: 81 positions on 1 sheet

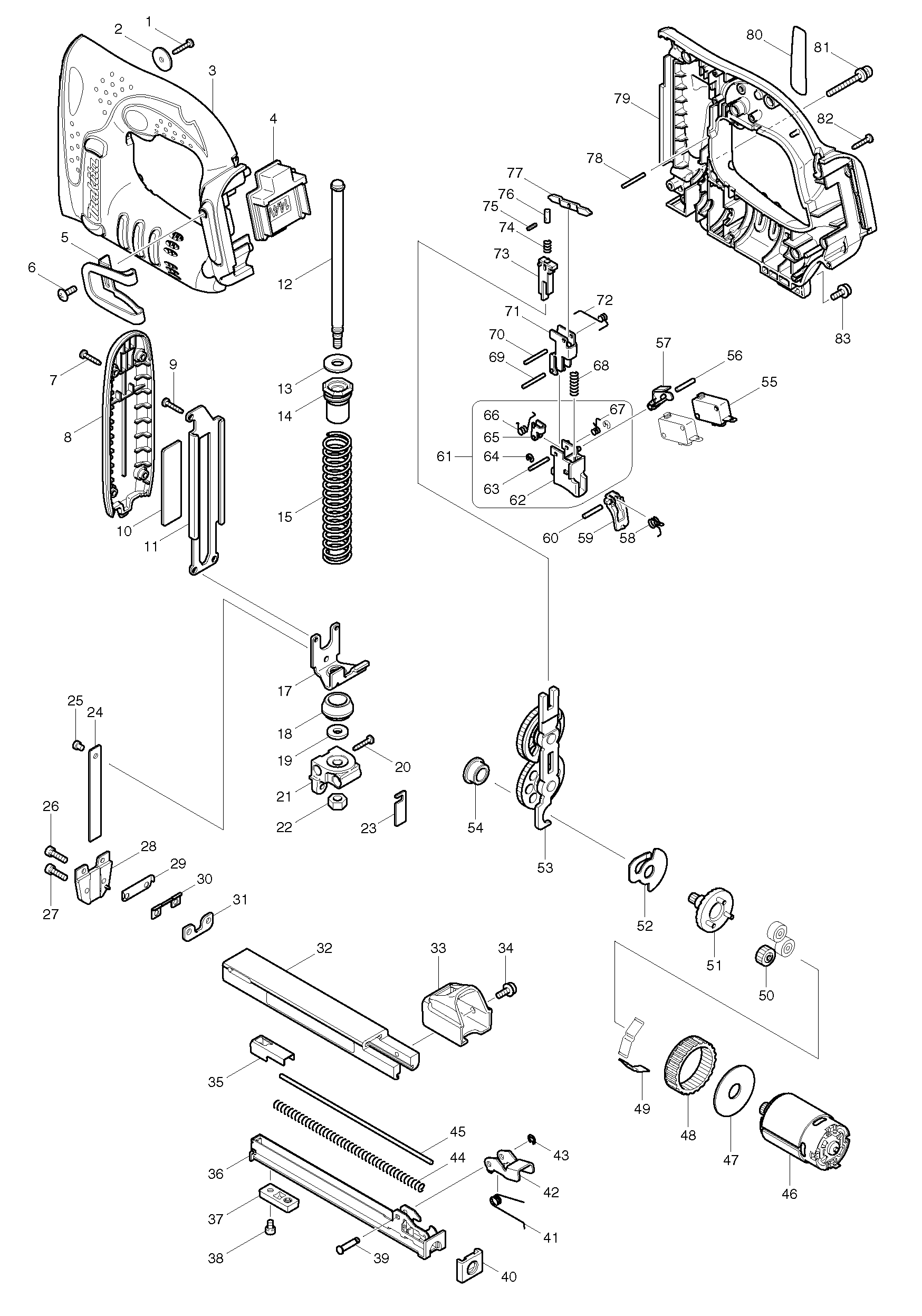

Sheet 1: Makita BST110 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 2 | 267071-2 | Makita 267071-2 FLAT WASHER 4, MUB062 |
| 3 | 188467-3 | Makita 188467-3 HOUSING SETBST110 |
| 4 | 643811-6 | Makita 643811-6 Terminal 14.4v for BDF440 BDF441 BDA340 BUC121 |
| 5 | 324705-1 | Makita 324705-1 HOOK, DF442D |
| 6 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 7 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 8 | 419450-2 | Makita 419450-2 FRONT COVER, BPT350 |
| 9 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 10 | 345704-0 | Makita 345704-0 UPPER PLATE, BPT350 |
| 11 | 345703-2 | Makita 345703-2 RAIL, BPT350 |
| 12 | 324683-5 | Makita 324683-5 GUIDE BOLT, BPT350 |
| 13 | 253762-1 | Makita 253762-1 FLAT WASHER 8, LS1045 |
| 14 | 421962-3 | Makita 421962-3 SPRING HOLDER, BPT350 |
| 15 | 234035-1 | Makita 234035-1 COMPRESSION SPRING 1BST110 |
| 17 | 345865-6 | Makita 345865-6 HAMMERBST110 |
| 18 | 424059-7 | Makita 424059-7 CUSHIONBST110 |
| 19 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 20 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 21 | 318025-3 | Makita 318025-3 HOLDER, BPT350 |
| 22 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 23 | 345864-8 | Makita 345864-8 TRIGGER PLATEBST110 |
| 24 | 345857-5 | Makita 345857-5 Driver for BST110 |
| 25 | 268189-2 | Makita 268189-2 PIN 4BST110 |
| 26 | 922122-5 | Makita 922122-5 H.S.H.BOLT M4*14, MT430 |
| 27 | 922122-5 | Makita 922122-5 H.S.H.BOLT M4*14, MT430 |
| 28 | 158417-2 | Makita 158417-2 DRIVER GUIDE COMPLETBST110 |
| 29 | 345863-0 | Makita 345863-0 SPACERBST110 |
| 30 | 345862-2 | Makita 345862-2 SPACER PLATEBST110 |
| 31 | 345860-6 | Makita 345860-6 SET PLATEBST110 |
| 32 | 158661-1 | Makita 158661-1 MAIN MAGAZINE COMPLEBST110 |
| 33 | 450224-2 | Makita 450224-2 END CAPBST110 |
| 34 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 35 | 345858-3 | Makita 345858-3 PUSHERBST110 |
| 36 | 165479-3 | Makita 165479-3 SUB MAGAZINEBST110 |
| 37 | 450225-0 | Makita 450225-0 FOOTBST110 |
| 38 | 265127-5 | Makita 265127-5 PAN HEAD SCREW M4X4 |
| 39 | 268029-4 | Makita 268029-4 PIN 4BST110 |
| 40 | 421637-4 | Makita 421637-4 MAGAZINE ENDBST110 |
| 41 | 233519-6 | Makita 233519-6 TORSION SPRING 5BST110 |
| 42 | 345861-4 | Makita 345861-4 LEVERBST110 |
| 43 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 44 | 234036-9 | Makita 234036-9 COMPRESSION SPRING 5BST110 |
| 45 | 324836-6 | Makita 324836-6 RODBST110 |
| 46 | 629848-7 | Makita 629848-7 DC MOTORBST110 |
| 47 | 267053-4 | Makita 267053-4 FLAT WASHER 12 |
| 48 | 227166-3 | Makita 227166-3 INTERNAL GEAR 69BPT350 |
| 49 | 232230-7 | Makita 232230-7 LEAF SPRINGBPT350 |
| 50 | 221961-3 | Makita 221961-3 SPUR GEAR 27 |
| 51 | 154973-0 | Makita 154973-0 SPUR GEAR 7 COMPLETEBPT350 |
| 52 | 345773-1 | Makita 345773-1 ANTI BACK PLATEBPT350 |
| 53 | 158418-0 | Makita 158418-0 SPUR GEAR 55 COMPLETBST110 |
| 54 | 214060-8 | Makita 214060-8 PLANE BEARING 10 |
| 55 | 651891-8 | Makita 651891-8 Switch, 6900DW SS330D |
| 56 | 256299-7 | Makita 256299-7 PIN 3BPT350 |
| 57 | 419453-6 | Makita 419453-6 LINK PLATEBPT350 |
| 58 | 231693-4 | Makita 231693-4 TORSION SPRING 4BPT350 |
| 59 | 419454-4 | Makita 419454-4 SAFETY TRIGGERBPT350 |
| 60 | 256299-7 | Makita 256299-7 PIN 3BPT350 |
| 62 | 419451-0 | Makita 419451-0 TRIGGERBPT350 |
| 63 | 256771-9 | Makita 256771-9 PIN 2.5BPT350 |
| 64 | 257926-9 | Makita 257926-9 STOP RING E-2.0BPT350,BFR440 |
| 65 | 345707-4 | Makita 345707-4 SWING ARMBPT350 |
| 66 | 231694-2 | Makita 231694-2 TORSION SPRING 3BPT350 |
| 67 | 231695-0 | Makita 231695-0 TORSION SPRING 3BPT350 |
| 68 | 234037-7 | Makita 234037-7 COMPRESSION SPRING 5BST110 |
| 69 | 256176-3 | Makita 256176-3 PIN 2.5 |
| 70 | 256176-3 | Makita 256176-3 PIN 2.5 |
| 71 | 345706-6 | Makita 345706-6 GUIDE PLATEBPT350 |
| 72 | 231692-6 | Makita 231692-6 TORSION SPRING 4BPT350 |
| 73 | 168431-0 | Makita 168431-0 CAM BLOCKBPT350 |
| 74 | 233188-3 | Makita 233188-3 COMPRESSION SPRING 2.4 |
| 75 | 951001-0 | Makita 951001-0 SPRING PIN 2-8 |
| 76 | 324684-3 | Makita 324684-3 PUSH PINBPT350 |
| 77 | 345708-2 | Makita 345708-2 SWITCH ARMBPT350 |
| 78 | 256176-3 | Makita 256176-3 PIN 2.5 |
| 79 | 188467-3 | Makita 188467-3 HOUSING SETBST110 |
| 80 | 864861-0 | Makita 864861-0 BST110 NAME PLATEBST110 |
| 81 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 82 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 83 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
