Makita BSS501
Makita BSS501: exploded parts diagram, 1 sheet, 76 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BSS501: 76 positions on 1 sheet

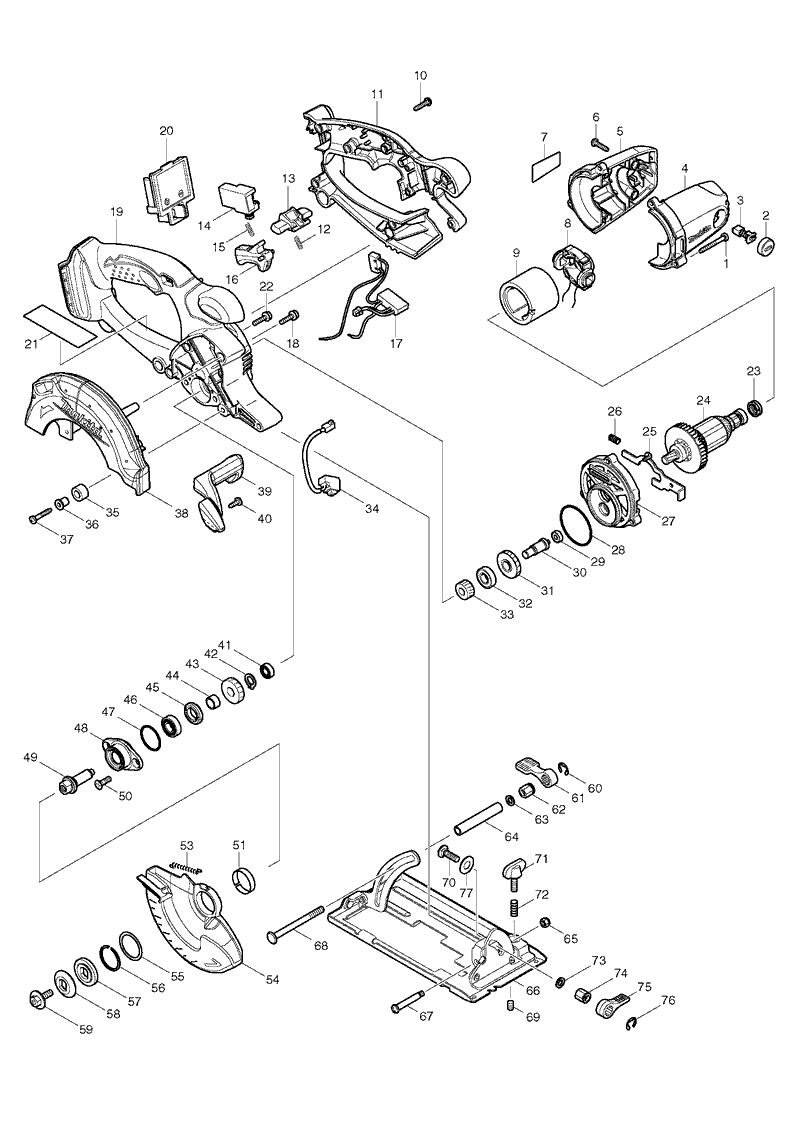

Sheet 1: Makita BSS501 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 2 | 643807-7 | Makita 643807-7 Brush Holder Cap for TD124D |
| 3 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 4 | 188209-5 | Makita 188209-5 HOUSING SET, CS550D |
| 5 | 188209-5 | Makita 188209-5 HOUSING SET, CS550D |
| 6 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 7 | 863423-1 | Makita 863423-1 BSS501 NAME PLATEBSS501 |
| 8 | 638502-2 | Makita 638502-2 Brush Holder for CS550D BSS501 BCS550 BSS500 |
| 9 | 638420-4 | Makita 638420-4 Yoke Unit for CS550D |
| 10 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 11 | 419661-9 | Makita 419661-9 HANDLE L, CS550D |
| 12 | 231469-9 | Makita 231469-9 COMPRESSION SPRING 4, SS610D |
| 13 | 419664-3 | Makita 419664-3 LOCK OFF LEVER, BCS550D |
| 14 | 651956-6 | OTHR MAKITA SWITCH BHS630 BUC250RD BSS610 650631-1 651956-6 651988-3 |
| 15 | 231469-9 | Makita 231469-9 COMPRESSION SPRING 4, SS610D |
| 16 | 419665-1 | Makita 419665-1 SWITCH LEVER, CS550D |
| 17 | 631743-9 | Makita 631743-9 POWER SUPPLY CIRCUIT, CS550D |
| 18 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 19 | 450065-6 | Makita 450065-6 HANDLE R, CS550D |
| 20 | 643812-4 | Makita 643812-4 TERMINAL |
| 21 | ||
| 22 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 23 | 421977-0 | Makita 421977-0 Rubber Ring 13 for CS540D |
| 24 | 619202-3 | Makita 619202-3 Armature for BSS501 18V |
| 25 | 345643-4 | Makita 345643-4 Shaft Lock for SS540D |
| 26 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 27 | 419656-2 | Makita 419656-2 GEAR HOUSING, CS550D |
| 28 | 213560-5 | Makita 213560-5 O RING 44, N5900B |
| 29 | 210048-6 | Makita 210048-6 BALL BEARING 604ZZ, DF452D |
| 30 | 324729-7 | Makita 324729-7 Gear Shaft for CS550D |
| 31 | 226643-2 | Makita 226643-2 Helical Gear 35 CS550D, BSS500, BSS501 |
| 32 | 210080-0 | Makita 210080-0 Ball Bearing for 6900ZZ, CS550D |
| 33 | 226635-1 | Makita 226635-1 Helical Gear 15 CS550D BCS550 BSS500 |
| 34 | 631550-0 | Makita 631550-0 POWER SUPPLY CIRCUIT, CS550D |
| 35 | 262566-0 | Makita 262566-0 RUBBER SLEEVE 6, CS550D |
| 36 | 262563-6 | Makita 262563-6 SLEEVE 4, CS550D |
| 37 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 38 | 318152-6 | Makita 318152-6 Blade Case Complete for SS500D DSS500 DSS501 |
| 39 | 419935-8 | Makita 419935-8 Blower Nozzle SS500D |
| 40 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 41 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 42 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 43 | 226640-8 | Makita 226640-8 HELICAL GEAR 23, CS550D |
| 44 | 257760-7 | Makita 257760-7 SLEEVE 10, CS550D |
| 45 | 285847-5 | Makita 285847-5 BEARING RETAINER 14-23, CS540D |
| 46 | 210069-8 | Makita 210069-8 BALL BEARING 6900DDW, CS550D |
| 47 | 213435-8 | Makita 213435-8 O RING 26, CS550D |
| 48 | 318087-1 | Makita 318087-1 BEARING BOX, CS540D |
| 49 | 324730-2 | Makita 324730-2 SPINDLE, CS550D |
| 50 | 265034-2 | Makita 265034-2 COUNTERSUNK HEAD SCREW M5*16, 5606B |
| 51 | 345470-9 | Makita 345470-9 THICKNESS RING, CS550D |
| 53 | 231835-0 | Makita 231835-0 TENSION SPRING4, BSS501 |
| 54 | 419933-2 | Makita 419933-2 Safety Cover SS500D |
| 55 | 267127-1 | Makita 267127-1 FLAT WASHER 26, HR2010 |
| 56 | 257938-2 | Makita 257938-2 RETAINING RING(EXT)UR-26, CS550D |
| 57 | 224391-7 | Makita 224391-7 INNER FLANGE 30, CS550D |
| 58 | 224404-4 | Makita 224404-4 OUTER FLANGE 30, CS550D |
| 59 | 266226-6 | Makita 266226-6 HEX.SOCKET HET.BOLT M6*18, CS550D |
| 60 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 61 | 272229-0 | Makita 272229-0 LEVER 40, 3901 |
| 62 | 252159-1 | Makita 252159-1 HEX NUT M6, CS550D |
| 63 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 64 | 331733-9 | Makita 331733-9 PIPE6, CS550D |
| 65 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 66 | 158252-8 | Makita 158252-8 Base Complete SS501D DSS501 |
| 67 | 265056-2 | Makita 265056-2 PAN HEAD SCREW M5, 5604R |
| 68 | 266405-6 | Makita 266405-6 HEX HEAD SQUARE NECK BOLT, CS550D |
| 69 | 266225-8 | Makita 266225-8 HEX.S HEAD SET SCREW M6*8, SS500D |
| 70 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 71 | 251896-4 | Makita 251896-4 THUMB SCREW, SS610D |
| 72 | 231007-7 | Makita 231007-7 COMPRESSION SPRING 6, SS610D |
| 73 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 74 | 252133-9 | Makita 252133-9 HEX NUT M6, SS610D |
| 75 | 272251-7 | Makita 272251-7 LEVER, SS610D |
| 76 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 77 | 267231-6 | Makita 267231-6 FLAT WASHER 9, HR2020 |
