Bosch BSD-HD

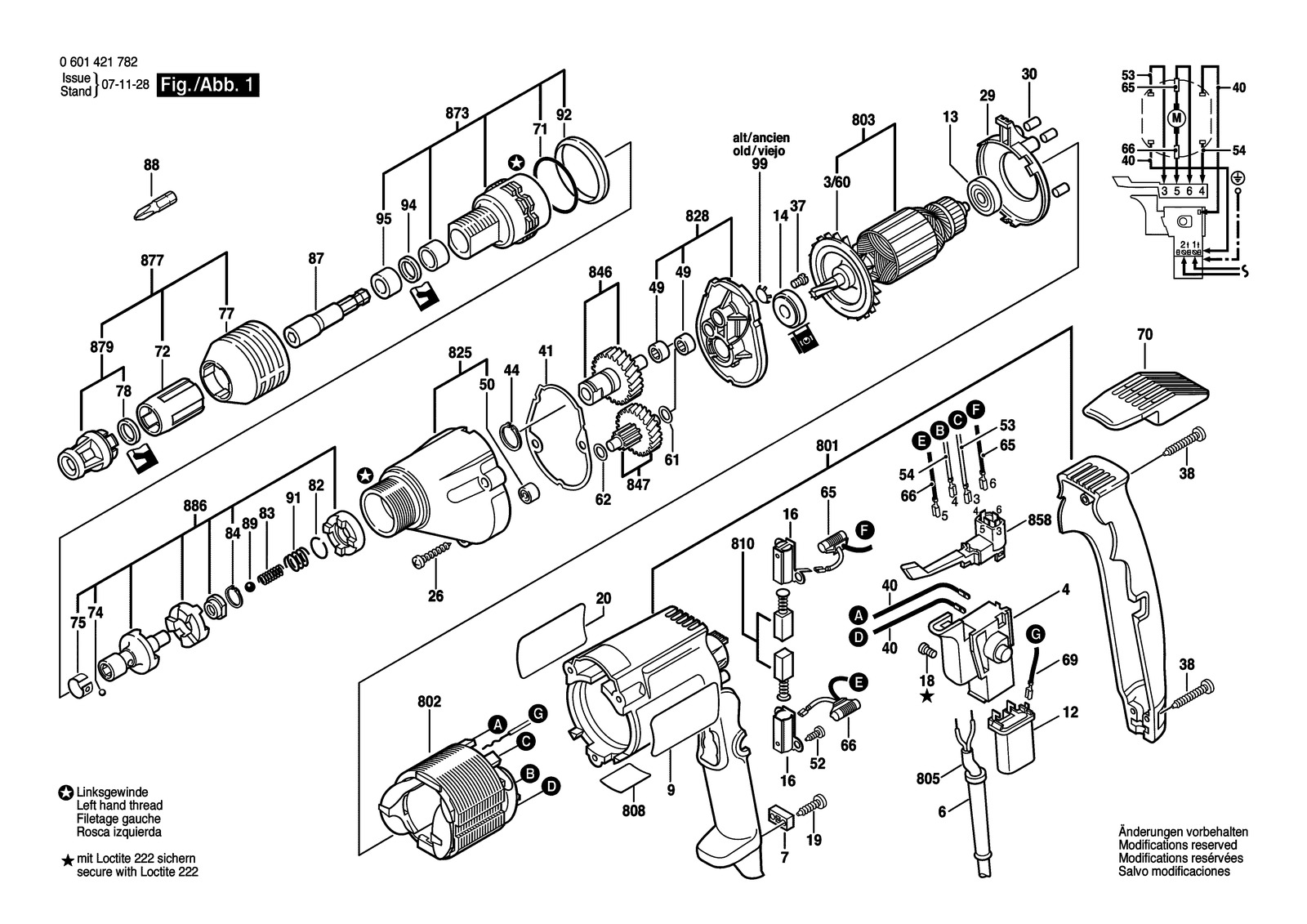

Bosch BSD-HD drill screwdriver: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BSD-HD: 62 positions on 1 sheet
Bosch BSD-HD parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 2607329114 | Suppression Filter |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 16 | 2604337003 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 20 | 2601119557 | Reference Plate |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 29 | 3600590505 | Cover Disc |
| 3/60 | 2606610027 | Fan |
| 30 | 3602391503 | Rubber Buffer |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 38 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 4 | 2607200606 | Switch |
| 40 | 2604448005 | Cable White L=130 MM |
| 41 | 3601016502 | Flat Seal Ring |
| 44 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 49 | 2600917004 | Needle bearing |
| 50 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 52 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 53 | 2604448074 | Connecting Cable Black L=98 MM |
| 54 | 2604448100 | Connecting Cable White L=68 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 61 | 2600100628 | Shim 0,5 MM |
| 62 | 2600101654 | Shim 0,3 MM |
| 65 | 2604465086 | Suppression Filter Black L=148 MM |
| 66 | 2604465097 | Suppression Filter White L=126 MM |
| 69 | 2604448097 | Earth Conductor |
| 7 | 2601035001 | Cable Clip |
| 70 | 3600690503 | Clip Black |
| 71 | 2600210043 | O-Ring |
| 72 | 3600360505 | Spacer Sleeve Black |
| 74 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 75 | 3600034504 | Ball Support |
| 77 | 3600390502 | Locking Ring Black |
| 78 | 3600290502 | Seal Ring |
| 801 | 2605105070 | Housing Set Orange |
| 802 | 2604220526 | Field 230-240V |
| 803 | 2604010803 | Armature 230V |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 2601116686 | Marking Plate |
| 810 | 2604321905 | Carbon-Brush Set |
| 82 | 3600200516 | Retaining ring |
| 825 | 3605190518 | Gear Housing Black |
| 828 | 3605806537 | Bearing Bracket |
| 83 | 3604613507 | Spring |
| 84 | 3600118502 | Spring retaining ring |
| 846 | 3606120566 | Drive Shaft Z=33 |
| 847 | 3606319522 | Toothed Shaft Z=41/17 |
| 858 | 2607200607 | Switch |
| 87 | 3603008500 | Toolholder 1/4" |
| 873 | 3605190520 | Drive Clutch |
| 877 | 3600552509 | Depth-Gauge |
| 879 | 3600552505 | Depth-Gauge |
| 88 | 2607000366 | Screwdriver Bit |
| 886 | 3606441503 | Drive Clutch |
| 89 | 1903230011 | Ball DIN 5401-6 G28 |
| 9 | 2601116684 | Manufacturer's nameplate |
| 91 | 3604613506 | Spring |
| 92 | 3600113506 | Insulating Sleeve Gray |
| 94 | 3600290503 | Seal Ring |
| 95 | 3600301510 | Bushing |
