Bosch BS 2

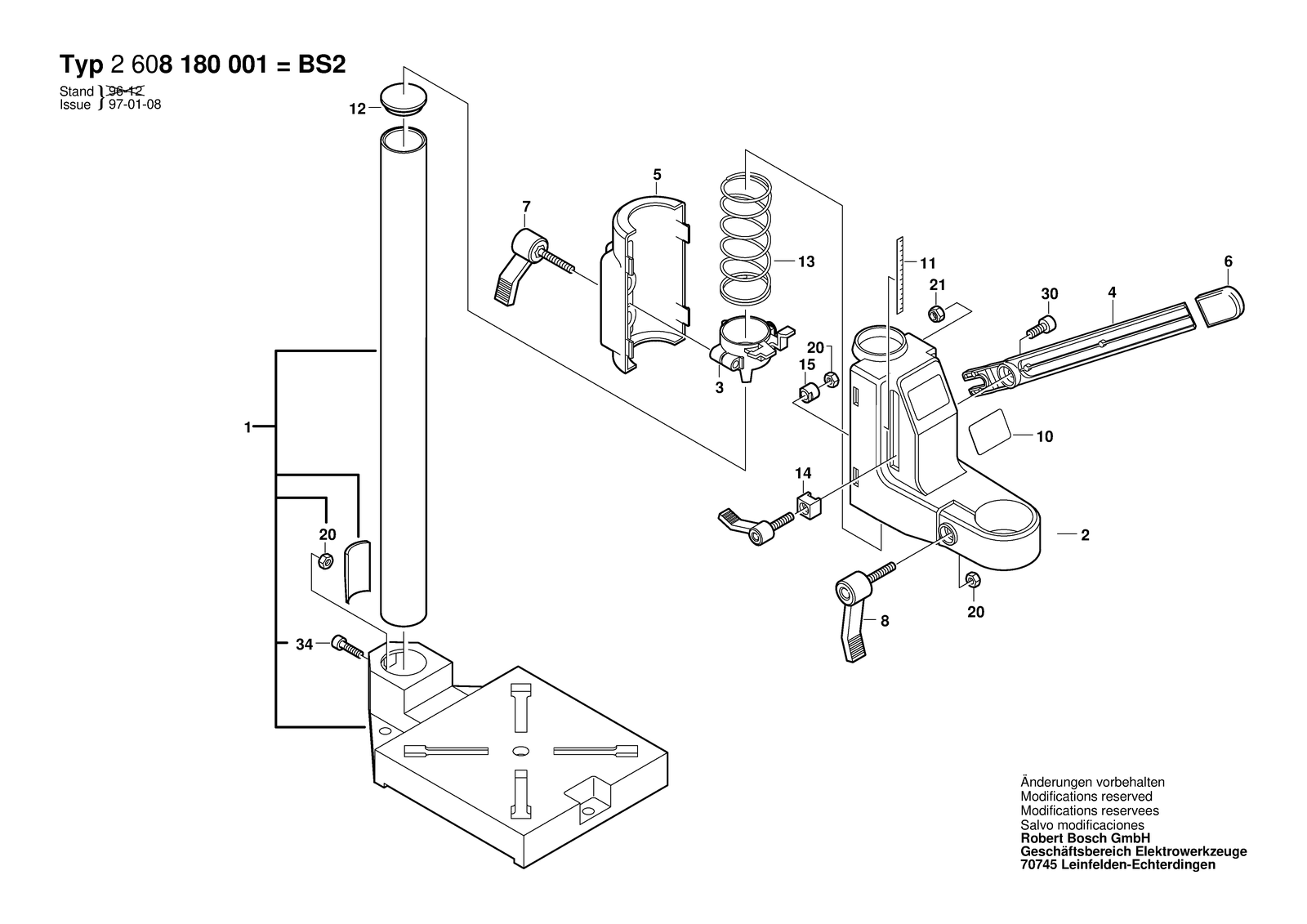

Bosch BS 2 drill stand: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BS 2: 18 positions on 1 sheet
Bosch BS 2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609390429 | Base Plate |
| 10 | 2609390438 | Marking Plate |
| 11 | 2609390439 | Scale Band |
| 12 | 2609390440 | Sealing cap |
| 13 | 2609390441 | Compression Spring |
| 14 | 2609390442 | Depth-Gauge |
| 15 | 2609390443 | Clamping Piece |
| 2 | 2609390430 | Drive-Machine Holder |
| 20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 21 | 2915061004 | Hex Nut DIN 985-M6-8 |
| 3 | 2609390431 | Clamping Head |
| 30 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 34 | 2910141193 | Hex Socket Head Cap Screw DIN 912-M6X12-8.8 |
| 4 | 2609390432 | Lever Arm |
| 5 | 2609390433 | Covering hood |
| 6 | 2609390434 | Cap-Handle |
| 7 | 2609390435 | Clamping Lever |
| 8 | 2609390436 | Clamping Lever |
