Bosch BS 14-A Light

Bosch BS 14-A Light cordless screwdriver: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BS 14-A Light: 22 positions on 1 sheet

Bosch BS 14-A Light parts list (1 sheet)

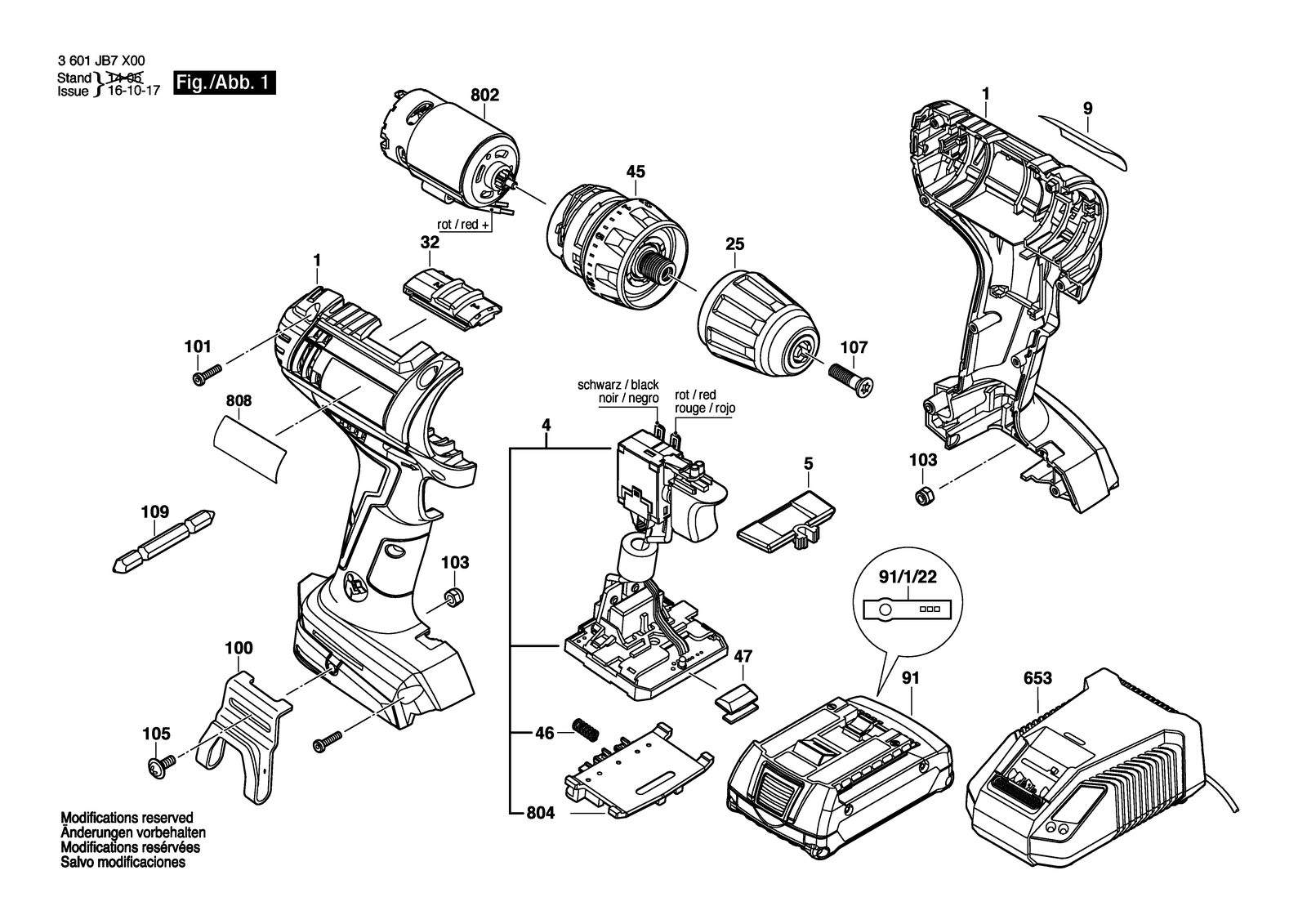

Bosch BS 14-A Light parts diagram, sheet 1
No.Part numberPart name
12609101513Housing
1002609110956Clip
1012609110538Screw
1032609110835Nut
1052609110834Screw
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1092609110342Screwdriver Blade
252609112112Keyless Chuck
322609199279Switchover Unit
41607233543Electronics Module
452609199786Gear Box
461609280477Compression Spring
472609100858Lens
52609101009Adjusting lever
6532607225455Charger EU 230/10,8-18V, 1H, AL 60-CV-LI
8022609199591DC motor 14,4V-18V
8041609280474Contact retainer
8082609135543Nameplate
8082609136142Nameplate
92609135521Manufacturer's nameplate Würth
912607337133Battery Pack 14,4V, 1,5AH, Li, Ms
91/1/222601115537Sticker
