Bosch BS 12-A MULTI

Bosch BS 12-A MULTI cordless drill driver: exploded parts diagram, 2 sheets, 17 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BS 12-A MULTI: 17 positions on 2 sheets

Bosch BS 12-A MULTI parts list (2 sheets)

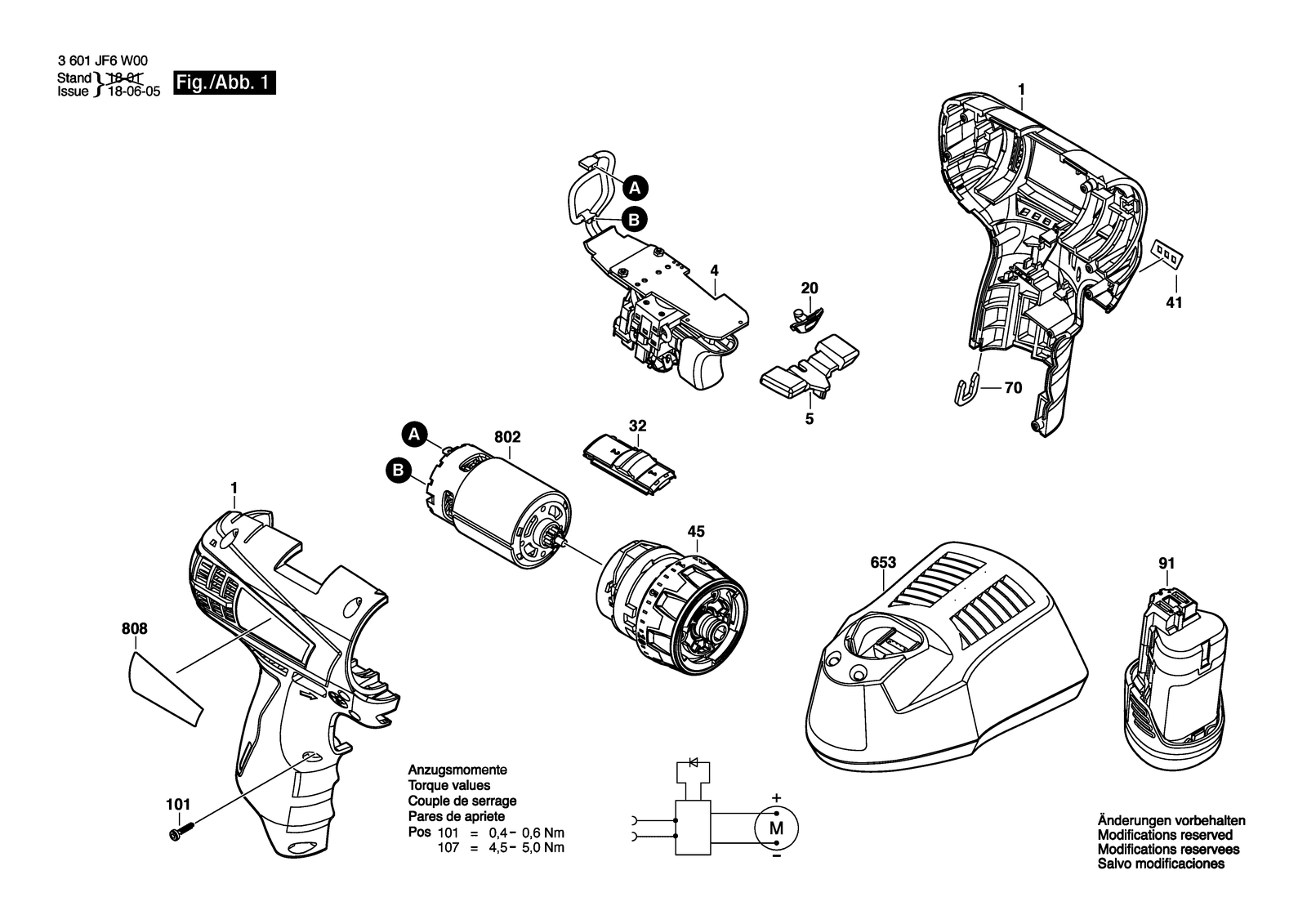

Bosch BS 12-A MULTI parts diagram, sheet 1Bosch BS 12-A MULTI parts diagram, sheet 2
No.Part numberPart name
12609101164Housing Black
1012609110883Screw
202609100826Lens
322609199279Switchover Unit
416072335DKElectronics Module
412609132948Sticker
451600A01511Gear Box
52609100825Changeover Lever
6532607226167Fast Charger EU 10,8-12V, 30 Min AL 30-LI Pl
702609110537Clip
8022609199258DC motor 10,8V - 12V
808160111A5LLNameplate
8551600A014MVChuck attachment
8561600A014MYBit holder
8571600A014MWRight-angle attachment
8581600A014MXEccentric attachment
911607A350E9Battery Pack Master Li-Ion 12V/2,0 AH 5700139002
