Bosch BS 12-A

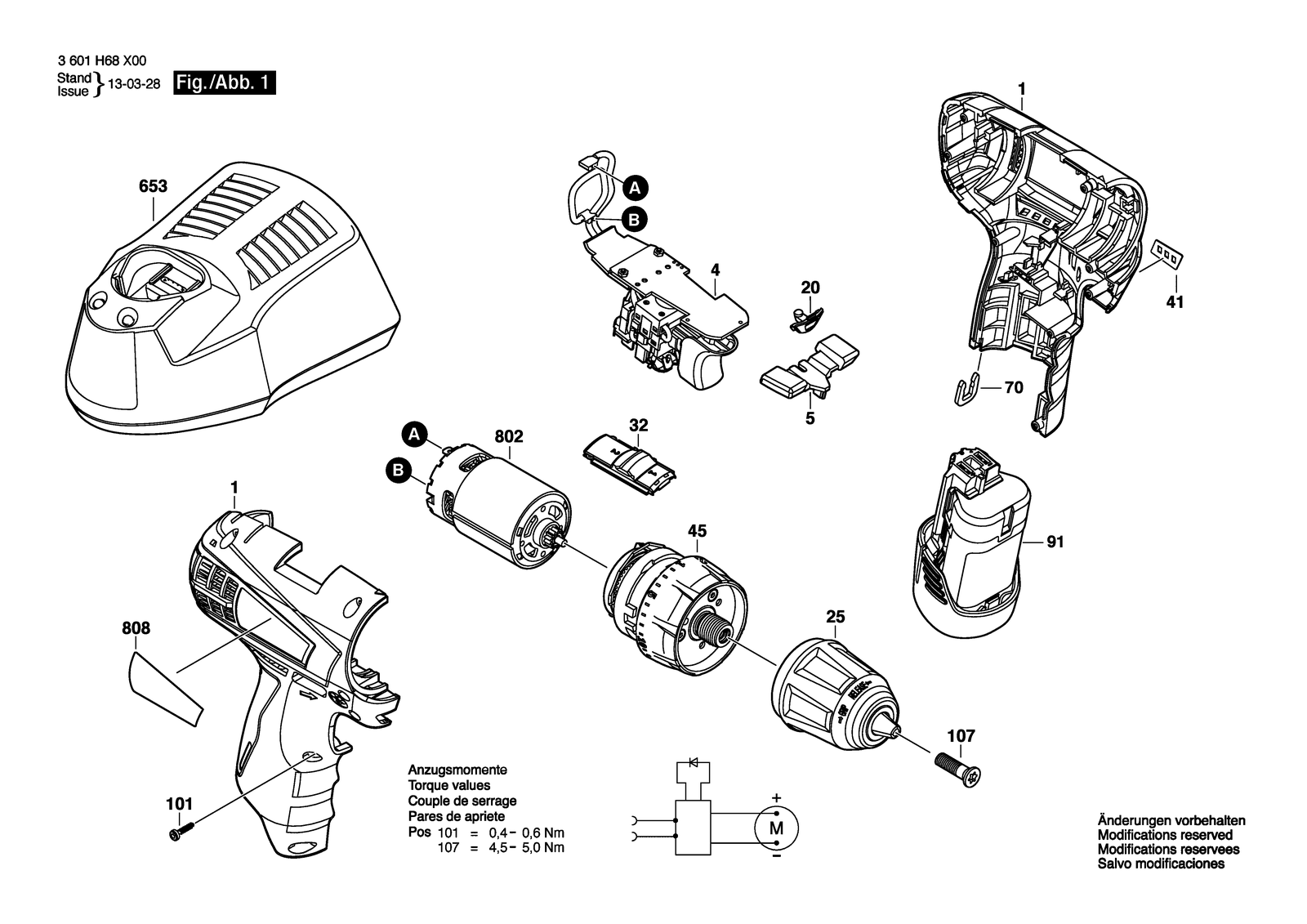

Bosch BS 12-A cordless drill driver: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BS 12-A: 30 positions on 1 sheet
Bosch BS 12-A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101164 | Housing Black |
| 1 | 2609101164 | Housing Black |
| 101 | 2609110883 | Screw |
| 101 | 2609110883 | Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 20 | 2609100826 | Lens |
| 20 | 2609100826 | Lens |
| 25 | 2609111513 | Keyless Chuck |
| 25 | 2609111513 | Keyless Chuck |
| 32 | 2609199573 | Switchover Unit |
| 32 | 2609199573 | Switchover Unit |
| 4 | 16072335DK | Electronics Module |
| 4 | 16072335DK | Electronics Module |
| 41 | 2609132948 | Sticker |
| 41 | 2609132948 | Sticker |
| 45 | 2609199611 | Gear Box |
| 45 | 2609199611 | Gear Box |
| 5 | 2609101169 | Changeover Lever |
| 5 | 2609101169 | Changeover Lever |
| 653 | 2607225197 | Fast Charger EU 10,8V, 30 Min. AL 30-LI Pl |
| 653 | 2607226167 | Fast Charger EU 10,8-12V, 30 Min AL 30-LI Pl |
| 70 | 2609110537 | Clip |
| 70 | 2609110537 | Clip |
| 802 | 2609199258 | DC motor 10,8V - 12V |
| 802 | 2609199258 | DC motor 10,8V - 12V |
| 808 | 160111A5HZ | Nameplate |
| 808 | 2609138497 | Nameplate |
| 91 | 1607A350E9 | Battery Pack Master Li-Ion 12V/2,0 AH 5700139002 |
| 91 | 1607A350E9 | Battery Pack Master Li-Ion 12V/2,0 AH 5700139002 |
