Makita BPJ140
Makita BPJ140: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BPJ140: 70 positions on 1 sheet

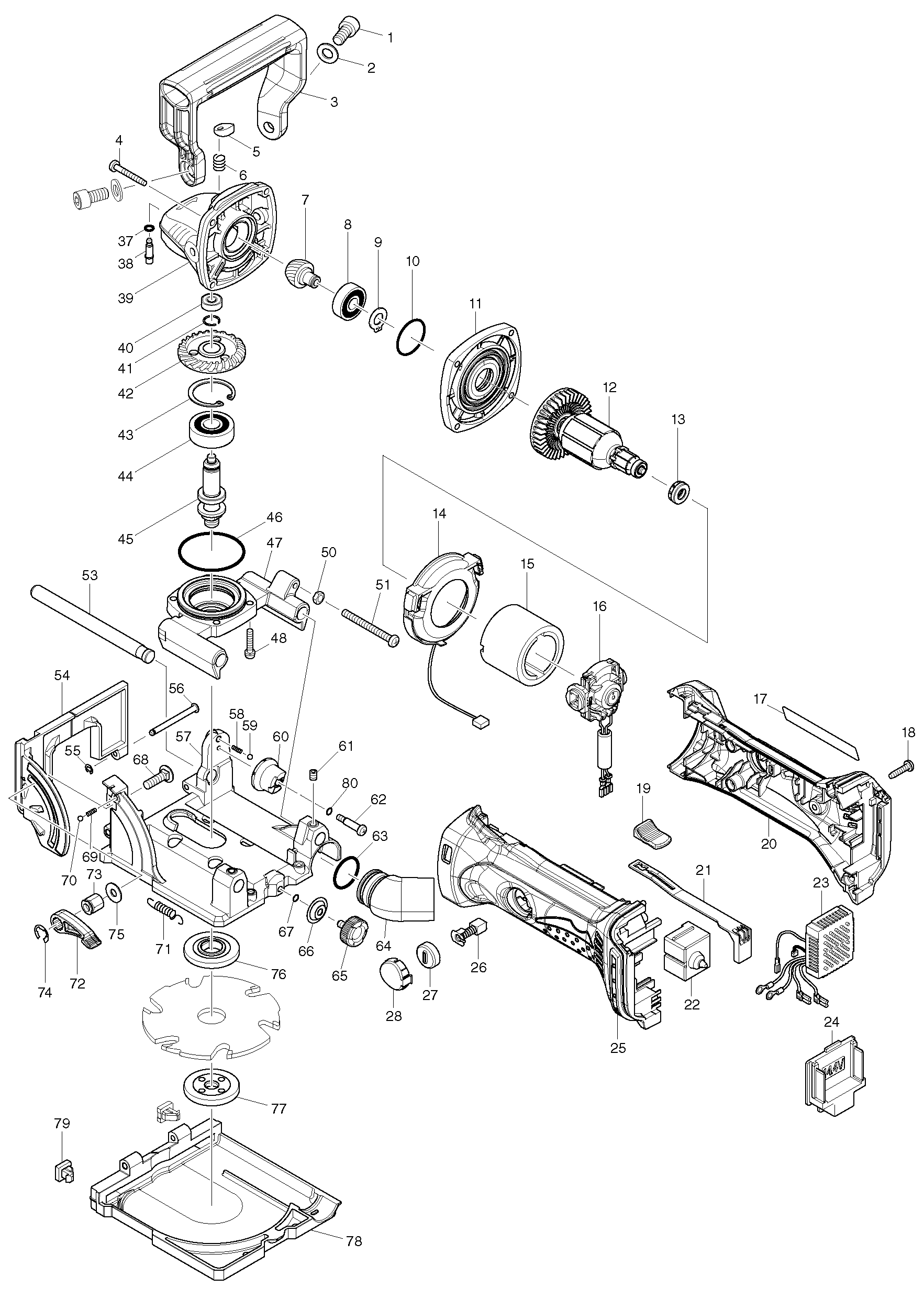

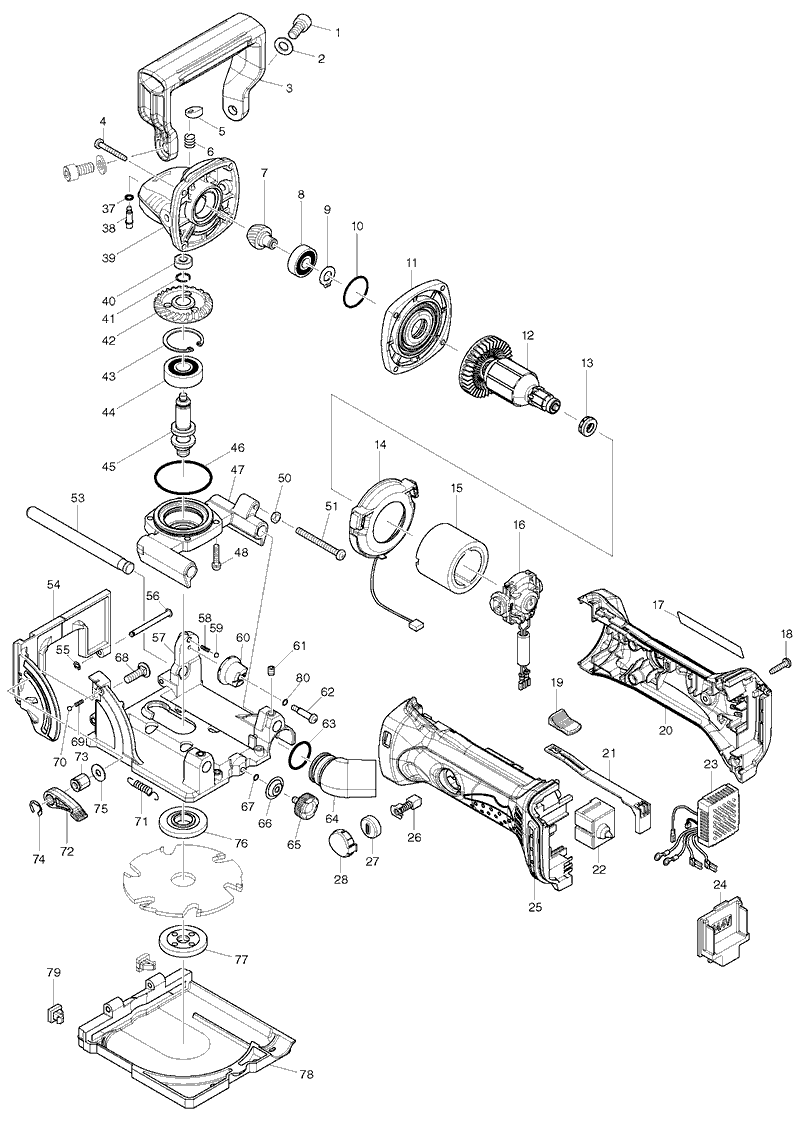

Sheet 1: Makita BPJ140 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 922422-3 | Makita 922422-3 HEX. SOCKET HEAD BOLT M8X |
| 2 | 941202-8 | Makita 941202-8 FLAT WASHER 8 |
| 3 | 453219-4 | Makita 453219-4 GRIP BJP140/180 |
| 4 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 5 | 417771-6 | Makita 417771-6 Pin Cap for GA5030 9555NB 9558NB BPJ140 |
| 6 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 7 | 227597-6 | Makita 227597-6 SPIRAL BEVEL GEAR 11 |
| 8 | 210042-8 | Makita 210042-8 BALL BEARING 629LLB, MT410 |
| 9 | 961005-4 | Makita 961005-4 Retaining Ring S-9 BGA450 BGA452 9047 9047S 9049 9049S 9057S |
| 10 | 213445-5 | Makita 213445-5 O RING 26, MT952 |
| 11 | 317821-6 | Makita 317821-6 GEAR HOUSING COVER, 9536NB |
| 12 | 619294-2 | |
| 13 | 421977-0 | Makita 421977-0 Rubber Ring 13 for CS540D |
| 14 | 631714-6 | Makita 631714-6 LED CIRCUIT, GA400D |
| 15 | 638376-1 | Makita 638376-1 YOKE UNIT, 6319D |
| 16 | 638979-1 | Makita 638979-1 ENDBELL COMPLETE |
| 17 | 896987-0 | |
| 18 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 19 | 419566-3 | Makita 419566-3 Angle Grinder Switch Knob for 9557NB GA5030 |
| 20 | 188703-7 | |
| 21 | 419519-2 | Makita 419519-2 SWITCH LEVER, GA400D |
| 22 | 650579-7 | Makita 650579-7 Switch GA400D 9564PCV 9565PCV BGA450 BGA452 BPJ180 |
| 23 | 631712-0 | Makita 631712-0 CONTROLLER, GA400D |
| 24 | 643811-6 | Makita 643811-6 Terminal 14.4v for BDF440 BDF441 BDA340 BUC121 |
| 25 | 188703-7 | |
| 26 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 27 | 643954-4 | Makita 643954-4 Holder Cap for BGA452 GA452D |
| 28 | 419518-4 | Makita 419518-4 Holder Cap Cover for BPJ140 BPJ180 GA452D |
| 37 | 213960-9 | Makita 213960-9 O-RING 5, 9556NB |
| 38 | 256496-5 | Makita 256496-5 SHOULDER PIN 4, GA452D |
| 39 | 141400-6 | Makita 141400-6 GEAR HOUGING COMPLETE |
| 40 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 41 | 233950-6 | Makita 233950-6 RING SPRING, GA5010 |
| 42 | 227598-4 | Makita 227598-4 SPINRAL BEUEL GEAR 36 |
| 43 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 44 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 45 | 326120-5 | Makita 326120-5 SPINDLE |
| 46 | 213622-9 | Makita 213622-9 O-RING 45, 9536NB |
| 47 | 318812-0 | Makita 318812-0 BEARING BOX |
| 48 | 911136-9 | Makita 911136-9 P.H. SCREW M4*20 WITH W, M931 |
| 50 | 931203-4 | Makita 931203-4 HEX. NUT M5 |
| 51 | 266741-0 | Makita 266741-0 PAN HEAD SCREW M5X50 |
| 53 | 326145-9 | Makita 326145-9 ROD 10 |
| 54 | 141247-8 | Makita 141247-8 Fence Complete BPJ141 BPJ140 BPJ180 BPJ181 PJ7000 |
| 55 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 56 | 256689-4 | Makita 256689-4 PIN 4 |
| 57 | 318813-8 | Makita 318813-8 BASE |
| 58 | 231282-5 | Makita 231282-5 COMPRESSION SPRING 2.4 |
| 59 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 60 | 318814-6 | Makita 318814-6 STOPPER |
| 61 | 266264-8 | Makita 266264-8 HEX.SOCKET SET SCREW M5*6, SS610D |
| 62 | 266738-9 | Makita 266738-9 PAN HEAD SCREW M4 |
| 63 | 213008-7 | Makita 213008-7 O RING 22.4 |
| 64 | 415252-4 | Makita 415252-4 DUST NOZZLE, 3901 |
| 65 | 265785-7 | Makita 265785-7 THUMB SCREW, KP0800 |
| 66 | 232131-9 | Makita 232131-9 LEAF SPRING 3901 |
| 67 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
| 68 | 266737-1 | Makita 266737-1 FLAT HEAD SQ. NECK BOLT M6X20 |
| 69 | 231282-5 | Makita 231282-5 COMPRESSION SPRING 2.4 |
| 70 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 71 | 231795-6 | Makita 231795-6 TENSION SPRING 8 |
| 72 | 272263-0 | Makita 272263-0 LEVER 40 |
| 73 | 252159-1 | Makita 252159-1 HEX NUT M6, CS550D |
| 74 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 75 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 76 | 224280-6 | Makita 224280-6 INNER FLANGE 40, 3901 |
| 77 | 224505-8 | Makita 224505-8 LOCK NUT 10-40, 3901 |
| 78 | 318845-5 | Makita 318845-5 BLADE COVER |
| 79 | 424479-5 | Makita 424479-5 RUBBER SPIKE |
| 80 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
Selected parts0
