Bosch Bosch GO cordless drill driver: exploded parts diagram, 2 sheets, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Bosch GO: 46 positions on 2 sheets

Bosch Bosch GO parts list (2 sheets)

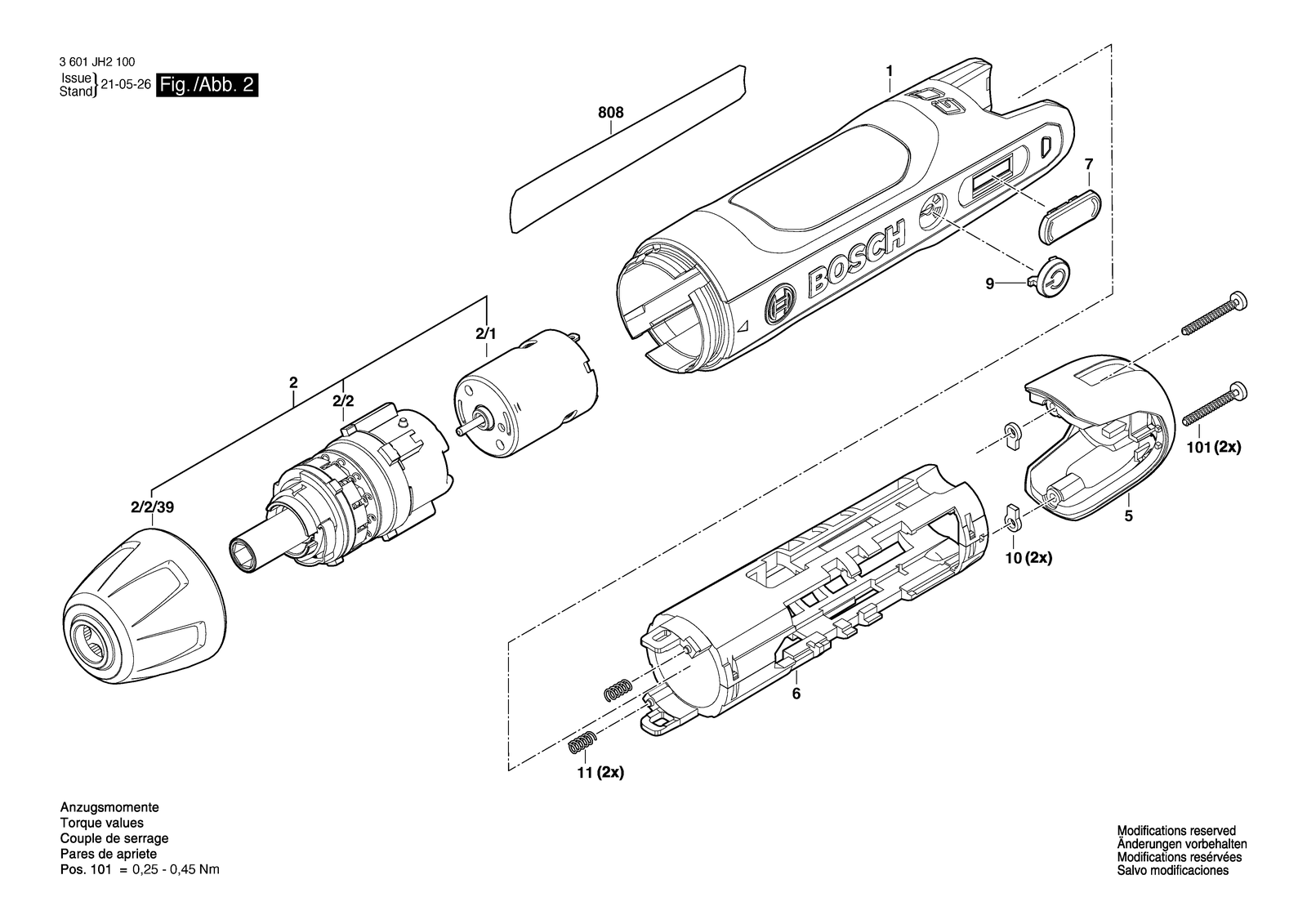

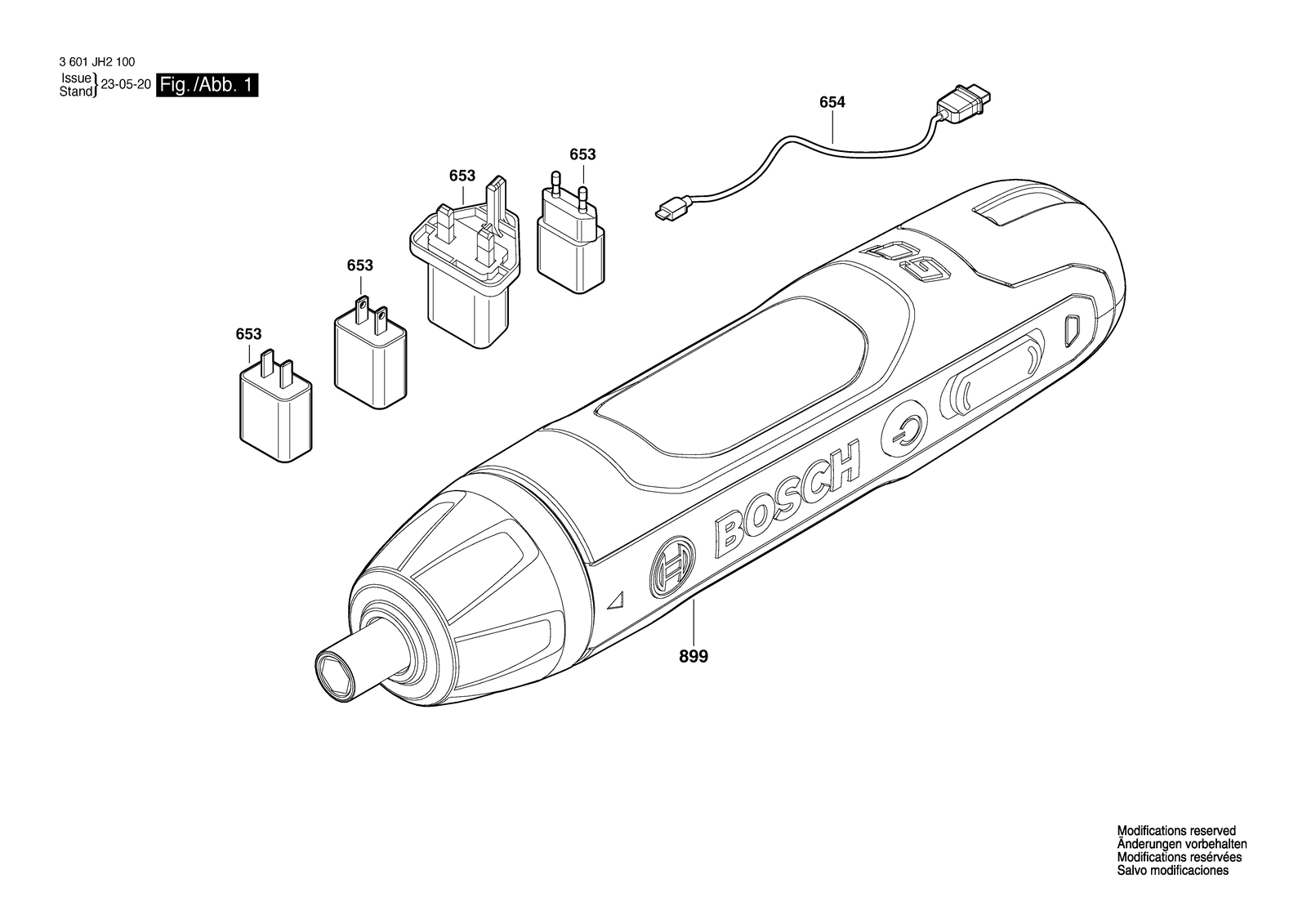

Bosch Bosch GO parts diagram, sheet 1Bosch Bosch GO parts diagram, sheet 2
No.Part numberPart name
116058065W7Housing
116058065W7Housing
101600A01M4BClip
101600A01M4BClip
1011600A01TA7Pan head screw
1012609110991Pan head screw
1011600A01TA7Pan head screw
111600A01RH6Spring
111600A01RH6Spring
21600A01B9GDrive module
21600A01B9GDrive module
2/1160702266WDC motor
2/1160702266WDC motor
2/21600A01M8ZPlanetary Gear Train
2/21600A01M8ZPlanetary Gear Train
2/2/391600A01T91Clutch Ring
2/2/391600A01T91Clutch Ring
516058065Y1Cell Cover
516058065Y1Cell Cover
61600A01B9JCell cluster
61600A01B9JCell cluster
6531600A013A3Charger Taiwan 3,6V
6531607000CH1Charger Asien 230/5V
6532609120713Charger EU 100-240V 5V 1A
6532609120716Charger KR 100-240V 5V 1A
6532609120717Charger AUS 100-240V 5V 1A
6532609120718Charger GB 100-240V 5V 1A
6531600A013A0Charger Argentinien 3,6V
6531600A013A1Charger Mexiko 3,6V
6531600A013A2Charger Brasilien 3,6V
6532609120715Charger J 100-240V 5V 1A
6541607000DN8USB cable USB Type A / Micro USB
6541607000DN8USB cable USB Type A / Micro USB
71600A01C8XChange-Over Switch
71600A01C8XChange-Over Switch
808160111A75ENameplate
808160111A8XWNameplate
8081607000E3SNameplate
808160111A75FNameplate
808160111A7EGNameplate
8991607000E6XCordless Drill Driver
8991607000E6YCordless Screwdriver
8991607000E6XCordless Drill Driver
8991607000E6YCordless Screwdriver
91600A01C7LButton
91600A01C7LButton
