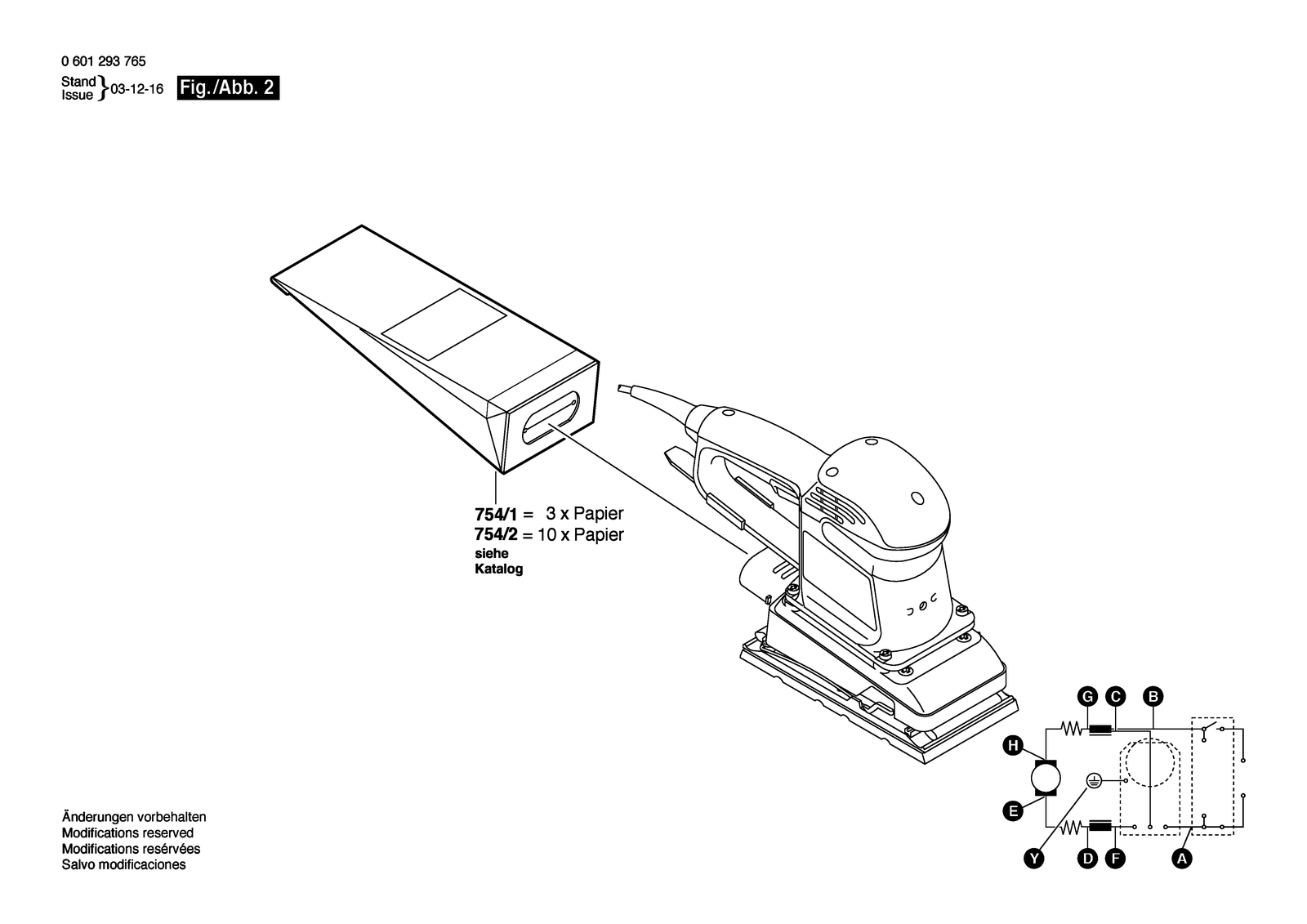

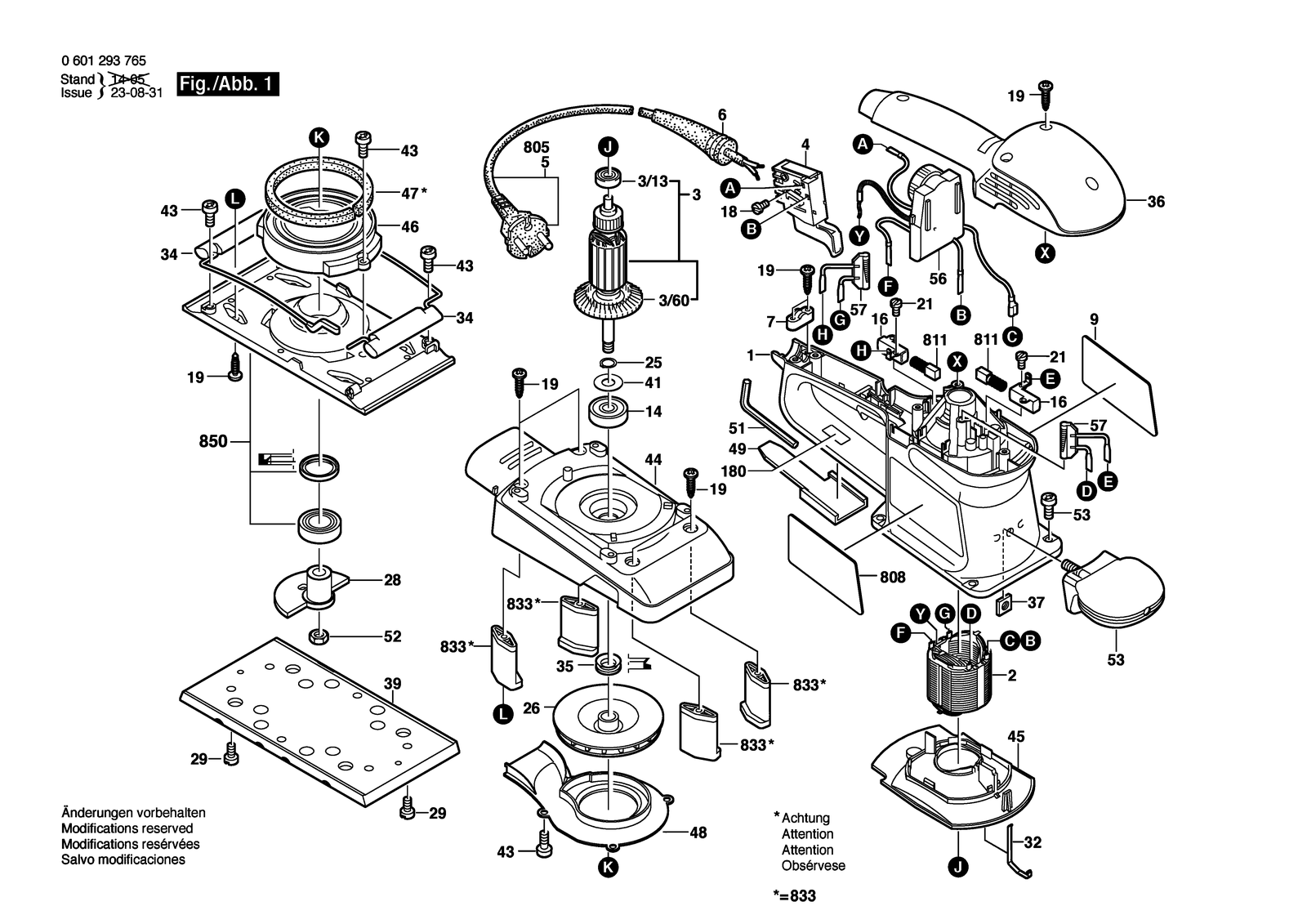

Bosch BOS-280 orbital sander: exploded parts diagram, 2 sheets, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BOS-280: 84 positions on 2 sheets
Bosch BOS-280 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105083 | Motor Housing Blue |
| 1 | 2605105084 | Motor Housing Orange |
| 14 | 1619P00290 | Groove ball bearing |
| 14 | 1619P00290 | Groove ball bearing |
| 16 | 2604337016 | Brush Holder |
| 16 | 2604337016 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220529 | Field 230-240V |
| 2 | 2604220529 | Field 230-240V |
| 21 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 21 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 25 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 25 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 26 | 2606610086 | Fan |
| 26 | 2606610086 | Fan |
| 28 | 2600499042 | Eccentric |
| 28 | 2600499042 | Eccentric |
| 29 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 29 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 3 | 2604011110 | Armature 230-240V |
| 3 | 2604011110 | Armature 230-240V |
| 3/13 | 2600905051 | Groove ball bearing 7X19X6 |
| 3/13 | 2600905051 | Groove ball bearing 7X19X6 |
| 3/60 | 2606610076 | Fan |
| 3/60 | 2606610076 | Fan |
| 32 | 2601329053 | Contact Strap |
| 32 | 2601329053 | Contact Strap |
| 34 | 2608045023 | Tensioning Lever |
| 34 | 2608045023 | Tensioning Lever |
| 35 | 2600290030 | V-Ring |
| 35 | 2600290030 | V-Ring |
| 36 | 2605500182 | Housing Cover Blue |
| 36 | 2605500183 | Housing Cover Orange |
| 37 | 2915121006 | Square Nut DIN 562-M6-04 |
| 37 | 2915121006 | Square Nut DIN 562-M6-04 |
| 39 | 2608000168 | Sander Plate |
| 39 | 2608000168 | Sander Plate |
| 4 | 2607200614 | Switch |
| 4 | 2607200260 | Switch |
| 41 | 2600590013 | Sealing disk |
| 41 | 2600590013 | Sealing disk |
| 43 | 2603435042 | Thread-forming tap. Screw |
| 43 | 2603435042 | Thread-forming tap. Screw |
| 44 | 2600282018 | Suction Hood |
| 44 | 2600282018 | Suction Hood |
| 45 | 2601328055 | Air Guide Plate |
| 45 | 2601328055 | Air Guide Plate |
| 46 | 2601328054 | Suction Socket |
| 46 | 2601328054 | Suction Socket |
| 47 | 2601005017 | Felt Strip |
| 47 | 2601005017 | Felt Strip |
| 48 | 2600034007 | Air-Deflector Ring |
| 48 | 2600034007 | Air-Deflector Ring |
| 49 | 2601035002 | Pusher |
| 49 | 2601035002 | Pusher |
| 5 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 51 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 51 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 52 | 2915051107 | Hex Nut DIN 439-BM8-04 |
| 52 | 2915051107 | Hex Nut DIN 439-BM8-04 |
| 53 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 53 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 56 | 2607230047 | Speed governor 230-240V |
| 56 | 2607230047 | Speed governor 230-240V |
| 57 | 2604465090 | Suppression Filter |
| 57 | 2604465090 | Suppression Filter |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 808 | 2601116791 | Nameplate |
| 808 | 2601116793 | Nameplate |
| 811 | 1607014117 | Carbon Brush |
| 811 | 1607014117 | Carbon Brush |
| 833 | 2608005902 | Spring 4 Piece |
| 833 | 2608005902 | Spring 4 Piece |
| 850 | 2608000928 | Swing-Plate |
| 850 | 2608000928 | Swing-Plate |
| 9 | 2601116790 | Manufacturer's nameplate Bos - 280 |
| 9 | 2601116792 | Manufacturer's nameplate |
