Bosch BOS-140

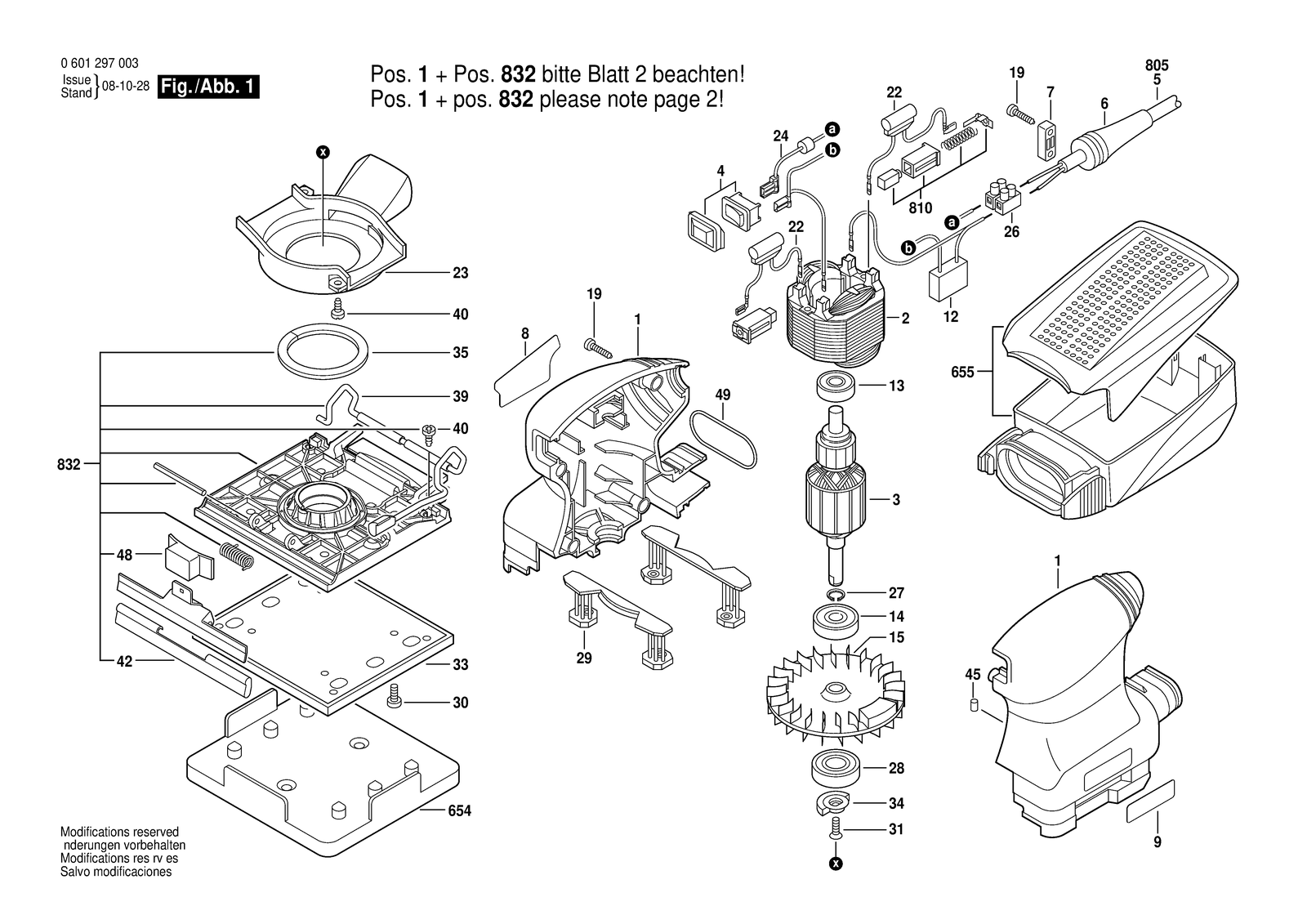

Bosch BOS-140 orbital sander: exploded parts diagram, 1 sheet, 134 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BOS-140: 134 positions on 1 sheet
Bosch BOS-140 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100680 | Housing |
| 1 | 2609100681 | Housing |
| 1 | 2609100682 | Housing |
| 12 | 2610920617 | Suppression Filter |
| 12 | 2610920617 | Suppression Filter |
| 12 | 2610920617 | Suppression Filter |
| 13 | 2610917489 | Ball Bearing |
| 13 | 2610917489 | Ball Bearing |
| 13 | 2610917489 | Ball Bearing |
| 14 | 2610917489 | Ball Bearing |
| 14 | 2610917489 | Ball Bearing |
| 14 | 2610917489 | Ball Bearing |
| 15 | 2610920618 | Fan |
| 15 | 2610920618 | Fan |
| 15 | 2610920618 | Fan |
| 19 | 2610315386 | Screw ST3,9X19 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1604220413 | Field 120V |
| 2 | 2610920607 | Field 100V |
| 2 | 2610920611 | Field 230V |
| 2 | 2609120299 | Stator 230V |
| 2 | 2609120299 | Stator 230V |
| 22 | 2610920619 | Suppression Filter |
| 22 | 2610920619 | Suppression Filter |
| 22 | 2610920619 | Suppression Filter |
| 23 | 2610920620 | Fan Cover |
| 23 | 2610920620 | Fan Cover |
| 23 | 2610920620 | Fan Cover |
| 24 | 2610920621 | Cable |
| 24 | 2610928031 | Cable |
| 24 | 2610928031 | Cable |
| 24 | 2610928031 | Cable |
| 26 | 2610910009 | Connection Block |
| 26 | 2610910009 | Connection Block |
| 26 | 2610910009 | Connection Block |
| 27 | 2916649005 | Spring retaining ring DIN471-8 |
| 27 | 2916649005 | Spring retaining ring DIN471-8 |
| 27 | 2916649005 | Spring retaining ring DIN471-8 |
| 28 | 2609110748 | Ball Bearing |
| 28 | 2609110748 | Ball Bearing |
| 28 | 2609110748 | Ball Bearing |
| 29 | 2610921132 | Vibration Foot |
| 29 | 2610921132 | Vibration Foot |
| 29 | 2610921132 | Vibration Foot |
| 3 | 1604010A31 | Armature 120V |
| 3 | 2610920606 | Armature 100V |
| 3 | 2610920610 | Armature 230V |
| 3 | 1604010A29 | Armature 230V |
| 3 | 1604010A29 | Armature 230V |
| 30 | 2610915161 | Screw |
| 30 | 2610915161 | Screw |
| 30 | 2610915161 | Screw |
| 31 | 2610991395 | Screw |
| 31 | 2610991395 | Screw |
| 31 | 2610991395 | Screw |
| 33 | 2610920631 | Foam Panel |
| 33 | 2610924724 | Foam Panel |
| 33 | 2610920631 | Foam Panel |
| 33 | 2610920631 | Foam Panel |
| 34 | 2610920634 | Counterweight |
| 34 | 2610920634 | Counterweight |
| 34 | 2610920634 | Counterweight |
| 35 | 2610920635 | Felt |
| 35 | 2610920635 | Felt |
| 35 | 2610920635 | Felt |
| 39 | 2610925983 | Clamp Handle |
| 39 | 2609110693 | Clamping Saddle |
| 39 | 2610925983 | Clamp Handle |
| 4 | 1607200190 | Switch |
| 4 | 2609120255 | Switch |
| 4 | 1607200190 | Switch |
| 40 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 40 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 40 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 42 | 2609101232 | Rubber Bar |
| 42 | 2609101232 | Rubber Bar |
| 42 | 2609101232 | Rubber Bar |
| 45 | 2610350103 | Pin |
| 45 | 2610350103 | Pin |
| 45 | 2610350103 | Pin |
| 48 | 2610920651 | Push Button |
| 48 | 2609100563 | Push-Button |
| 48 | 2610920651 | Push Button |
| 49 | 2610920652 | O-Ring |
| 49 | 2610920652 | O-Ring |
| 49 | 2610920652 | O-Ring |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460185 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460224 | Power supply cord CN 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460400 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460141 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460227 | Power supply cord SAM 2,65M 2 X 082MM SJ 18/2 |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 654 | 2610920650 | Punching Tool |
| 654 | 2610920650 | Punching Tool |
| 654 | 2610920650 | Punching Tool |
| 655 | 2609199193 | Dust container |
| 655 | 2609199103 | Dust container |
| 655 | 2609199103 | Dust container |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 8 | 2610921049 | Nameplate |
| 8 | 2610921677 | Nameplate |
| 8 | 2610921678 | Nameplate |
| 8 | 2610921679 | Nameplate |
| 8 | 2610921680 | Nameplate |
| 8 | 2610921681 | Nameplate |
| 8 | 2610921682 | Nameplate |
| 8 | 2610921683 | Nameplate |
| 8 | 2610921686 | Nameplate |
| 8 | 2610924282 | Nameplate |
| 8 | 2609130883 | Nameplate |
| 8 | 2609130884 | Nameplate |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 810 | 2609120199 | Carbon-Brush Set |
| 810 | 2610924701 | Carbon-Brush Set |
| 810 | 2610924701 | Carbon-Brush Set |
| 810 | 2610924701 | Carbon-Brush Set |
| 832 | 2609100684 | Swing-Plate |
| 832 | 2609100685 | Swing-Plate |
| 832 | 2609100684 | Swing-Plate |
| 9 | 2610921050 | Reference Plate |
| 9 | 2609130885 | Manufacturer's nameplate |
| 9 | 2609130886 | Manufacturer's nameplate |
