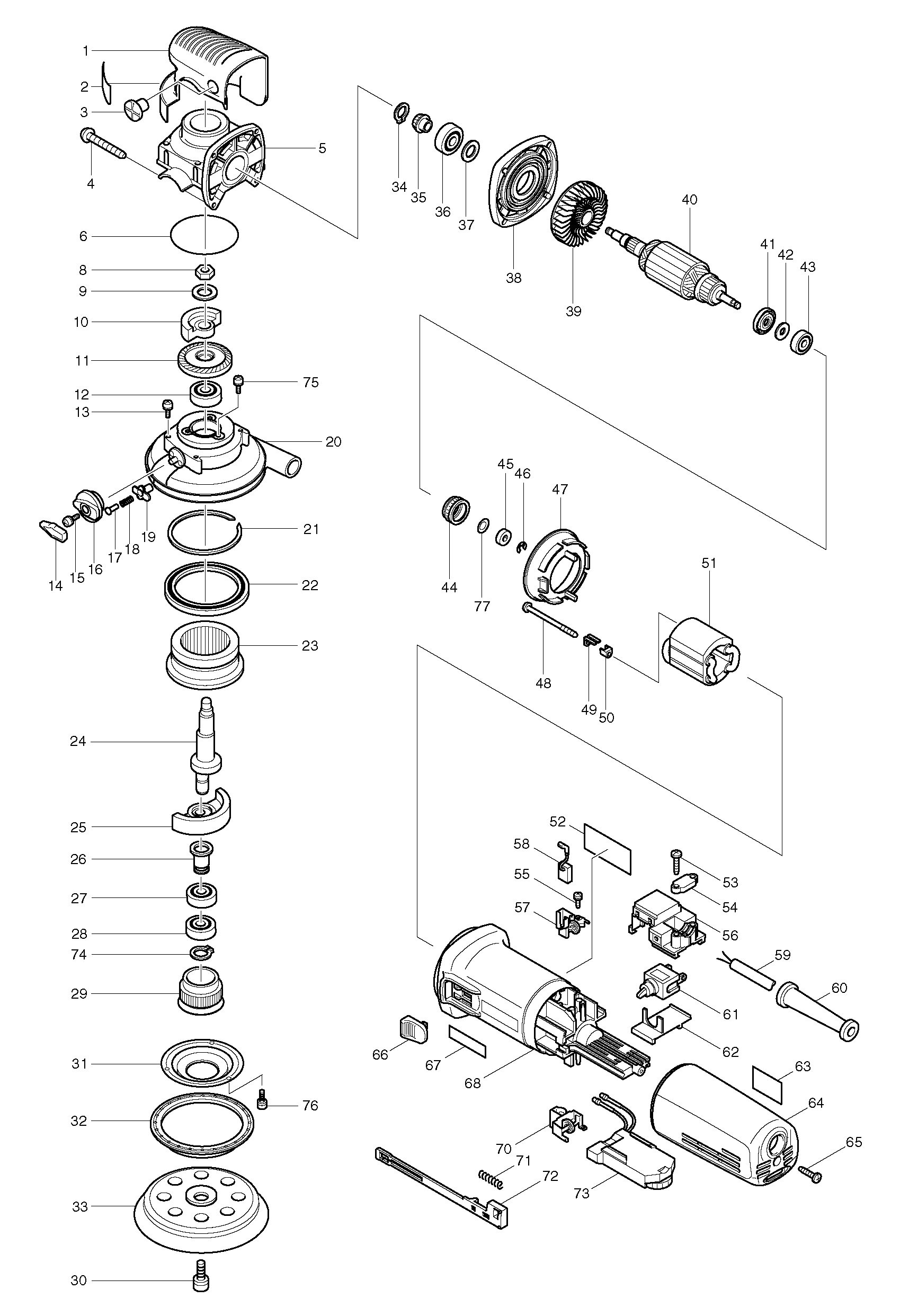

Sheet 1: Makita BO6040 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 417371-2 | Makita 417371-2 HEAD COVER |
| 2 | 816367-4 | |
| 3 | 265083-9 | Makita 265083-9 FLAT HEAD SCREW M8X11 |
| 4 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 5 | 152671-0 | Makita 152671-0 GEAR HOUSING COMPLETE, BO6040 |
| 6 | 213724-1 | Makita 213724-1 O RING 62 |
| 8 | 931503-2 | Makita 931503-2 HEX. NUT M10 |
| 9 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 10 | 324071-6 | Makita 324071-6 UPPER BALANCE WEIGHT |
| 11 | 152674-4 | Makita 152674-4 SPIRAL BEVEL GEAR 42 COMP LETE |
| 12 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 13 | 911126-2 | Makita 911126-2 PAN HEAD SCREW M4X16, 5900B |
| 14 | 417373-8 | Makita 417373-8 CAP |
| 15 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 16 | 152672-8 | Makita 152672-8 KNOB COMPLETE FOR BO6040 |
| 17 | 417382-7 | Makita 417382-7 SPRING HOLDER |
| 18 | 231230-4 | Makita 231230-4 COMPRESSION SPRING 4 |
| 19 | 162219-0 | Makita 162219-0 HOLDER |
| 20 | 152795-2 | Makita 152795-2 SKIRT COMPLETE BO6040 |
| 21 | 257933-2 | Makita 257933-2 STOP RING (EXT) WR-55 |
| 22 | 211654-0 | Makita 211654-0 BALL BEARING 6811LLB |
| 23 | 227008-1 | Makita 227008-1 29 Internal Gear |
| 24 | 324069-3 | Makita 324069-3 SPINDLE |
| 25 | 324072-4 | Makita 324072-4 LOWER BALANCE WEIGHT |
| 26 | 324070-8 | Makita 324070-8 SLEEVE |
| 27 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 28 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 29 | 152760-1 | Makita 152760-1 SPUR GEAR 26 COMPLETE |
| 30 | 266270-3 | Makita 266270-3 HEX.SOCKET HEAD BOLT M8X1 |
| 31 | 152761-9 | Makita 152761-9 BEARING RETAINER 80 COMPL ETE |
| 32 | 421763-9 | Makita 421763-9 RUBBER GUARD |
| 33 | 743063-0 | Makita 743063-0 PAD 150 BO6040 |
| 34 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 35 | 227402-7 | Makita 227402-7 SPIRAL BEVEL GEAR 9 |
| 36 | 211142-7 | Makita 211142-7 BALL BEARING 6001LLB |
| 37 | 253084-9 | Makita 253084-9 FLAT WASHER 12, HR4002 |
| 38 | 317359-1 | Makita 317359-1 GEAR HOUSING COVER |
| 39 | 240033-5 | Makita 240033-5 FAN 57 |
| 40 | 515203-8 | Makita 515203-8 ARMATURE ASS'Y 220-240V |
| 41 | 681656-4 | Makita 681656-4 INSULATION WASHER |
| 42 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 43 | 210027-4 | Makita 210027-4 BALL BEARING 627DDW |
| 44 | 421738-8 | Makita 421738-8 LABYRINTH RUBBER RING 22 |
| 45 | 688117-5 | Makita 688117-5 Magnet Sleeve for GD0800C GDO810C |
| 46 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 47 | 413076-2 | Makita 413076-2 BAFFLE PLATE |
| 48 | 266274-5 | Makita 266274-5 TAPPING SCREW 4X55 |
| 49 | 344871-8 | Makita 344871-8 RETAINER, HR2230 |
| 50 | 417237-6 | Makita 417237-6 INSULATION COVER, MT814 |
| 51 | 626533-3 | Makita 626533-3 FIELD 220-240V, BO6040 |
| 52 | 852515-1 | |
| 53 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 54 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 55 | 266256-7 | Makita 266256-7 TAPPING SCREW PT3X10 |
| 56 | 632945-0 | Makita 632945-0 SWITCH BLOCK |
| 57 | 643760-7 | Makita 643760-7 BRUSH HOLDER, 9553NB |
| 58 | 191978-9 | Makita 191978-9 Carbon Brushes CB-318 for BO6040 GD0800C PW5000 |
| 59 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 60 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 61 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 62 | 687113-0 | Makita 687113-0 COVER |
| 63 | 816364-0 | |
| 64 | 417185-9 | Makita 417185-9 REAR COVER GD0800C |
| 65 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 66 | 417188-3 | Makita 417188-3 SWITCH KNOB |
| 67 | 819720-3 | Makita 819720-3 MAKITA LABEL |
| 68 | 417184-1 | Makita 417184-1 MOTOR HOUSING |
| 70 | 643974-8 | Makita 643974-8 BRUSH HOLDER |
| 71 | 233071-4 | Makita 233071-4 COMPRESSION SPRING 4 |
| 72 | 417187-5 | Makita 417187-5 SWITCH LEVER GD0800C |
| 73 | 631391-4 | Makita 631391-4 Controller 240v for GD0800C GD0810C BO6040 |
| 74 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 75 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 76 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 77 | 267756-0 | Makita 267756-0 WAVE WASHER 6 |
